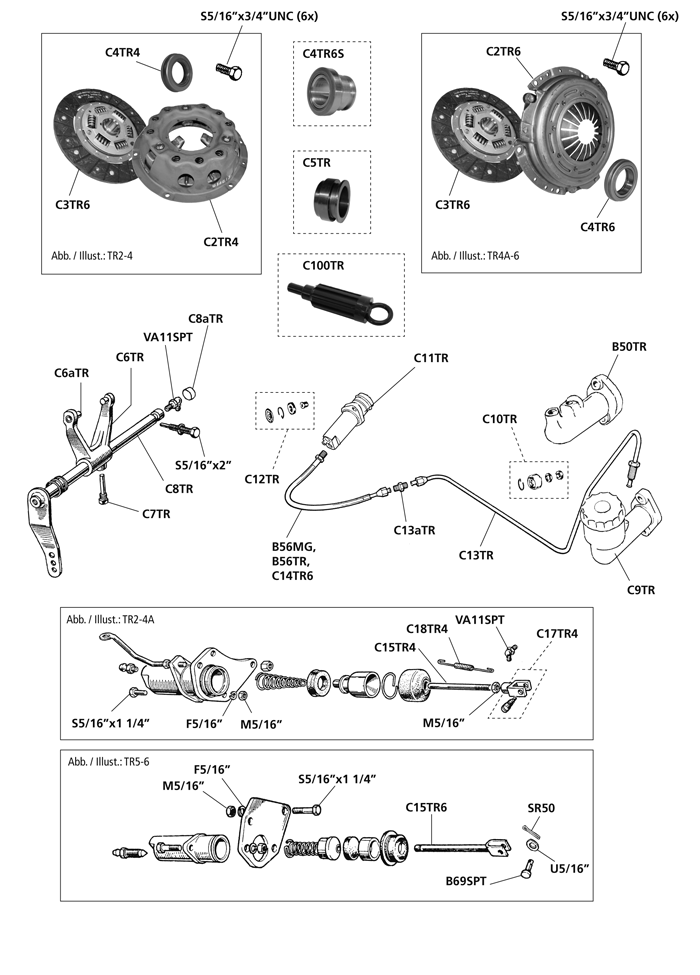

clutch assembly TR2 -6  |
 |
| C1TR4 |
clutch kit includes C2, C3 u. C4 (TR2-4)
required quantities: 1
|
| C1TR6 |
clutch kit includes C2,C3 u. C4 (TR4A-6)
required quantities: 1
|
| C2TR4 |
clutch cover assembly (TR2-4)
required quantities: 1
|
| C2TR6 |
Clutch cver assembly (TR4A-6)
required quantities: 1
|
| C3TR6 |
clutch disc (TR4A-6)
required quantities: 1
|
| C4TR4 |
release bearing (TR2-4)
required quantities: 1
|
| C4TR6 |
release bearing (TR4A-6)
required quantities: 1
|
| C4TR6S |
release bearing nad sleeve, reinforced (TR4A-6)
required quantities: 1
|
| C5TR4 |
sleeve release bearing carrier (TR2-4)
required quantities: 1
|
| C5TR6 |
sleeve release bearing carrier (TR4A-6)
required quantities: 1
|
| C6TR |
release fork assembly (TR2-6)
required quantities: 1
|
| C6aTR |
pin pivot release fork to sleeve (TR2-6)
required quantities: 2
|
| C7TR |
pin release fork to cross shaft (TR2-6)
required quantities: 1
|
| C8TR4 |
crossshaft and lever assembly (TR2-4)
required quantities: 1
|
| C8TR6 |
crossshaft and lever assembly (TR4A-6)
required quantities: 1
|
| C8aTR |
bush clutch operating shaft
required quantities: 2
|
| C8bTR3L |
bush, cross shaft gearbox casing LH (TR3)
required quantities: 1
|
| C8bTR3R |
bush, cross shaft gearbox casing RH (TR3)
required quantities: 1
|
| C9TR4 |
mastercylinder (TR4-4A)
required quantities: 1
|
| C9TR6 |
clutch master cylinder (TR5-6)
required quantities: 1
|
| C10TR |
repair set master cylinder (TR3 from TS13046, TR4/4A)
required quantities: 1
|
| VA11SPT |
grease nipple 1/4”
required quantities: 1
|
| C11TR2 |
Clutch slave cylinder (TR2 < TS13045)
required quantities: 1
|
| C11TR4 |
Clutch slave cylinder ( TR2-4A from TS13046on)
required quantities: 1
|
| C11TR6 |
slave cylinder (TR5-6)
required quantities: 1
|
| C12TR4 |
repair kit, slave cylinder (TR2-4A from TS13046 on)
required quantities: 1
|
| C12TR6 |
repair kit, slave cylinder (TR5-6)
required quantities: 1
|
| C13TR3 |
clutch pipe (TR2-3 from TS13046)
required quantities: 1
|
| C13TR4 |
clutch pipe (TR4-4A)
required quantities: 1
|
| C13TR6 |
clutch pipe (TR5-6)
required quantities: 1
|
| C13aTR6 |
connector pipe to hose (TR5-6)
required quantities: 1
|
| C14TR6 |
clutch hose pipe (TR5-6)
required quantities: 1
|
| C15TR4 |
push rod slave cylinder
required quantities: 1
|
| C15TR6 |
push rod , slave cylinder (TR5-6)
required quantities: 1
|
| C17TR4 |
bracket, pushrod
required quantities: 1
|
| C18TR4 |
return spring
required quantities: 1
|
| B50TR |
master cylinder (TR3 from TS13046)
required quantities: 1
|
| SR50 |
split pin 1,5 mm
required quantities: 1
|
| B56MG |
Clutch slave hose rubber
required quantities: 1
|
| B56TR |
brake hose (TR3 ab TS13046/TR4)
required quantities: 1
|
| B56TRAQ |
brake hose stainless steel braided (TR3 > TS13046/TR4)- with TÜV-approval
required quantities: 1
|
| B69SPT |
bolt
required quantities: 1
|
| C100TR |
Tool clutch alignment
required quantities: 1
|
| BR05 |
brake Fluid 0,5l
required quantities: A/R
|
| BR-Si05 |
Silicone break fluid 0,5 liter *
required quantities: A/R
|
| BR-Si1 |
Silicone brake fluid 1 liter *
required quantities: A/R
|
