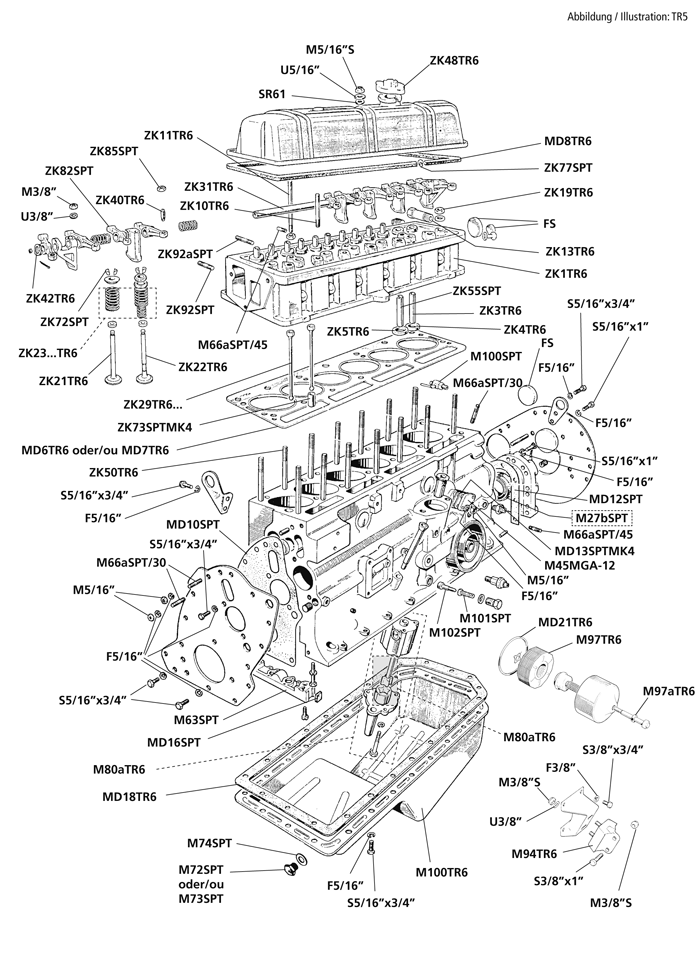

engine parts TR5-6 |
 |
| M0TR6 |
exchange engine with cylinderhead, lead-free(TR5, TR250, TR6)
required quantities: 1
|
| M0aTR6 |
high perofrmance exchange engine,carburettor models tuned to PI power
required quantities: 1
|
| M1TR5 |
exchange crankshaft (TR5-6 -- CP/CC 50000)
required quantities: 1
|
| M1TR6 |
exchange crankshaft (TR6 from CP/CC 50001)
required quantities: 1
|
| M2TR6/STD |
main bearing set std
required quantities: 1
|
| M2TR6/10 |
main bearing set 0.10
required quantities: 1
|
| M2TR6/20 |
main bearing set 0.20
required quantities: 1
|
| M2TR6/30 |
main bearing set 0.30
required quantities: 1
|
| M2TR6/40 |
main bearing set 0.40
required quantities: 1
|
| M2TR6/60 |
main bearing set 0.60
required quantities: 1
|
| M3SPTMK4/STD |
thrust washer std
required quantities: 1
|
| M3SPTMK4/05 |
thrust washer 0.05
required quantities: 1
|
| M3SPTMK4/10 |
thrust washer 0.10
required quantities: 1
|
| M3SPTMK4/15 |
thrust washer 0.15
required quantities: 1
|
| M3SPTMK4/30 |
thrust washer 0.30
required quantities: 1
|
| M4TR6 |
sprocket crankshaft
required quantities: 1
|
| M5TR6 |
washer sprocket crankshaft
required quantities: A/R
|
| M7TR6 |
key crankshaft
required quantities: 1
|
| M8TR6 |
oil thrower
required quantities: 1
|
| M9TR6 |
washer front seal
required quantities: 1
|
| M10TR6 |
pulley & damper assembly
required quantities: 1
|
| MD11SPT |
gasket timing chain cover
required quantities: 1
|
| M12SPT |
starter gear
required quantities: 1
|
| M14SPT |
centering flywheel
required quantities: 1
|
| M14TR4 |
bush gunmetal in crankshaft (long version) until CP/CC50000
required quantities: 1
|
| M14TR6 |
bush gunmetal in crankshaft ( engines CP/CC50001, all CF,CR
required quantities: 1
|
| M15SPTMK4 |
bolt flywheel
required quantities: 4
|
| M15TR6 |
fan (8 wings)
required quantities: 1
|
| M17TR |
rubber bush, fan
required quantities: 8
|
| M18TR |
steel bush, fan
required quantities: 4
|
| M19SPT |
lock tab camshaft
required quantities: 1
|
| M24SPT |
lock tab camshaft
required quantities: 1
|
| M27TR6 |
camshaft new
required quantities: 1
|
| M27aTR6 |
camshaft exchange, carburettor models
required quantities: 1
|
| M27aTR6Pi |
camshaft PI-models
required quantities: 1
|
| M27aSPTMK4 |
front engine seal
required quantities: 1
|
| M27bTR6 |
camshaft bearing set
required quantities: 1
|
| M27bSPT |
seal rear (see picture cylinderhead)
required quantities: 1
|
| M29TR6 |
camshaft gear
required quantities: 1
|
| M30TR6 |
timing chain
required quantities: 1
|
| M37TR6 |
timing chain tensioner
required quantities: 1
|
| M40SPTMK4 |
conrod - 2nd hand - reconditioned
required quantities: 6
|
| M41SPT |
bush conrod
required quantities: 12
|
| M43SPT |
con rod bolt
required quantities: 12
|
| M51TR6/STD |
con rod, bearing set , std
required quantities: 1
|
| M51TR6/10 |
con rod, bearing set , oversize +0.10"
required quantities: 1
|
| M51TR6/20 |
con rod, bearing set , oversize +0.20"
required quantities: 1
|
| M51TR6/30 |
con rod, bearing set , oversize +0.30"
required quantities: 1
|
| M51TR6/40 |
con rod, bearing set , oversize +0.40"
required quantities: 1
|
| M51TR6/50 |
con rod, bearing set , oversize +0.50"
required quantities: 1
|
| M51TR6/60 |
con rod, bearing set , oversize +0.60"
required quantities: 1
|
| M52TR6/STD |
piston set (6) (STD)
required quantities: 1
|
| M52TR6/20 |
piston set (6) (0.20)
required quantities: 1
|
| M52TR6/30 |
piston set (6) (0.30)
required quantities: 1
|
| M52TR6/40 |
piston set (6) (0.40)
required quantities: 1
|
| M52TR6/60 |
piston set (6) (0.60)
required quantities: 1
|
| M53TR6/STD |
piston ring set for 6 pistons std
required quantities: 1
|
| M53TR6/20 |
piston ring set for 6 pistons 0.20
required quantities: 1
|
| M53TR6/30 |
piston ring set for 6 pistons 0.30
required quantities: 1
|
| M53TR6/40 |
piston ring set for 6 pistons 0.40
required quantities: 1
|
| M53TR6/60 |
piston ring set for 6 pistons 0.60
required quantities: 1
|
| M66TR6 |
seal metering unit (TR6 PI)
required quantities: 2
|
| M70SPTMK4 |
fan belt
required quantities: 1
|
| MÖ/5L |
Motor oil 20W50, 5 liter container
required quantities: 1
|
| MÖRACE |
Motor oil, VALVOLINE “Racing” 20W50, per liter (5 liter container)
required quantities: 5
|
| MD8TR6 |
gasket rocker cover
required quantities: 1
|
| MD10SPT |
gasket engine mounting plate
required quantities: 1
|
| MD12SPT |
gasket, seal housing
required quantities: 1
|
| MD13SPTMK4 |
gasket
required quantities: 1
|
| MD16SPT |
side gasket alloy block
required quantities: 2
|
| MD18TR6 |
gasket, oil sump
required quantities: 1
|
| M27bSPT |
seal,engine rear
required quantities: 1
|
| M45MGA-12 |
Blanking plate petrol pump
required quantities: 1
|
| M63SPT |
alloy seal block (front)
required quantities: 1
|
| M66aSPT/30 |
stud 5/16” x 1 1/4”
required quantities: A/R
|
| M66aSPT/45 |
stud 5/16"x1 3/4”
required quantities: A/R
|
| M72SPT |
plug oil drain
required quantities: 1
|
| M73SPT |
plug oil drain magnetic
required quantities: 1
|
| M74SPT |
cupper gasket oildrain plug
required quantities: 1
|
| M80aTR6 |
oilpump reinforced
required quantities: 1
|
| M80bTR6 |
repair kit alloy oil pump
required quantities: 1
|
| M94TR6 |
rubber engine mounting
required quantities: 2
|
| M97TR6 |
oil filter
required quantities: 1
|
| M97aTR6 |
seal, rubber, under head of bolt
required quantities: 1
|
| M100TR6 |
alloy sump
required quantities: 1
|
| M100SPT |
screw water drain , replaces, drain cock
required quantities: 1
|
| M101SPT |
oil pressure spring
required quantities: 1
|
| M102SPT |
oil pressure valve
required quantities: 1
|
| |
cylinder head TR 5-6 |
 |
| ZK1TR6 |
exchange cylinderhead , with valves, lead free
required quantities: 1
|
| ZK3TR6 |
valve guide
required quantities: 6
|
| ZK4TR6 |
insert valve seat exhaust valve
required quantities: 6
|
| ZK5TR6 |
insert valve seat exhaust valve
required quantities: 6
|
| ZK10TR6 |
stud rocker shaft
required quantities: 6
|
| ZK11TR6 |
stud rocker cover
required quantities: 3
|
| ZK13TR6 |
stud water valve (TR250-6)
required quantities: 1
|
| ZK19TR6 |
nut cylinderhead OE: AEC139 order 103810
required quantities: 14
|
| ZK21TR6 |
inlet valve
required quantities: 6
|
| ZK22TR630.3 |
exhaust valve 30.3 (please tell us diameter)
required quantities: 6
|
| ZK22TR631.9 |
exhaust valve 31.9 (please tell us diameter)
required quantities: 6
|
| ZK23aTR6 |
valve spring set , single
required quantities: 1
|
| ZK23bTR6 |
valve spring set, double, early models (long inner spring)
required quantities: 1
|
| ZK23cTR6V |
valve spring set, double, late models (short inner spring)
required quantities: 1
|
| ZK29TR6Pi |
push rod PI (length 207mm)
required quantities: 12
|
| ZK29TR6V |
push rod carburettor models ( length 210mm)
required quantities: 12
|
| ZK31TR6 |
rocker shaft original
required quantities: 1
|
| ZK35TR6 |
Pipe set additional rocker shafts lubrication
required quantities: 1
|
| ZK40TR6 |
adjustment screw, rocker arm
required quantities: 12
|
| ZK42TR6 |
spring rocker shaft outer
required quantities: 2
|
| ZK48TR6 |
oil filler cap (TR4A)
required quantities: 1
|
| ZK50TR6 |
stud cylinder head
required quantities: 14
|
| ZK55SPT |
valve guide inlet and outlet (inner diameter 7,9mm)
required quantities: 6
|
| ZK72SPT |
key, valve
required quantities: 12
|
| ZK73SPTMK4 |
cam follower
required quantities: 12
|
| ZK77SPT |
screw rocker shaft
required quantities: 1
|
| ZK82SPTL |
rocker LH
required quantities: 6
|
| ZK82SPTR |
rocker RH
required quantities: 6
|
| ZK91SPT |
clamp manifold large (without picture)
required quantities: 6
|
| ZK91aSPT |
clamp manifold small ( without picture)
required quantities: 2
|
| ZK92SPT |
stud manifold, short 3/8"
required quantities: 4
|
| ZK92aSPT |
stud manifold, long 3/8"
required quantities: 6
|
| FS26 |
core plug Ø 26
required quantities: A/R
|
| FS38 |
core plug Ø 38
required quantities: A/R
|
| FS42 |
core plug Ø 42
required quantities: A/R
|
| FS51 |
core plug Ø 51
required quantities: A/R
|
| FS100TR6 |
core plug set
required quantities: 1
|
