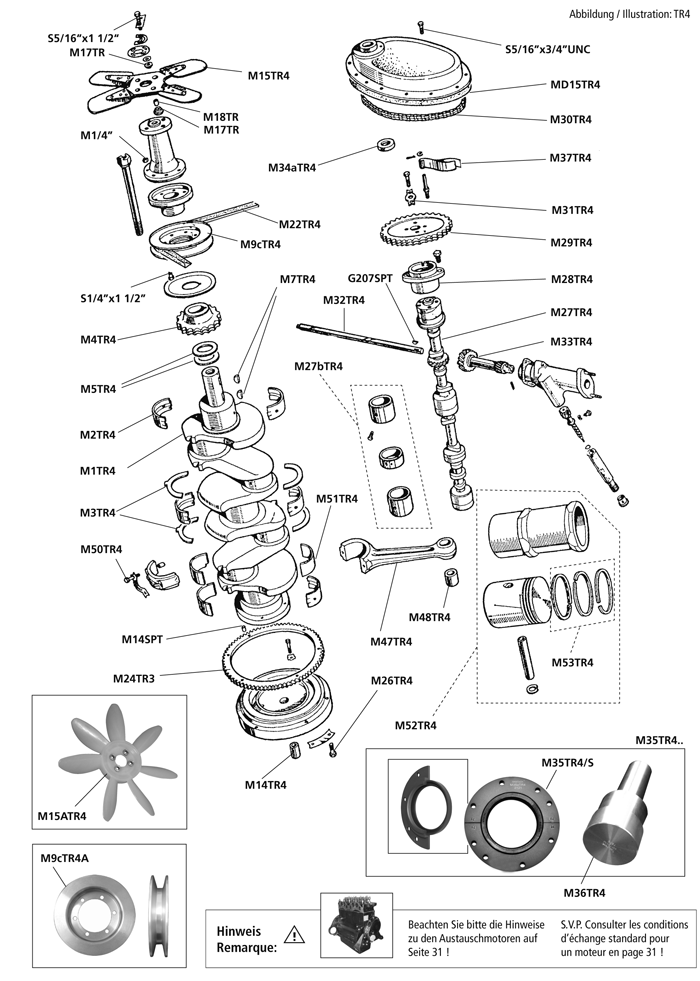

engine parts TR2-4A |
 |
| M0TR4 |
rebuild engine, with cylinder head, lead-free (use M0aTR4)
required quantities: 1
|
| M0aTR4 |
rebuild engine, with cylinder head, lead-free, modified to rear seal
required quantities: 1
|
| M1TR4 |
exchange crankshaft
required quantities: 1
|
| M2TR4/std |
main bearing set std.
required quantities: 1
|
| M2TR4/10 |
main bearing set +0.10
required quantities: 1
|
| M2TR4/20 |
main bearing set +0.20
required quantities: 1
|
| M2TR4/30 |
main bearing set +0.30
required quantities: 1
|
| M2TR4/40 |
main bearing set +0.40
required quantities: 1
|
| M2TR4/60 |
main bearing set +0.60
required quantities: 1
|
| M2TR4/50 |
main bearing set +0.50
required quantities: 1
|
| M3TR4/STD |
thrust washer set std.
required quantities: 1
|
| M3TR4/05 |
thrust washer set 0.05
required quantities: 1
|
| M4TR4 |
sprocket crankshaft
required quantities: 1
|
| M5TR4 |
washer sprocket crankshaft
required quantities: 1
|
| M7TR4 |
key crankshaft
required quantities: 1
|
| M9aTR4A |
pulley alloy, small belt
required quantities: 1
|
| M9cTR4 |
pulley alloy, original belt
required quantities: 1
|
| M14SPT |
centering pin flywheel
required quantities: 1
|
| M14TR4 |
gunmetal bush
required quantities: 1
|
| MD15TR4 |
gasket timing chain cover
required quantities: 1
|
| M15TR4 |
fan
required quantities: 1
|
| M15aTR4 |
high performance fan replace M15TR4
required quantities: 1
|
| M17TR |
rubber bush fan
required quantities: 8
|
| M18TR |
steel bush fan
required quantities: 4
|
| M22TR4 |
fan belt
required quantities: 1
|
| M22aTR4R |
small V-belt for conversion kit M90TR4R/70
required quantities: 1
|
| M24TR3 |
starter gear ring for shrinking (TR2-3 until TS 50.000)
required quantities: 1
|
| M24TR4 |
starter gear ring screwed (TR3 fom TS 50.001 - TR4A)
required quantities: 1
|
| M26TR4 |
flywheel screw
required quantities: 4
|
| M27TR4 |
camshaft new
required quantities: 1
|
| M27bTR4 |
camshaft bearing set
required quantities: 1
|
| M27cTR4 |
block camshaft (picture / engine parts)
required quantities: 1
|
| M28TR4 |
front camshaft bearing
required quantities: 1
|
| M29TR4 |
camshaft gear
required quantities: 1
|
| M30TR4 |
timing chain
required quantities: 1
|
| M31TR4 |
lock tab camshaft
required quantities: 1
|
| M32TR4 |
drive shaft Oil pump / disributer (TR2-4A)
required quantities: 1
|
| M33TR4 |
Distributor drive pinion
required quantities: 1
|
| M34aTR4 |
seal front
required quantities: 1
|
| M34bTR4 |
seal M34cTR4
required quantities: 1
|
| M34cTR4 |
conversion kit to rear seal ( the crankshaft needs to be machined)
required quantities: 1
|
| M35TR4 |
Conversion kit to shaft seal incl. Centring pin Without crankshaft machining)
required quantities: 1
|
| M35TR4/S |
conversion kit to shaft seal (Without crankshaft machining)
required quantities: 1
|
| M36TR4 |
Centring pin for recirculation housing (aluminium)
required quantities: 1
|
| M37TR4 |
timing chain tensioner
required quantities: 1
|
| M47TR4 |
conrod - 2nd hand - reconditioned
required quantities: 4
|
| M48TR4 |
conrod bush
required quantities: 4
|
| M50TR4 |
con rod bolt
required quantities: 8
|
| M51TR4/STD |
big end bearing set std
required quantities: 1
|
| M51TR4/10 |
big end bearing set +0.10
required quantities: 1
|
| M51TR4/20 |
big end bearing set +0.20
required quantities: 1
|
| M51TR4/30 |
big end bearing set +0.30
required quantities: 1
|
| M51TR4/40 |
big end bearing set +0.40
required quantities: 1
|
| M51TR4/50 |
big end bearing set +0.50
required quantities: 1
|
| M51TR4/60 |
big end bearing set +0.60
required quantities: 1
|
| M52aTR4Z-83 |
piston and liner set, 83 mm
required quantities: 1
|
| M52aTR4Z-89 |
piston and liner set, 89 mm
required quantities: 1
|
| M52aTR4Z |
piston and liner set 86mm
required quantities: 1
|
| M52bTR4Z |
piston and liner set 87mm
required quantities: 1
|
| M52CTR4Z |
piston and liner set (87,5 mm)
required quantities: 1
|
| M53TR4/86 |
piston ring set (86mm)
required quantities: 1
|
| M53TR4/87 |
piston ring set (87mm)
required quantities: 1
|
| G207SPT |
pin
required quantities: 1
|
| MÖ/5L |
Motor oil 20W50, 5 liter container
required quantities: 1
|
| MÖRACE |
Motor oil, VALVOLINE “Racing” 20W50, per liter (5 liter container)
required quantities: 5
|
| MD18TR4 |
gasket oil sump to block
required quantities: 1
|
| MD20TR4 |
side gasket alloy block
required quantities: 2
|
| K40TR4 |
Water tap engine drain (TR2-4A)
required quantities: 1
|
| M72SPT |
plug oil drain
required quantities: 1
|
| M73SPT |
plug oil drain magnetic
required quantities: 1
|
| M74SPT |
cupper washer oil drain plug
required quantities: 1
|
| M75SPT |
diaphragm breather valve (w/o picture)
required quantities: 1
|
| M80aTR4 |
oil pump
required quantities: 1
|
| M80bTR4 |
spindle and rotor oil pump
required quantities: 1
|
| M80cTR4 |
net oilpump
required quantities: 1
|
| M90TR4 |
oil seal assemly ( two parts)
required quantities: 1
|
| M94TR3 |
rubber engine mounting (TR2-3)
required quantities: 2
|
| M94TR4 |
rubber engine mounting (TR4)
required quantities: 2
|
| M94TR2000 |
rubber engine mounting (TR2000/2500) OE: 124734
required quantities: 2
|
| M97TR4 |
oil filter (TR2-4A)
required quantities: 1
|
| M100SPT |
water drain plug , (replaces drain cock)
required quantities: 1
|
| M105TR4 |
connector to oil pressure gauche
required quantities: 1
|
| M100TR4 |
alloy sump
required quantities: 1
|
| S5/16”x3/4”UNC |
bolt, timing chain cover
required quantities: A/R
|
| |
cylinder head Zylinderkopf TR 2-4A |
 |
| ZK1TR4NEU |
cylinder head new , with valves
required quantities: 1
|
| ZK1TR4ALU |
cylinder head new, alloy with valves
required quantities: 1
|
| ZK1TR2 |
exchange engine (TR2 low port) , lead free
required quantities: 1
|
| ZK1TR4 |
exchange engine (TR3-4), leadfree
required quantities: 1
|
| ZK3TR4 |
valve guide exhaust,
required quantities: 4
|
| ZK4TR4 |
insert seat exhaust valve
required quantities: 4
|
| ZK5TR4 |
insert seat inlet valve
required quantities: 4
|
| MD6TR4 |
cylinder head gasket
required quantities: 1
|
| MD8TR4 |
rocker cover gasket (TR2-4)
required quantities: 1
|
| ZK10TR4 |
nut rocker cover retaining
required quantities: 4
|
| ZK11TR4 |
stud rocker cover TR2-4A
required quantities: 2
|
| ZK17TR4/62 |
stud rocker cover (62 mm)
required quantities: 6
|
| ZK17TR4/38 |
stud rocker cover (38 mm)
required quantities: 4
|
| ZK17VO/50 |
Dowel pin, length 50 mm
required quantities: 2
|
| ZK19TR4 |
cylinder head nut
required quantities: 10
|
| ZK21TR4 |
inlet valve
required quantities: 4
|
| ZK22TR4 |
exhaust valve, shaft 7,9mm
required quantities: 4
|
| ZK22aTR4 |
exhaust valve, shaft 9,2mm
required quantities: 4
|
| ZK23cTR4 |
valve spring , double set (spring length: 42mm)
required quantities: 1
|
| ZK23dTR4 |
valve spring , double set (spring length: 56mm)
required quantities: 1
|
| ZK29TR4 |
push rod
required quantities: 8
|
| ZK30TR4 |
cam follower
required quantities: 8
|
| ZK31TR4 |
rocker shaft
required quantities: 1
|
| ZK38TR4L |
rocker arm LH
required quantities: 4
|
| ZK38TR4R |
rocker arm RH
required quantities: 4
|
| ZK38aTR4 |
bush in rocker arm, two needed per rocker arm
required quantities: 16
|
| ZK40TR6 |
adjustment screw, rocker arm
required quantities: 8
|
| ZK48TR3 |
oil filler cap
required quantities: 1
|
| ZK48TR6 |
oil filler cap (TR4A)
required quantities: 1
|
| ZK50aTR4 |
stud cylinder head 5" (length 125 mm)
required quantities: 3
|
| ZK50bTR4 |
stud cylinder head 5 1/2" (140 mm)
required quantities: 3
|
| ZK50cTR4 |
stud cylinder head 9" (230mm)
required quantities: 2
|
| ZK50dTR4 |
stud cylinder head 9 1/2" (240mm)
required quantities: 2
|
| ZK55SPT |
valve guide inlet and outlet (inner diameter 7,9mm)
required quantities: 8
|
| ZK56TR4 |
core plug cylinder head
required quantities: 1
|
| ZK72SPT |
key, valve
required quantities: 16
|
| ZK74TR4 |
Valve cup TR2-4 33,2 mm
required quantities: 8
|
| ZK74TR4A |
Valve cup TR4A 31,0 mm
required quantities: 8
|
| ZK77TR4 |
screw rockershaft
required quantities: 1
|
| ZK85SPT |
nut - valve adjustment screw
required quantities: 8
|
| ZK91TR4 |
clamp manifold large ( without picture)
required quantities: 2
|
| ZK91SPT |
clamp manifold large (without picture)
required quantities: 4
|
