Zavěšení přední


Obj. číslo Popis Ilustrace
klikněte pro zvětšení

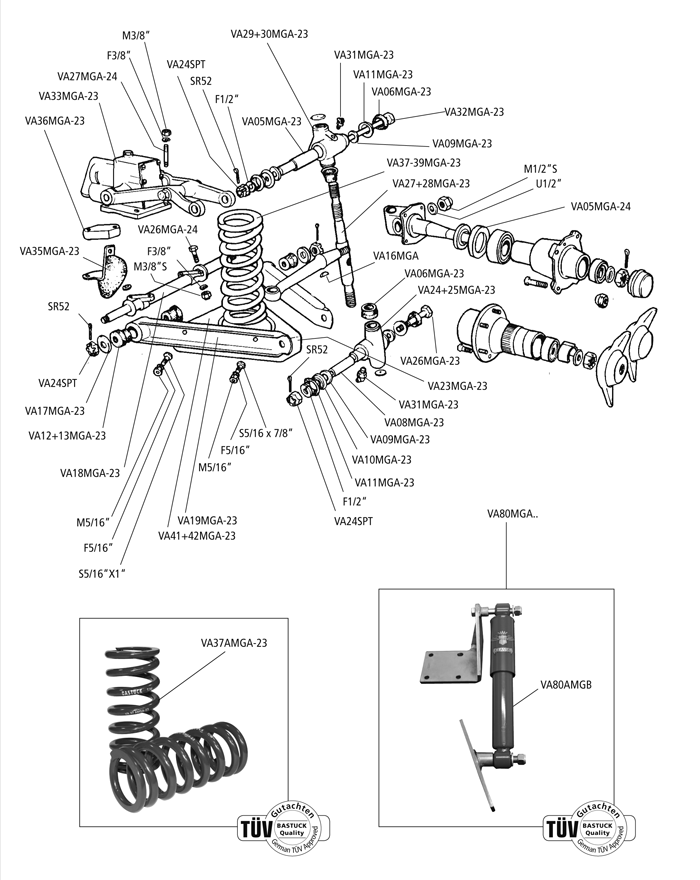

Front Suspension
VA01MGA-23 Major suspension kit (both sides) (Contents: no. VA05/06/07/08/10/11/12MGA-23)
required quantities: 1
VA02MGA-23 Major suspension kit uprated (both sides) (Contents: the same as no.1 but item VA13MGA-23 in uprated version)
required quantities: 1
VA03MGA-23 Lower suspension rubber kit (Contents: no. VA06+12MGA-23)(both sides)
required quantities: 1
VA05MGA-24 Oil seal front hub outer (except MK2 de Luxe/Twin Cam)
required quantities: 2
VA05MGA-23 Bronze bush
required quantities: 4
VA06MGA-23 King pin seal
required quantities: 4
VA08MGA-23 Tube distance link
required quantities: 4
VA09MGA-23 Thrust washer king pin
required quantities: 8
VA10MGA-23 Seal support
required quantities: 8
VA11MGA-23 King pin dust seal
required quantities: 8
VA12MGA-23 Wishbone arm bush „standard“
required quantities: 8
VA13MGA-23 Lower wishbone arm bush „uprated“ heavy duty rubber/steel. Highly recommended for improved control and less suspension deviation during braking and cornering
required quantities: 4
F1/2" Spring washer
required quantities: 4
VA24SPT Crown nut
required quantities: 2
SR52 Split pin
required quantities: 8
VA16MGA Key
required quantities: 2
VA17MGA-23 Retaining washer
required quantities: 4
VA18MGA-23 Bottom wishbone pivot
required quantities: 2
VA19MGA-23 Wishbone arm (cars without front anti-roll bar)
required quantities: 4
S5/16"X7/8" Setscrew
required quantities: 4
S5/16"X1" Setscrew
required quantities: 4
M5/16" Nut5/16" UNF
required quantities: 8
VA23MGA-23 Front spring pan
required quantities: 2
VA24MGA-23 Swivel link right hand
required quantities: 1
VA25MGA-23 Swivel link left hand
required quantities: 1
VA26MGA-23 Bolt wishbone to link
required quantities: 2
VA26MGA-24 Bolt
required quantities: 8
VA27MGA-24 Stud
required quantities: 8
VA27MGA-23 King pin right hand
required quantities: 1
VA28MGA-23 King pin left hand
required quantities: 1
VA29MGA-23 Top swivel link right hand
required quantities: 1
VA30MGA-23 Top swivel link left hand
required quantities: 1
VA31MGA-23 Grease nipple idler bracket
required quantities: 4
VA32MGA-23 Bolt shock absorber to link
required quantities: 2
VA33MGA-23 Front shock absorber
required quantities: 2
VA35MGA-23 Rebound rubber
required quantities: 2
VA35MGB-23 Distance piece rebound buffer
required quantities: 2
VA37MGA-23 Front spring 1500 up to 15151
required quantities: 2
VA37AMGA-23 Front spring reinforced + short / with TÜV approval (L= 220 mm )
required quantities: 2
VA38MGA-23 Front spring 1500 from 15152 + 1600 + MK2 (L= 250 mm)
required quantities: 2
VA39MGA-23 Front spring MK2 de Luxe + Twin Cam
required quantities: 2
VA41MGA-23 Wishbone arm front right hand (cars with front anti-roll bar)
required quantities: 1
VA42MGA-23 Wishbone arm front left hand (cars with front anti-roll bar)
required quantities: 1
VA80MGA-T Conversion kit for Koni shock absorbers (w/o absorber), MGA with drum brakes - with TÜV approval: 90108
required quantities: 1
VA80MGA-S Conversion kit for Koni shock absorbers (w/o absorber), MGA with disk brakes - with TÜV approval: 90108
required quantities: 1
VA80AMGB Koni shock absorber for conversion kit VA80MGA..
required quantities: 2
VA01MGA-24 Front wheel hub 1500 steel wheel/drum brakes
required quantities: 2
VA02MGA-24 Front wheel hub 1600 steel wheel up to 69504
required quantities: 2
VA03MGA-24 Front wheel hub 1600 steel wheel from 69505 + MK2
required quantities: 2
VA04MGA-24 Front wheel hub spacer (except MK2 de Luxe + Twin Cam)
required quantities: 2
VA05MGA-24 Oil seal front wheel hub (except MK2 de Luxe + Twin Cam)
required quantities: 2
VA06MGA-24 Inner wheel bearing front hub (except MK2 de Luxe + Twin Cam)
required quantities: 2
VA07MGA-24 Outer wheel bearing front hub (except MK2 de Luxe + Twin Cam)
required quantities: 2
VA08MGA-24 Front wheel hub spacer (except MK2 de Luxe + Twin Cam)
required quantities: 2
VA09MGA-24 Crown nut right hand thread
required quantities: 1
VA10MGA-24 Crown nut left hand thread
required quantities: 1
VA11MGA-24 Grease retaining cap front hub steel wheel
required quantities: 2
F12MGL Front wire wheel hub 1600/1622 right hand (disc brakes) 90109
required quantities: 1
F12MGR Front wire wheel hub 1600/1622 left hand (disc brakes) 90109
required quantities: 1
F13TR Wheel nut steel wheels
required quantities: 8
VA12MGA-24 Front wheel stud steel wheel OE:1G4359
required quantities: 8
VA18MGA-24 Front wire wheel hub 1500 right hand (drum brakes)
required quantities: 1
VA19MGA-24 Front wire wheel hub 1500 left hand (drum brakes)
required quantities: 1
VA22MGA-24 Wheel stud 15001
required quantities: 12
VA23MGA-24 Bolt wheel hub/brake disc
required quantities: 8
VA24MGA-24 Grease retaining cap front hub wire wheel
required quantities: 2
VA25MGA-24 Lock washer
required quantities: 2
VA26MGA-24 Bolt
required quantities: 8
VA27MGA-24 Stud
required quantities: 8
HSD Shock absorber oil 0,5 l
required quantities: A/R

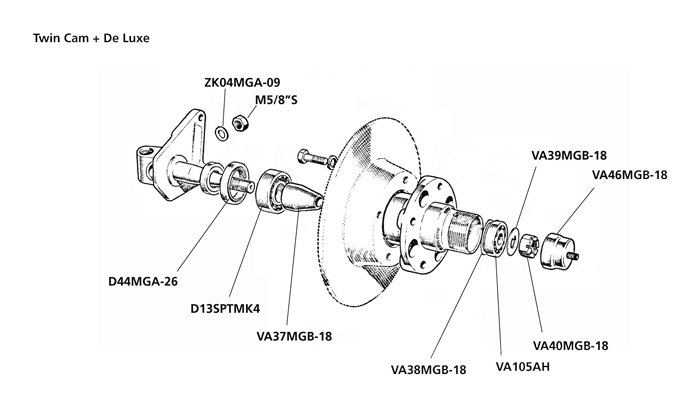

Twin Cam + De Luxe
ZK04MGA-09 Washer, plain 5/8”
required quantities: 2
D13SPTMK4 Inner bearing
required quantities: 2
VA37MGB-18 Spacer, bearing
required quantities: 2
VA38MGB-18 Shim set
required quantities: A/R
VA39MGB-18 Washer, retaining
required quantities: 2
VA40MGB-18 Bearing lock nut
required quantities: 2
D44MGA-26 Oil seal
required quantities: 2
VA46MGB-18 Grease retaining cap
required quantities: 2
VA105AH Outer bearing
required quantities: 2

Note to no. F12MGL/R: Except MK2 de Luxe + Twin Cam
