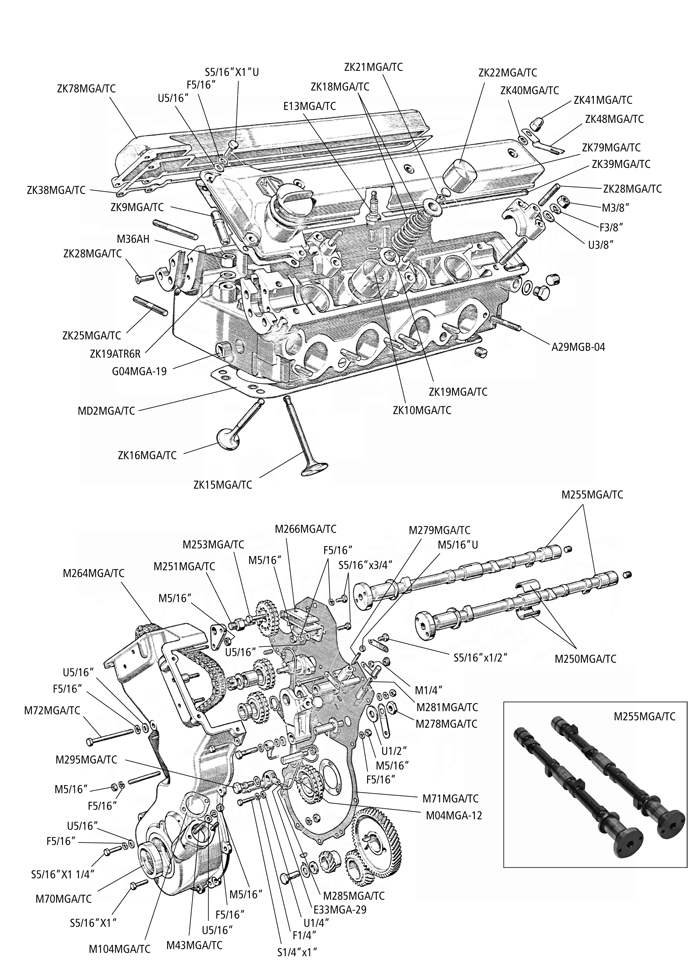

Cylinder Head Twin Cam |
 |
| MD2MGA/TC |
Gasket cylinder head Twin Cam
required quantities: 1
|
| G04MGA-19 |
Drain plug
required quantities: 5
|
| ZK8MGA/TC |
Stud 5/16x1/2”UNC
required quantities: 6
|
| ZK9MGA/TC |
Valve guide inlet MGA Twin Cam (4 pc. needed)
required quantities: 4
|
| ZK10MGA/TC |
Valve guide exhaust MGA Twin Cam (4 pc. needed)
required quantities: 4
|
| E13MGA/TC |
Spark plug
required quantities: 4
|
| ZK15MGA/TC |
Inlet valve MGA Twin Cam (4 pc. needed)
required quantities: 4
|
| ZK16MGA/TC |
Exhaust valve MGA Twin Cam (4 pc. needed)
required quantities: 4
|
| ZK18MGA/TC |
Valve spring set (set: 16 pc.)
required quantities: 1
|
| ZK19ATR6R |
Washer hard 7/16”
required quantities: 10
|
| ZK19MGA/TC |
Collar valve spring lower
required quantities: 8
|
| ZK21MGA/TC |
Half collet (cam follower)
required quantities: A/R
|
| ZK22MGA/TC |
Tappet bucket
required quantities: 8
|
| ZK25MGA/TC |
Stud 3/8 x1 5/8”UNC
required quantities: 5
|
| ZK28MGA/TC |
Contersunk screw
required quantities: 6
|
| A29MGB-04 |
Manifold stud
required quantities: 6
|
| M36AH |
Nut cylinder head
required quantities: 10
|
| ZK38MGA/TC |
Gasket camcover inlet
required quantities: 1
|
| ZK39MGA/TC |
Gasket camcover exhaust
required quantities: 1
|
| ZK40MGA/TC |
Washer sealing
required quantities: 6
|
| ZK41MGA/TC |
Cap nut
required quantities: 6
|
| ZK48MGA/TC |
Bracket dipstick
required quantities: 1
|
| ZK78MGA/TC |
Cam cover inlet
required quantities: 1
|
| ZK79MGA/TC |
Cam cover exhaust
required quantities: 1
|
| M04MGA-12 |
Half collet
required quantities: 1
|
| E33MGA-29 |
Nut male carb vacuum
required quantities: 2
|
| M43MGA/TC |
Stud
required quantities: 2
|
| M70MGA/TC |
Oil seal engine front
required quantities: 1
|
| M71MGA/TC |
Gasket, timing cover to front plate
required quantities: 1
|
| M72MGA/TC |
Bolt
required quantities: 1
|
| M104MGA/TC |
Gasket
required quantities: 1
|
| M250MGA/TC |
Camshaft bearing set
required quantities: 1
|
| M251MGA/TC |
Sprocket spindle
required quantities: 2
|
| M253MGA/TC |
Bolt sprocket
required quantities: 4
|
| M255MGA/TC |
Camshaft, pair
required quantities: 1
|
| M264MGA/TC |
Timing chain
required quantities: 1
|
| M266MGA/TC |
Damper camshaft gear
required quantities: 2
|
| M278MGA/TC |
Nut
required quantities: 1
|
| M279MGA/TC |
Adjuster screw
required quantities: 1
|
| M281MGA/TC |
Spring
required quantities: 1
|
| M285MGA/TC |
Olive vacuum pipe
required quantities: 2
|
| M295MGA/TC |
Banjo bolt
required quantities: 1
|
| MÖ/5L |
Motor oil 20W50, 5 liter container
required quantities: 1
|
| MÖRACE |
Motor oil, VALVOLINE “Racing” 20W50, per liter (5 liter container)
required quantities: 5
|
| |

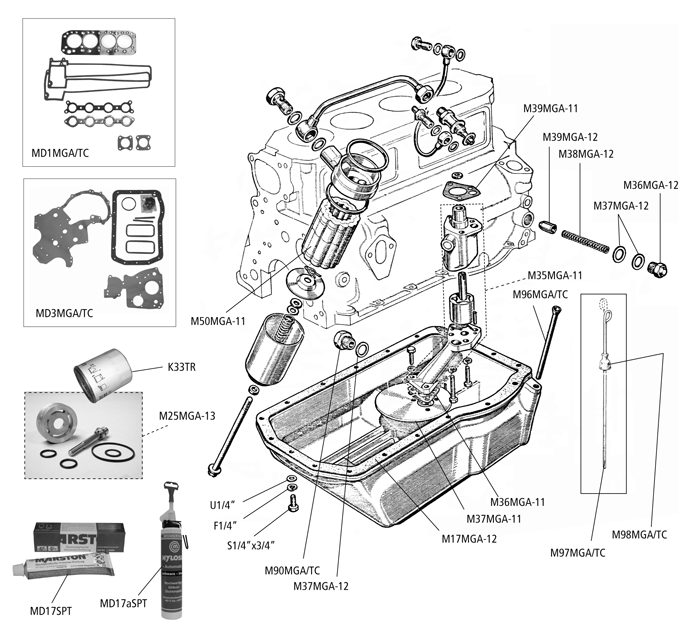

Engine Parts /Gaskets |
 |
| MD1MGA/TC |
Gasket set top
required quantities: 1
|
| MD3MGA/TC |
Gasket set bottom
required quantities: 1
|
| M17MGA-12 |
Oil sump gasket
required quantities: 1
|
| M25MGA-13 |
Spin on throw-away oil filter kit
required quantities: 1
|
| K33TR |
Spin on throw-away oil filter (to use with M25MGA-13)
required quantities: 1
|
| M35MGA-11 |
Oil pump
required quantities: 1
|
| M36MGA-11 |
Gasket strainer to pump
required quantities: 1
|
| M36MGA-12 |
Cap nut oil pressure valve
required quantities: 1
|
| M37MGA-11 |
Strainer oil pump
required quantities: 1
|
| M37MGA-12 |
Copper washer
required quantities: 2
|
| M38MGA-12 |
Spring, oil pressure valve
required quantities: 1
|
| M39MGA-11 |
Gasket oil pump/crank case
required quantities: 1
|
| M39MGA-12 |
Oil pressure relief valve
required quantities: 1
|
| M50MGA-11 |
Oil filter paper element
required quantities: 1
|
| M90MGA/TC |
Drain plug
required quantities: 1
|
| M96MGA/TC |
Tube dipstick
required quantities: 1
|
| M97MGA/TC |
Dipstick
required quantities: 1
|
| M98MGA/TC |
Washer dipstick tube
required quantities: 1
|
| MD17SPT |
Universal jointing compound “Marston” 80ml
required quantities: A/R
|
| MD17aSPT |
Silicone sealant - black “Hylosil” 200ml
required quantities: A/R
|
