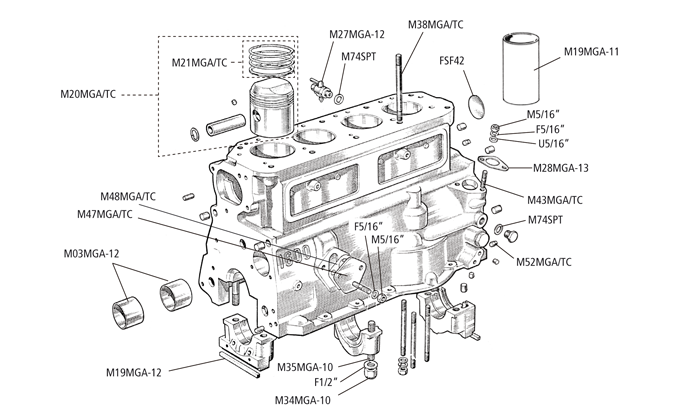

Engine Parts Twin Cam (top illustration) |
 |
| M0MGA/TC |
Engine Twin Cam, exchange
required quantities: A/R
|
| M03MGA-12 |
Cam bearing set
required quantities: 1
|
| M19MGA-11 |
Liner
required quantities: 4
|
| M19MGA-12 |
Gasket main bearing cap
required quantities: 2
|
| M20MGA/TC-STD |
Piston set (std)
required quantities: 1
|
| M20MGA/TC-020 |
Piston set (0.020")
required quantities: 1
|
| M20MGA/TC-030 |
Piston set (0.030")
required quantities: 1
|
| M21MGA/TC-STD |
Piston ring set (std)
required quantities: 1
|
| M21MGA/TC-020 |
Piston ring set (0.020")
required quantities: 1
|
| M21MGA/TC-030 |
Piston ring set (0.030")
required quantities: 1
|
| M27MGA-12 |
Drain tap eng block
required quantities: 1
|
| M28MGA-13 |
Gasket tacho drive
required quantities: 1
|
| M34MGA-10 |
Nut main cap
required quantities: 6
|
| M35MGA-10 |
Stud - main end
required quantities: 6
|
| M38MGA/TC |
Stud cylinder head Twin Cam
required quantities: 10
|
| FSF42 |
Core plug engine block (42mm)
required quantities: 4
|
| M43MGA/TC |
Stud 5/16x3/8”UNC
required quantities: 2
|
| M47MGA/TC |
Blanking plate
required quantities: 1
|
| M48MGA/TC |
Gasket
required quantities: 1
|
| M52MGA/TC |
Dowel engine mounting plate, bottom rear
required quantities: 2
|
| M74SPT |
Copper washer
required quantities: 1
|
| |

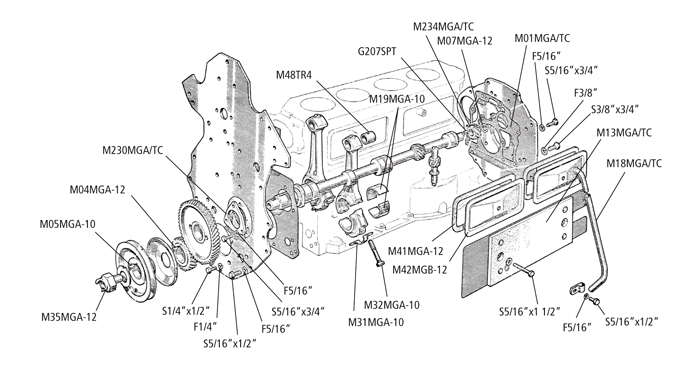

Engine Parts Twin Cam (centre illustration) |
 |
| M01MGA/TC |
Gasket engine mounting plate, rear
required quantities: 1
|
| M04MGA-12 |
Key camshaft
required quantities: 1
|
| M05MGA-10 |
Key camshaft
required quantities: 1
|
| M07MGA-12 |
Lock circlip
required quantities: 1
|
| M13MGA/TC |
Heatshield
required quantities: 1
|
| M18MGA/TC |
Vent pipe
required quantities: 1
|
| M19MGA-10/STD |
Big end bearings set (std)
required quantities: 1
|
| M19MGA-10/10 |
Big end bearings set (0,010")
required quantities: 1
|
| M19MGA-10/20 |
Big end bearings set (0,020")
required quantities: 1
|
| M19MGA-10/30 |
Big end bearings set (0,030")
required quantities: 1
|
| M19MGA-10/40 |
Big end bearings set (0,040")
required quantities: 1
|
| M19MGA-10/60 |
Big end bearings set (0,060")
required quantities: 1
|
| M31MGA-10 |
Tab washer connecting rod bolt
required quantities: 4
|
| M32MGA-10 |
Con rod bolt
required quantities: 8
|
| M35MGA-12 |
Nut crankshaft
required quantities: 1
|
| M41MGA-12 |
Gasket engine side cover
required quantities: 2
|
| M42MGB-12 |
Engine side cover rear
required quantities: 1
|
| M48TR4 |
Bush
required quantities: 1
|
| G207SPT |
Key woodruff overdrive
required quantities: 1
|
| M230MGA/TC |
Plate retaining camshaft
required quantities: 1
|
| M234MGA/TC |
Tacho drive gear
required quantities: 1
|
| |

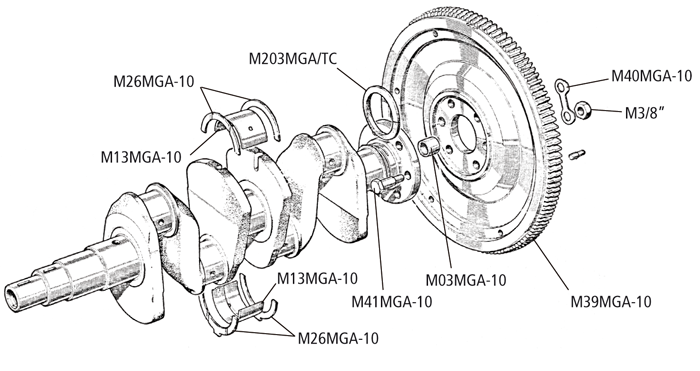

Engine Parts Twin Cam (bottom illustration) |
 |
| M03MGA-10 |
Bush crankshaft spigot
required quantities: 1
|
| M13MGA-10/STD |
Main bearings set 1622 (std)
required quantities: 1
|
| M13MGA-10/10 |
Main bearings set 1622 (0.010")
required quantities: 1
|
| M13MGA-10/20 |
Main bearings set 1622 (0.020")
required quantities: 1
|
| M13MGA-10/30 |
Main bearings set 1622 (0.030")
required quantities: 1
|
| M13MGA-10/40 |
Main bearings set 1622 (0.040")
required quantities: 1
|
| M26MGA-10/STD |
Set thrust washers (std)
required quantities: 1
|
| M26MGA-10/03 |
Set thrust washers (0,003")
required quantities: 1
|
| M26MGA-10/05 |
Set thrust washers (0,005")
required quantities: 1
|
| M26MGA-10/10 |
Set thrust washers (0,010")
required quantities: 1
|
| M39MGA-10 |
Starter ring gear on flywheel MGA/MGB to 67/GB engine
required quantities: 1
|
| M40MGA-10 |
Washer lock flywheel
required quantities: 3
|
| M41MGA-10 |
Bolt pulley crankshaft/flywheel
required quantities: 6
|
| M203MGA/TC |
Crankshaft oil seal rear
required quantities: 1
|
