Klikový hřídel


Obj. číslo Popis Ilustrace
klikněte pro zvětšení

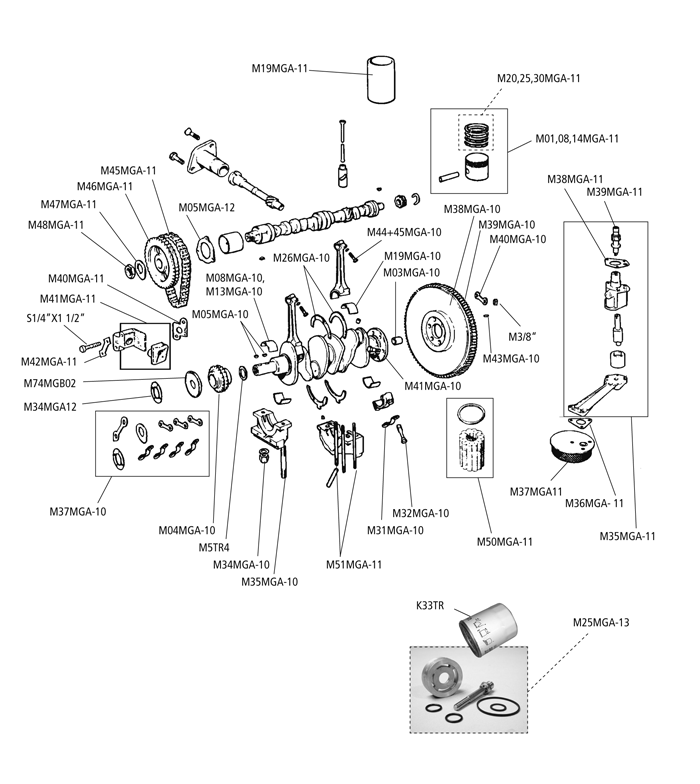

Engine Parts		 FKG_4170210000.png
M03MGA-10 Crankshaft bush
required quantities: 1
M04MGA-10 Crankshaft gear „duplex“
required quantities: 1
M05MGA-10 Crankshaft key
required quantities: 2
M05MGA-12 Camshaft retaining plate
required quantities: 1
M5TR4 Shim washer „0.006“
required quantities: A/R
M08MGA-10/STD Main bearings set 1500/1600 (std)
required quantities: 1
M08MGA-10/10 Main bearings set 1500/1600 (0.010")
required quantities: 1
M08MGA-10/20 Main bearings set 1500/1600 (0.020")
required quantities: 1
M08MGA-10/30 Main bearings set 1500/1600 (0.030")
required quantities: 1
M08MGA-10/40 Main bearings set 1500/1600 (0.040")
required quantities: 1
M08MGA-10/50 Main bearings set 1500/1600 (0.050")
required quantities: 1
M08MGA-10/60 Main bearings set 1500/1600 (0.060)
required quantities: 1
M13MGA-10/STD Main bearings set 1622 (std)
required quantities: 1
M13MGA-10/10 Main bearings set 1622 (0.010")
required quantities: 1
M13MGA-10/20 Main bearings set 1622 (0.020")
required quantities: 1
M13MGA-10/30 Main bearings set 1622 (0.030")
required quantities: 1
M13MGA-10/40 Main bearings set 1622 (0.040")
required quantities: 1
M19MGA-10/STD Big end bearings set (std)
required quantities: 1
M19MGA-10/10 Big end bearings set (0,010")
required quantities: 1
M19MGA-10/20 Big end bearings set (0,020")
required quantities: 1
M19MGA-10/30 Big end bearings set (0,030")
required quantities: 1
M19MGA-10/40 Big end bearings set (0,040")
required quantities: 1
M19MGA-10/60 Big end bearings set (0,060")
required quantities: 1
M26MGA-10/STD Set thrust washers (std)
required quantities: 1
M26MGA-10/03 Set thrust washers (0,003")
required quantities: 1
M26MGA-10/05 Set thrust washers (0,005")
required quantities: 1
M26MGA-10/10 Set thrust washers (0,010")
required quantities: 1
M31MGA-10 Tab washer connecting rod bolt
required quantities: 4
M32MGA-10 Connecting rod bolt
required quantities: 8
M34MGA-10 Nyloc nut connecting rod
required quantities: 6
M34MGA-12 Lock plate crank pulley
required quantities: 1
M35MGA-10 Stud main bearing cap
required quantities: 6
M37MGA-10 Lock tab set (10 pcs)
required quantities: 1
M38MGA-10 Flywheel
required quantities: 1
M39MGA-10 Starter gear ring on flywheel
required quantities: 1
M40MGA-10 Lock plate flywheel
required quantities: 3
M41MGA-10 Bolt flywheel/crankshaft
required quantities: 6
M3/8" Nut flywheel bolt
required quantities: 6
M43MGA-10 Dowel clutch to flywheel
required quantities: 2
M44MGA-10 Bolt clamping con rod small end 1500/1600
required quantities: 4
M45MGA-10 Bolt clamping con rod small end 1600 MK2
required quantities: 4
M01MGA-11/STD Piston set (4 pcs) 1500 (std)
required quantities: 1
M01MGA-11/20 Piston set (4 pcs) 1500 (0.020")
required quantities: 1
M01MGA-11/30 Piston set (4 pcs) 1500 (0.030")
required quantities: 1
M01MGA-11/40 Piston set (4 pcs) 1500 (0.040")
required quantities: 1
M01MGA-11/60 Piston set (4 pcs) 1500 (0.060")
required quantities: 1
M08MGA-11/STD Piston set (4 pcs) 1600 (std)
required quantities: 1
M08MGA-11/20 Piston set (4 pcs) 1600 (0.020")
required quantities: 1
M08MGA-11/30 Piston set (4 pcs) 1600 (0.030")
required quantities: 1
M08MGA-11/40 Piston set (4 pcs) 1600 (0.040")
required quantities: 1
M08MGA-11/60 Piston set (4 pcs) 1600 (0.060")
required quantities: 1
M14MGA-11/STD Piston set (4 pcs) 1622 (std)
required quantities: 1
M14MGA-11/20 Piston set (4 pcs) 1622 (0.020")
required quantities: 1
M14MGA-11/30 Piston set (4 pcs) 1622 (0.030")
required quantities: 1
M14MGA-11/40 Piston set (4 pcs) 1622 (0.040")
required quantities: 1
M19MGA-11 Cylinder liner
required quantities: 4
M20MGA-11/STD Piston ring set 1500 (4 pistons/ 4-rings each) (std)
required quantities: 1
M20MGA-11/20 Piston ring set 1500 (4 pistons/ 4-rings each) (0.020")
required quantities: 1
M20MGA-11/30 Piston ring set 1500 (4 pistons/ 4-rings each) (0.030")
required quantities: 1
M20MGA-11/40 Piston ring set 1500 (4 pistons/ 4-rings each) (0.030")
required quantities: 1
M20MGA-11/60 Piston ring set 1500 (4 pistons/ 4-rings each) (0.060")
required quantities: 1
M25MGA-11/STD Piston ring set 1600 (4 pistons/ 4-rings each) (std)
required quantities: 1
M25MGA-11/20 Piston ring set 1600 (4 pistons/ 4-rings each) (0.020")
required quantities: 1
M25MGA-11/30 Piston ring set 1600 (4 pistons/ 4-rings each) (0.030")
required quantities: 1
M25MGA-11/40 Piston ring set 1600 (4 pistons/ 4-rings each) (0.030")
required quantities: 1
M25MGA-11/60 Piston ring set 1600 (4 pistons/ 4-rings each) (0.060")
required quantities: 1
M30MGA-11/STD Piston ring set 1622 (4 pistons/ 4-rings each) (std)
required quantities: 1
M30MGA-11/20 Piston ring set 1622 (4 pistons/ 4-rings each) (0.020")
required quantities: 1
M30MGA-11/30 Piston ring set 1622 (4 pistons/ 4-rings each) (0.030")
required quantities: 1
M30MGA-11/40 Piston ring set 1622 (4 pistons/ 4-rings each) (0.030")
required quantities: 1
M30MGA-11/60 Piston ring set 1622 (4 pistons/ 4-rings each) (0.060")
required quantities: 1
M25MGA-13 Spin on throw-away oil filter kit 90050
required quantities: 1
K33TR Spin on throw-away oil filter (to use with M25MGA-13)
required quantities: 1
M35MGA-11 Oil pump
required quantities: 1
M36MGA-11 Gasket pump to strainer
required quantities: 1
M37MGA-11 Oil strainer
required quantities: 1
M38MGA-11 Gasket pump to engine block
required quantities: 1
M39MGA-11 Spindle oil pump driving
required quantities: 1
M40MGA-11 Tensioner gasket
required quantities: 1
M41MGA-11 Timing chain tensioner
required quantities: 1
M25MGA-13 Spin on throw-away oil filter kit 90050
required quantities: 1
M45MGA-11 Timing chain
required quantities: 1
M35MGA-11 Camshaft gear
required quantities: 1
M47MGA-11 Lock washer
required quantities: 1
M37MGA-11 Retaining nut camshaft gear
required quantities: 1
M05MGA-12 Camshaft retaining plate
required quantities: 1
M39MGA-11 Oil filter paper element
required quantities: 1
M51MGA-11 Stud oil pump
required quantities: 2/3
M41MGA-11 Oil thrower
required quantities: 1
MÖ/5L Motor oil 20W50, 5 liter container
required quantities: 1

*) Note to no. M25MGA-13: The use of a „Spin-on“-oil filter will make routine oil changing amuch cleaner and easier operation. Our „Spinon“-oil filter no. K33TR has ainternal anti-drain valve to prevent the oil draining back into thesump after starting the engine; oil flows directly to the bearingsand not first into the oil filter anymore!
