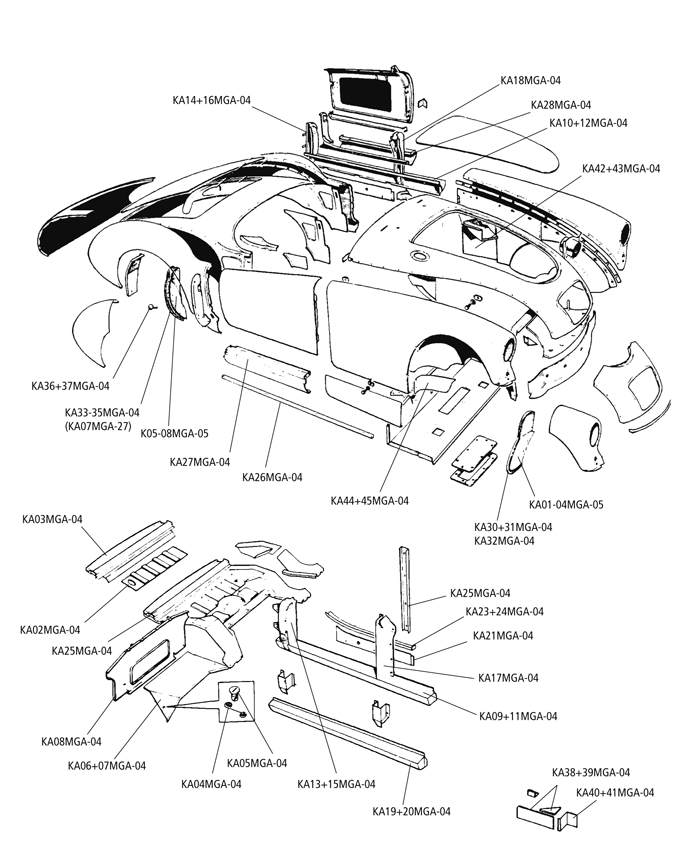

Body Panels |
 |
| KA01MGA-04 |
Boot floor
required quantities: 1
|
| KA02MGA-04 |
Repair panel boot floor centre
required quantities: 1
|
| KA03MGA-04 |
Repair panel boot floor rear
required quantities: 1
|
| KA04MGA-04 |
Dzus spring
required quantities: 2
|
| KA05MGA-04 |
Dzus fastener
required quantities: 2
|
| KA06MGA-04 |
Battery cover 1500/1600
required quantities: 1
|
| KA07MGA-04 |
Battery cover 1600 MK2
required quantities: 1
|
| KA08MGA-04 |
Rear bulkhead panel (except 1600 coupe)
required quantities: 1
|
| KA09MGA-04 |
Sill a- and b-post pillar roadster right hand
required quantities: 1
|
| KA10MGA-04 |
Sill a- and b-post pillar roadster left hand
required quantities: 1
|
| KA11MGA-04 |
Sill a- and b-post pillar coupe right hand
required quantities: 1
|
| KA12MGA-04 |
Sill a- and b-post pillar coupe left hand
required quantities: 1
|
| KA13MGA-04 |
B-post pillar roadster right hand
required quantities: 1
|
| KA14MGA-04 |
B-post pillar roadster left hand
required quantities: 1
|
| KA15MGA-04 |
B-post pillar coupe right hand
required quantities: 1
|
| KA16MGA-04 |
B-post pillar coupe left hand
required quantities: 1
|
| KA17MGA-04 |
A-post pillar right hand
required quantities: 1
|
| KA18MGA-04 |
A-post pillar left hand
required quantities: 1
|
| KA19MGA-04 |
Inner sill with end caps right hand
required quantities: 1
|
| KA20MGA-04 |
Inner sill with end caps left hand
required quantities: 1
|
| KA21MGA-04 |
Sill closing panel inner right hand
required quantities: 1
|
| KA22MGA-04 |
Sill closing panel inner left hand
required quantities: 1
|
| KA23MGA-04 |
Sill cover plate right hand
required quantities: 1
|
| KA24MGA-04 |
Sill cover plate left hand
required quantities: 1
|
| KA25MGA-04 |
Reinforcing channel
required quantities: 2
|
| KA26MGA-04 |
Finisher set sill (2 pcs)
required quantities: 1
|
| KA27MGA-04 |
Outer sill panel right hand
required quantities: 1
|
| KA28MGA-04 |
Outer sill panel left hand
required quantities: 1
|
| KA01MGA-05 |
Splash plate front right hand
required quantities: 1
|
| KA02MGA-05 |
Splash plate front left hand
required quantities: 1
|
| KA03MGA-05 |
Splash plate front right hand (alternative) *
required quantities: 1
|
| KA04MGA-05 |
Splash plate front left hand (alternative) *
required quantities: 1
|
| KA05MGA-05 |
Splash plate rear wing front right hand
required quantities: 1
|
| KA06MGA-05 |
Splash plate rear wing front left hand
required quantities: 1
|
| KA07MGA-05 |
Splash plate rear wing front right hand (alternative) *
required quantities: 1
|
| KA08MGA-05 |
Splash plate rear wing front left hand (alternative) *
required quantities: 1
|
| KA30MGA-04 |
Original splash seal front right hand
required quantities: 1
|
| KA31MGA-04 |
Original splash seal front left hand
required quantities: 1
|
| KA07MGB-27 |
Alternative splash seal front - push on (for lh or rh) *
required quantities: 2
|
| KA33MGA-04 |
Original splash seal rear right hand
required quantities: 1
|
| KA34MGA-04 |
Original splash seal rear left hand
required quantities: 1
|
| KA35MGA-04 |
Alternative splash seal rear - push on (for lh or rh) *
required quantities: 2
|
| KA36MGA-04 |
Split pins set for original splash seal (64 pcs)
required quantities: 1
|
| KA37MGA-04 |
Split rivet pins for „original“ splash seal
required quantities: 4
|
| KA38MGA-04 |
Rep.-panel wheel arch brace right hand
required quantities: 1
|
| KA39MGA-04 |
Rep.-panel wheel arch brace left hand
required quantities: 1
|
| KA40MGA-04 |
Rep.-piece sill to wheel well right hand
required quantities: 1
|
| KA41MGA-04 |
Rep.-piece sill to wheel well left hand
required quantities: 1
|
| KA42MGA-04 |
Wheelarch closing panel right hand
required quantities: 1
|
| KA43MGA-04 |
Wheelarch closing panel left hand
required quantities: 1
|
| KA44MGA-04 |
Reinforcment wheel well right hand
required quantities: 1
|
| KA45MGA-04 |
Reinforcment wheel well left hand
required quantities: 1
|
