Zadní osa & diferenciál


Obj. číslo Popis Ilustrace
klikněte pro zvětšení

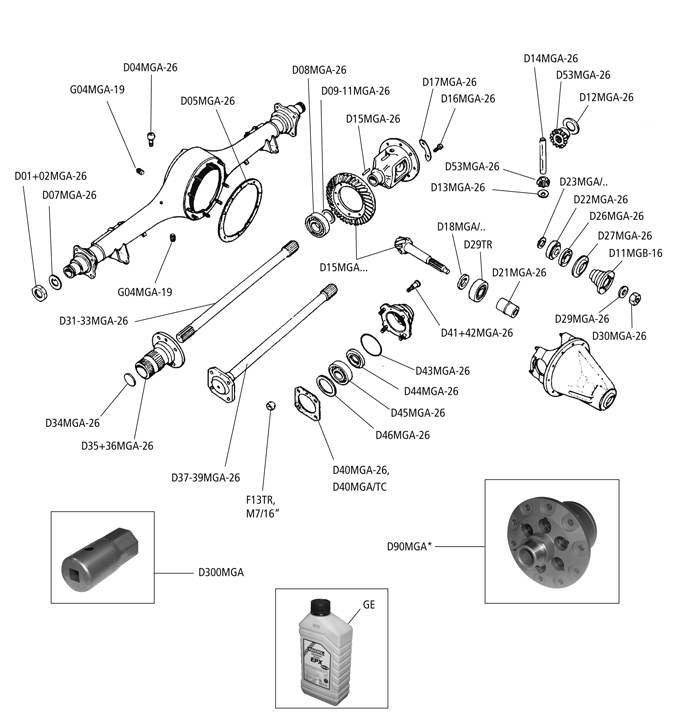

Rear Axle / Differential
D01MGA/3.7 Exch. Differential (rebuilding of your existing differential) (3,7:1) up to 1967 90104
required quantities: 1
D01MGA/3.9 Exch. Differential (rebuilding of your existing differential) (3,9:1) up to 1967 90104
required quantities: 1
D01MGA/4.1 Exch. Differential (rebuilding of your existing differential) (4,1:1) up to 1967 90104
required quantities: 1
D01MGA/4.3 Exch. Differential (rebuilding of your existing differential) (4,3:1) up to 1967 90104
required quantities: 1
D01MGA/4.55 Exch. Differential (rebuilding of your existing differential) (4,55:1) up to 1967 90104
required quantities: 1
D01MGA-26 Nut right hand (right hand thread)
required quantities: 1
D02MGA-26 Nut left hand (left hand thread)
required quantities: 1
G04MGA-19 Oil drain / filler plug differential
required quantities: 2
D04MGA-26 Breather differential cover
required quantities: 1
D05MGA-26 Gasket differential cover
required quantities: 1
D06MGA-26 Cage differential
required quantities: 1
D07MGA-26 Lock washer
required quantities: 2
D08MGA-26 Bearing differential side
required quantities: 2
D09MGA-26 Shim 0.002“
required quantities: A/R
D10MGA-26 Shim 0.003“
required quantities: A/R
D11MGA-26 Shim 0.006“
required quantities: A/R
D11MGB-16 Flange (pinion)
required quantities: 1
D12MGA-26 Thrust washer differential side
required quantities: 2
D13MGA-26 Thrust washer differential
required quantities: 2
D14MGA-26 Pin pinion
required quantities: 1
D15MGA/3.7 Bevel wheel and ring gear, 3.7
required quantities: 1
D15MGA/3.9 Bevel wheel and ring gear, 3.9
required quantities: 1
D15MGA/4.1 Bevel wheel and ring gear, 3.909
required quantities: 1
D15MGA/4.3 Bevel wheel and ring gear, 4.3
required quantities: 1
D15MGA/4.555 Bevel wheel and ring gear, 4.55
required quantities: 1
D15MGA-26 Plug
required quantities: 1
D16MGA-26 Bolt crown wheel/ cage differential
required quantities: 8
D17MGA-26 Lock washer crown wheel
required quantities: 4
D18MGA/118 Pinion thrust washer 0.118"
required quantities: A/R
D18MGA/120 Pinion thrust washer 0.120"
required quantities: A/R
D18MGA/122 Pinion thrust washer 0.122"
required quantities: A/R
D18MGA/124 Pinion thrust washer 0.124"
required quantities: A/R
D18MGA/126 Pinion thrust washer 0.126"
required quantities: A/R
D29TR Bearing taper roller pinion inner
required quantities: 1
D21MGA-26 Spacer bearing
required quantities: 1
D22MGA-26 Bearing taper roller pinion outer
required quantities: 1
D23MGA/004 Thrust washer 0.004"
required quantities: A/R
D23MGA/006 Thrust washer 0.006"
required quantities: A/R
D23MGA/008 Thrust washer 0.008"
required quantities: A/R
D23MGA/010 Thrust washer 0.010"
required quantities: A/R
D23MGA/012 Thrust washer 0.012"
required quantities: A/R
D23MGA/020 Thrust washer 0.020"
required quantities: A/R
D23MGA/030 Thrust washer 0.030"
required quantities: A/R
D26MGA-26 Oil seal differential pinion
required quantities: 1
D27MGA-26 Cap differential pinion
required quantities: 1
D29MGA-26 Spring washer
required quantities: 1
D30MGA-26 Nut
required quantities: 1
D31MGA-26 Halfshaft (wire wheels) 1500 10 splines
required quantities: 2
D32MGA-26 Halfshaft (wire wheels) 1600 up to 82748 26 splines
required quantities: 2
D33MGA-26 Halfshaft (wire wheels) 1600 from 82749 25 splines
required quantities: 2
D34MGA-26 use FSF33
required quantities: 2
FSF33 Core plug wire wheel hub
required quantities: 2
D35MGA-26 Rear wire wheel hub right hand
required quantities: 1
D36MGA-26 Rear wire wheel hub left hand
required quantities: 1
D37MGA-26 Halfshaft (steel wheels) 1500 10 splines
required quantities: 2
D38MGA-26 Halfshaft (steel wheels) 1600 up to 82692 (26 splines)
required quantities: 2
D39MGA-26 Halfshaft (steel wheels) 1600 from 82692 (25 splines)
required quantities: 2
D40MGA-26 Hub gasket
required quantities: 2
D40MGA/TC Hub gasket (Twin Cam)
required quantities: 2
D41MGA-26 Wheel stud steel wheels OE: 1G7435
required quantities: 8
D42MGA-26 Wheel stud wire wheels
required quantities: 8
D43MGA-26 O-ring
required quantities: 2
D44MGA-26 Axle hub oil seal
required quantities: 2
D45MGA-26 Rear hub bearing
required quantities: 2
D46MGA-26 Bearing spacer steel wheels
required quantities: 2
D47MGA-26 Rear axle hub bearing kit (contents: 1x no. D40/43/44/45)
required quantities: 2
D53MGA-26 Pinion differential
required quantities: 2
F13TR Wheel nut steel wheels
required quantities: 8
M7/16" Nut
required quantities: 8
D300MGA Rear hub nut socket
required quantities: A/R
GE Hypoid gearbox/differential oil SAE 80W90, per liter
required quantities: A/R

Note: easy conversion from steel to wire wheel, without changing halfshafts - see Rims, Accessories


Exchange differential Banjo-type: 3 years guarantee on mechanical parts. The differntial will be refurbished and remounted in our workshop



As a matter of principle, parts which are available in exchange can only be dispatched after receipt of the old/used unit. Please supply us exchange parts complete and cleaned.



Please supply exchange parts mounted, complete and cleaned. Don´t forget: Please remove oil!
