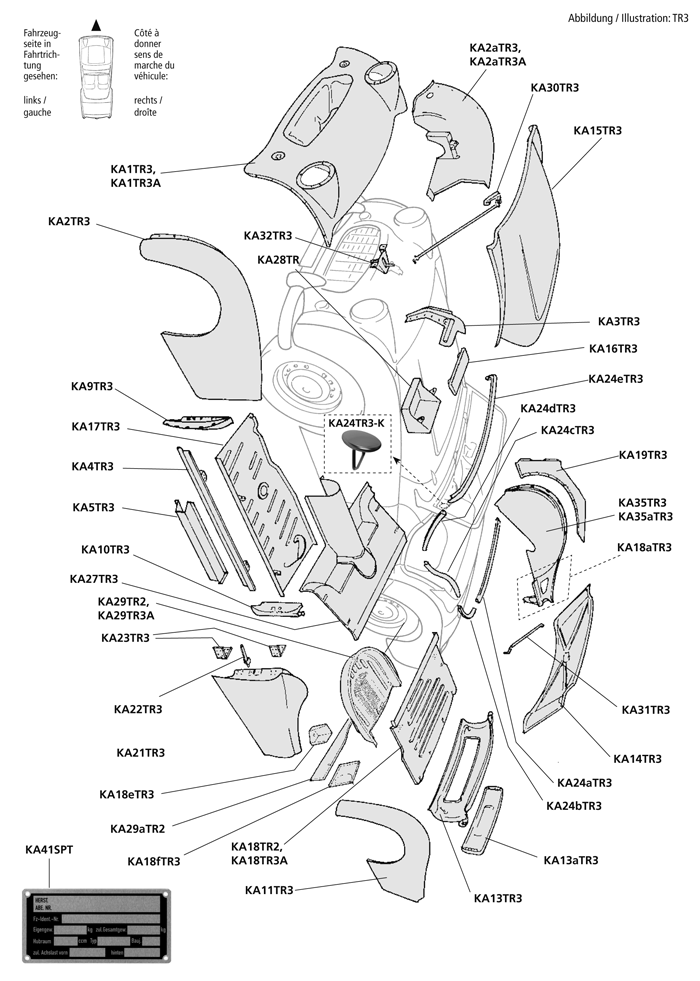

bodywork TR 2-3B |
 |
| SR4 |
Binding screw 1/4x1"UNF (TR 2-3)
required quantities: A/R
|
| SR5 |
cage , for nut 1/4x1"UNF
required quantities: A/R
|
| SR6 |
nut, square, 1/4”UNF
required quantities: A/R
|
| KA1TR3 |
front apron assembly (TR2-3)
required quantities: 1
|
| KA1TR3A |
front apron assembly (TR3A)
required quantities: 1
|
| KA2TR3L |
front wing - LH
required quantities: 1
|
| KA2TR3R |
front wing - RH
required quantities: 1
|
| KA2aTR3L |
wheelarch, inner front , LH (TR 2-3)
required quantities: 1
|
| KA2aTR3R |
wheelarch, inner front , RH (TR 2-3)
required quantities: 1
|
| KA2aTR3AL |
wheelarch inner front (TR3A) LH
required quantities: 1
|
| KA2aTR3AR |
wheelarch, inner front , RH (TR 3A)
required quantities: 1
|
| KA2bTR3L |
repair panel lower front wing LH
required quantities: 1
|
| KA2bTR3R |
repairpanel wing , front ,RH
required quantities: 1
|
| KA3TR3 |
baffle plate
required quantities: 2
|
| KA4TR3L |
inner sill LH
required quantities: 1
|
| KA4TR3R |
inner sill RH
required quantities: 1
|
| KA5TR3L |
outer sill panel LH
required quantities: 1
|
| KA5TR3R |
outer sill panel RH
required quantities: 1
|
| KA9TR3L |
A-post LH
required quantities: 1
|
| KA9TR3R |
´A´post RH
required quantities: 1
|
| KA10TR3L |
B-post LH
required quantities: 1
|
| KA10TR3R |
B-post RH
required quantities: 1
|
| KA11TR3L |
rear wing, LH
required quantities: 1
|
| KA11TR3R |
rear wing, RH
required quantities: 1
|
| KA13TR3 |
rear apron (TR 2-3 until Fg.- Nr. TS18912)
required quantities: 1
|
| KA13TR3A |
rear apron (TR 3 from TS18913 , TR 3A)
required quantities: 1
|
| KA13aTR3 |
lid spare wheel compartment OE: 900483
required quantities: 1
|
| KA14aTR3 |
boot lid assembly (TR2-3)
required quantities: 1
|
| KA14bTR3 |
boot lid assembly (TR 3A > TS60000)
required quantities: 1
|
| KA14cTR3 |
boot lid assembly (TR 3A < TS60001)
required quantities: 1
|
| KA15TR3 |
bonnet
required quantities: 1
|
| KA16TR3 |
vent lid
required quantities: 1
|
| KA17TR3L |
floor LH OE: 950053
required quantities: 1
|
| KA17TR3R |
floor RH OE: 950054
required quantities: 1
|
| KA18TR2 |
boot floor (TR2-TR3A > TS60000)
required quantities: 1
|
| KA18TR3A |
boot floor (TR3A < NO. TS60001 - TR3B) OE: 803767
required quantities: 1
|
| KA18aTR3L |
boot lining panel LH
required quantities: 1
|
| KA18aTR3R |
boot lining panel RH
required quantities: 1
|
| KA18bTR3L |
boot lining panel (TR3A from No. TS60001) LH
required quantities: 1
|
| KA18bTR3R |
boot lining panel (TR3A from No. TS60001) RH
required quantities: 1
|
| KA18eTR3L |
bracket body to chassis LH
required quantities: 1
|
| KA18eTR3R |
bracket body to chassis RH
required quantities: 1
|
| KA18fTR3L |
closing panel LH
required quantities: 1
|
| KA18fTR3R |
closing panel RH
required quantities: 1
|
| KA19TR3L |
quarter panel LH
required quantities: 1
|
| KA19TR3R |
quarter panel RH
required quantities: 1
|
| KA21aTR2L |
door skin (TR 2 >. TS4001) LH
required quantities: 1
|
| KA21aTR2R |
door skin (TR 2 >. TS4001) RH
required quantities: 1
|
| KA21bTR3L |
door skin (TR 2 from TS4002, TR 3) LH
required quantities: 1
|
| KA21bTR3R |
door skin (TR 2 from TS4002, TR 3) RH
required quantities: 1
|
| KA21cTR3L |
door skin (TR 3A, TR 3B) LH
required quantities: 1
|
| KA21cTR3R |
door skin (TR 3A, TR 3B) RH
required quantities: 1
|
| KA22TR3 |
door check assembly
required quantities: 2
|
| KA23aTR3R |
hinge upper RH (TR 2-3, TR 3A up to-No. TS60000)
required quantities: 1
|
| KA23aTR3L |
hinge upper LH (TR 2-3, TR 3A up to .-No TS60000)
required quantities: 1
|
| KA23bTR3R |
hinge upper RH (TR 3A from No. TS60001)
required quantities: 1
|
| KA23bTR3L |
hinge upper LH (TR 3A up to. TS60001)
required quantities: 1
|
| KA23cTR3R |
hinge lower RH (TR 2-3, TR 3A up to TS60000)
required quantities: 1
|
| KA23cTR3L |
hinge lower LH (TR 2-3, TR 3A up to TS60000)
required quantities: 1
|
| KA23dTR3R |
hinge lower RH (TR 3A from. TS60001)
required quantities: 1
|
| KA23dTR3L |
hinge lower LH (TR 3A from TS60001)
required quantities: 1
|
| KA24aTR3 |
capping,steel . Rear middle part
required quantities: 1
|
| KA24bTR3L |
capping,steel, LH
required quantities: 1
|
| KA24bTR3R |
capping,steel, RH
required quantities: 1
|
| KA24cTR3L |
capping, glassfibre, LH
required quantities: 1
|
| KA24cTR3R |
capping behind door RH
required quantities: 1
|
| KA24dTR3L |
door capping, steel, LH
required quantities: 1
|
| KA24dTR3R |
door capping, steel, RH
required quantities: 1
|
| KA24eTR3 |
capping front, glass fibre
required quantities: 1
|
| KA24TR3-K |
button, door edge roll end
required quantities: 4
|
| K25TR3 |
air duct (TR2-3A)
required quantities: 1
|
| KA26aTR2 |
plate,commission number original TR2, english version, w/o picture
required quantities: 1
|
| KA26aTR3 |
plate,commission number original TR3, english version, w/o picture
required quantities: 1
|
| KA26aTR3A |
plate,commission number original TR3A ,english version, w/o picture
required quantities: 1
|
| KA27TR3 |
panel rear floor (TR3A from No. TS60001)
required quantities: 1
|
| KA27aTR3A |
panel rear floor (TR3A from No. TS60001)
required quantities: 1
|
| KA28TR3 |
battery box steel
required quantities: 1
|
| KA28aTR |
battery liner hard plastic
required quantities: 1
|
| KA29TR2 |
pan,spare wheel compartment (TR2-3,TR3A up to.TS60000)
required quantities: 1
|
| KA29aTR2 |
panel inner rear bottom
required quantities: 1
|
| KA29TR3A |
pan,spare wheel compartment (TR3A from No TS60001)
required quantities: 1
|
| KA30TR3 |
stayrod assembly bonnet
required quantities: 1
|
| KA31TR3 |
stayrod assembly boot lid
required quantities: 1
|
| KA32TR3 |
bonnet lift assembly
required quantities: 1
|
| KA35TR3L |
wheelarch LH (TR3A up to no. TS60000)
required quantities: 1
|
| KA35TR3R |
wheelarch RH (TR3A up to no. TS60000)
required quantities: 1
|
| KA35aTR3L |
wheelarch rear (TR3A from No. TS60001) LH
required quantities: 1
|
| KA35aTR3R |
wheelarch rear (TR3A from No. TS60001) RH
required quantities: 1
|
| KA41SPT |
universal identification plate german version
required quantities: 1
|
