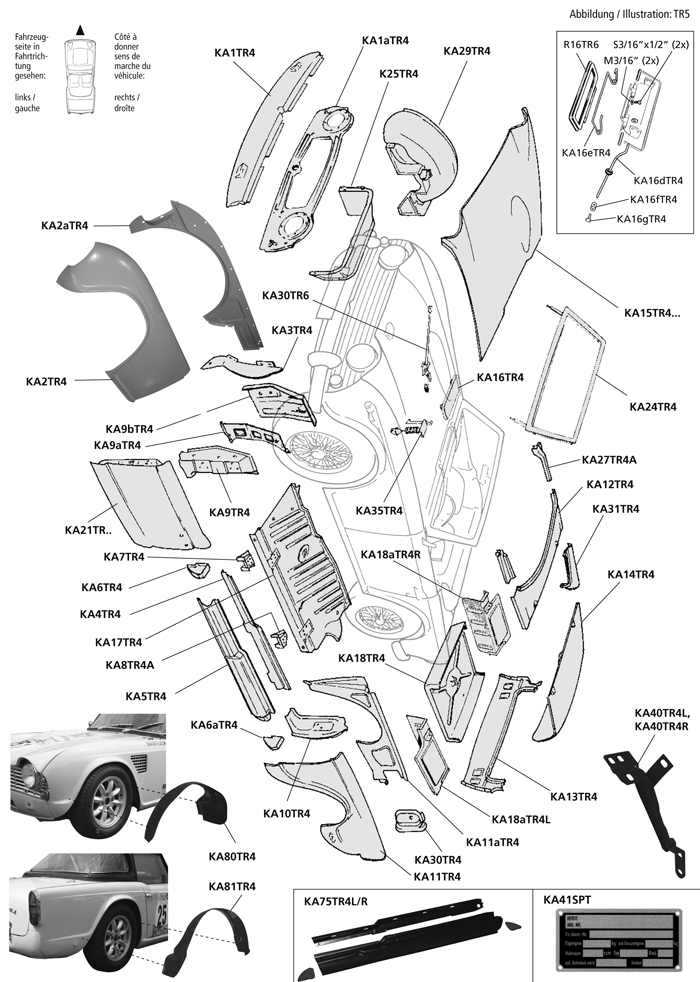

bodywork TR4-5 |
 |
| KA1TR4 |
lower valance, front
required quantities: 1
|
| KA1aTR4 |
front valance, upper part (TR 4)
required quantities: 1
|
| KA1aTR4A |
front valance, upper part (TR 4A)
required quantities: 1
|
| KA1aTR5 |
front valance, upper part (TR 5, TR250)
required quantities: 1
|
| KA2TR4L |
front wing - (TR 4-5) LH OE: 950109
required quantities: 1
|
| KA2TR4R |
front wing - (TR 4-5) RH OE: 950110
required quantities: 1
|
| KA2TR4L-ALU |
ALU- front wing - (TR 4-5) LH OE: 950109-ALU
required quantities: 1
|
| KA2TR4R-ALU |
ALU- front wing - (TR 4-5) RH OE: 950110-ALU
required quantities: 1
|
| KA2aTR4L |
inner front wing - (TR 4-5)-LH OE: 811944
required quantities: 1
|
| KA2aTR4R |
inner front wing - (TR4-5)-RH
required quantities: 1
|
| KA3TR4L |
baffle plate -LH (TR4-6) OE: 750150
required quantities: 1
|
| KA3TR4R |
baffle plate - RH (TR4-6) OE: 750151
required quantities: 1
|
| KA4TR4L |
inner sill (TR 4-6)-LH
required quantities: 1
|
| KA4TR4R |
inner sill - RH (TR 4-6)
required quantities: 1
|
| KA5TR4L |
outer sill panel, LH, (TR 4-6)
required quantities: 1
|
| KA5TR4R |
outer sill panel, RH, (TR 4-6)
required quantities: 1
|
| KA6TR4L |
closing panel , outer sill , front (TR4-6) - LH
required quantities: 1
|
| KA6TR4R |
closing panel, outer sill, front,RH (TR 4-6) - RH
required quantities: 1
|
| KA6aTR4L |
closing panel, rear , outer sill, (TR 4-6) LH
required quantities: 1
|
| KA6aTR4R |
closing panel, rear , outer sill, (TR 4-6) RH
required quantities: 1
|
| KA7TR4 |
bracket floor mounting front (TR4 front and rear, TR4A-6 front)
required quantities: A/R
|
| KA8TR4AL |
bracket floor mounting - rear (TR 4A-6) - LH
required quantities: 1
|
| KA8TR4AR |
bracket floor mounting - rear (TR 4A-6) -RH
required quantities: 1
|
| KA9TR4L |
´A´post outer part (TR4-6) LH
required quantities: 1
|
| KA9TR4R |
´A´post, outer assembly, RH
required quantities: 1
|
| KA9aTR4L |
´A´post inner - LH (TR4-5) LH
required quantities: 1
|
| KA9aTR4R |
inner ´A´post - RH (TR4-6) RH
required quantities: 1
|
| KA9bTR4L |
bulkhead end panel assembly - LH
required quantities: 1
|
| KA9bTR4R |
bulkhead end panel assembly - RH
required quantities: 1
|
| KA10TR4L |
B-post front part - LH
required quantities: 1
|
| KA10TR4R |
B-post front part - RH
required quantities: 1
|
| KA10aTR4L |
B-post rear part (TR 4-6) - LH
required quantities: 1
|
| KA10aTR4R |
B-post rear part (TR 4-6) - RH
required quantities: 1
|
| KA10TR5L |
b-post (TR5-6) , LH
required quantities: 1
|
| KA10TR5R |
b-post, (TR5-6) RH
required quantities: 1
|
| KA11TR4L |
rear wing - LH (TR4-5) OE: 850475
required quantities: 1
|
| KA11TR4R |
rear wing - RH (TR4-5) OE: 850476
required quantities: 1
|
| KA11TR4L-ALU |
ALU- rear wing - LH (TR4-5) OE: 850475-ALU
required quantities: 1
|
| KA11TR4R-ALU |
ALU- rear wing - RH (TR4-5) OE: 850476-ALU
required quantities: 1
|
| KA11aTR4L |
inner rear wing (TR 4-5) - LH OE: 850120
required quantities: 1
|
| KA11aTR4R |
inner rear wing - (TR4-5) RH 850121
required quantities: 1
|
| KA12TR4 |
rear deck , middle part , (TR4-6) OE: 808776RP
required quantities: 1
|
| KA13TR4 |
rear valance (TR4-5)
required quantities: 1
|
| KA14TR4 |
boot lid assembly (TR 4-5) OE: 813650
required quantities: 1
|
| KA15TR4a |
bonnet TR4 up to CT6429
required quantities: 1
|
| KA15TR4b |
bulkhead TR4 form CT6430
required quantities: 1
|
| KA15TR4c |
bonnet TR4 from CT37690, TR4A
required quantities: 1
|
| KA15TR4GFK |
bonnet ,classfibre composite TR4, TR4A
required quantities: 1
|
| KA16TR4 |
vent lid (TR 4-6)
required quantities: 1
|
| R16TR6 |
seal vent lid
required quantities: 1
|
| KA16dTR4 |
rod operating vent lid
required quantities: 1
|
| KA16eTR4 |
spring vent lid
required quantities: 1
|
| KA16fTR4 |
trunnion rod to dash lever
required quantities: 1
|
| KA16gTR4 |
screw clamping trunnion
required quantities: 1
|
| KA17TR4L |
floor , LH,(TR 4-6) OE: 904005
required quantities: 1
|
| KA17TR4R |
floor , RH,(TR 4-6)OE: 904006
required quantities: 1
|
| KA18TR4 |
boot floor (TR4-6)
required quantities: 1
|
| KA18aTR4L |
floor side , LH
required quantities: 1
|
| KA18aTR4R |
floor side, RH
required quantities: 1
|
| KA19TR5L |
door (TR 5-6)
required quantities: 1
|
| KA19TR5R |
door assembly (TR 5-6) , RH
required quantities: 1
|
| KA21TR4L |
door skin (TR 4) LH
required quantities: 1
|
| KA21TR4R |
door skin (TR 4) RH
required quantities: 1
|
| KA21TR6L |
door skin (TR 5-6) LH
required quantities: 1
|
| KA21TR6R |
door skin (TR 5-6) RH
required quantities: 1
|
| KA22TR4L |
door check assembly
required quantities: 1
|
| KA22TR4R |
check strap (TR4 from No. CT22344, TR4A-6)- RH
required quantities: 1
|
| KA22TR4A |
check strap (TR4 from No. CT22344, TR4A-6)-LH
required quantities: 1
|
| KA23TR4 |
hinge (TR 4-6)
required quantities: 4
|
| KA24TR4 |
windscreen frame
required quantities: 1
|
| K25TR4 |
air duct (TR4/4A)
required quantities: 1
|
| KA26aTR4 |
plate,commission number original english version
required quantities: 1
|
| KA26aTR4A |
plate,commission number original english version
required quantities: 1
|
| KA26aTR5 |
plate,commission number original english version
required quantities: 1
|
| KA27TR4AL |
outer part, rear deck, (TR 4A-6) LH
required quantities: 1
|
| KA27TR4AR |
outer part, rear deck, (TR 4A-6) RH
required quantities: 1
|
| KA28aTR |
battery box plastic
required quantities: 1
|
| KA29TR4L |
wheelarch, inner, front LH
required quantities: 1
|
| KA29TR4R |
wheelarch, inner, front RH
required quantities: 1
|
| KA30TR4L |
mounting panel rear light asembly - LH
required quantities: 1
|
| KA30TR4R |
mounting panel rear loght assembly - RH
required quantities: 1
|
| KA30TR6 |
rod , bonnet stay
required quantities: 1
|
| KA31TR4L |
panel boot lid side (TR 4-5) - LH
required quantities: 1
|
| KA31TR4R |
panel boot lid side (TR 4-5) - RH
required quantities: 1
|
| KA35TR4 |
safety catch assembly bonnet (TR4-6)
required quantities: 1
|
| KA41SPT |
universal identification plate german version
required quantities: 1
|
| KA75TR4/L |
set, sill panel 4 pieces LH
required quantities: 1
|
| KA75TR4/R |
set, sill panel 4 pieces RH
required quantities: 1
|
| KA80TR4 |
Wheel Arch Protector Set, Front
required quantities: 1
|
| KA81TR4 |
Wheel Arch Protector Set, Rear
required quantities: 1
|
