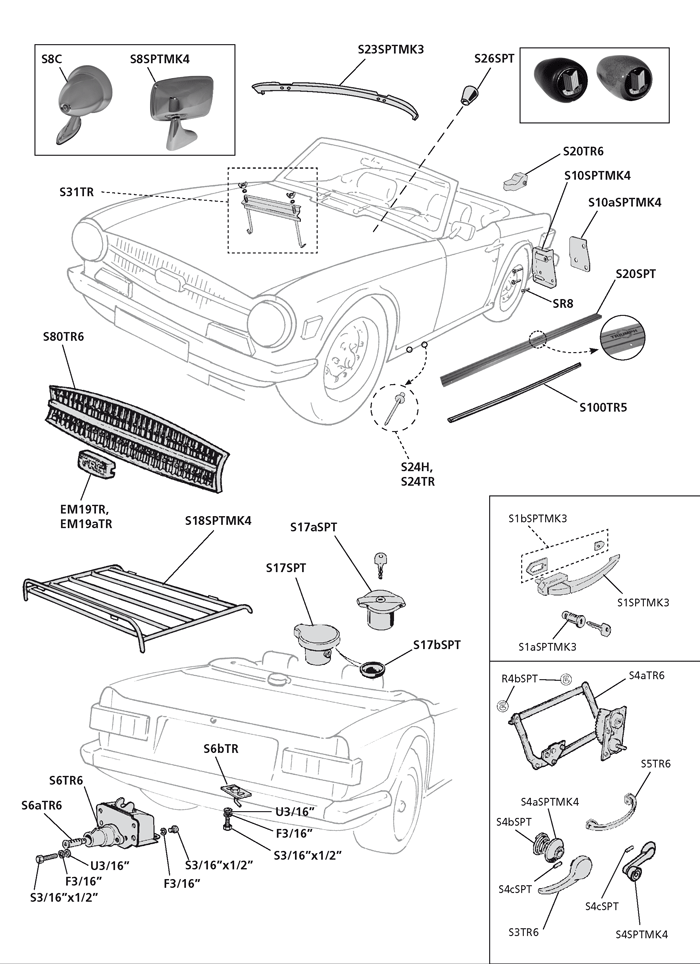

finishers ( lock set ) TR6 |
 |
| S1SPTMK3 |
door handle exterior GHN3 57986 to GHN4 138400 *)
required quantities: 2
|
| S1aSPTMK3 |
replacement lock set
required quantities: 1
|
| S1bSPTMK3 |
Gasket, handle to door, (set for 2 doors)
required quantities: 1
|
| S3TR6 |
door handle inside
required quantities: 2
|
| S4SPTMK4 |
window winder handle (TR250-TR5)
required quantities: 5
|
| S4aTR6L |
window winder handle - LH
required quantities: 1
|
| S4aTR6R |
window winder handle - RH
required quantities: 1
|
| S4aSPTMK4 |
ecutcheon door handle und window winder handle
required quantities: 4
|
| S4bSPT |
spring for d
required quantities: 4
|
| R4bSPT |
retainer
required quantities: 4
|
| S4cSPT |
pin door handle + window winder handle
required quantities: 4
|
| S5TR6 |
handle interior chrom
required quantities: 2
|
| S6TR6 |
boot lid lock
required quantities: 1
|
| S6aTR6 |
locking device, boot lid lock
required quantities: 1
|
| S6bTR6 |
lock striker assembly
required quantities: 1
|
| S8SPTMK4LS |
mirror outer, square, black - LH
required quantities: 1
|
| S8SPTMK4RS |
mirror outer, square, black - RH
required quantities: 1
|
| S8SPTMK4LC |
mirror, rectangle, chrome-LH
required quantities: 1
|
| S8SPTMK4RC |
mirror, rectangle, chrome-RH
required quantities: 1
|
| S8C |
sport outer mirror, model "Talbot"
required quantities: 2
|
| SR8 |
countersunk screw 1/4x1"UNF
required quantities: A/R
|
| S10SPTMK4L |
door striker dovetail Roadster from GHN/D4 138401
required quantities: 1
|
| S10SPTMK4R |
door striker dovetail Roadster from GHN/D4 138401
required quantities: 1
|
| S10aSPTMK4 |
gasket door striker dovetail
required quantities: 2
|
| S17SPT |
filler cap
required quantities: 1
|
| S17aSPT |
filler cap lockable
required quantities: 1
|
| S17bSPT |
seal insider filler cap
required quantities: 1
|
| S17cSPT |
filler hose
required quantities: 1
|
| S18SPTMK4 |
boot rack stainless steel
required quantities: 1
|
| EM19TR |
badge,printed,foil
required quantities: 1
|
| EM19aTR |
badge ,TR6,enamelled
required quantities: 1
|
| S20SPT |
treshold plate with ´TRIUMPH`script
required quantities: 2
|
| S20TR6L |
chrome cap on b-post - LH
required quantities: 1
|
| S20TR6R |
chrome cap on b-post - RH
required quantities: 1
|
| S23SPTMK3 |
capping strip
required quantities: 1
|
| S24H |
rivet clip, for wing and door moulding, thin
required quantities: 16
|
| S24TR |
rivet clip , for wing and door moulding, wide
required quantities: 16
|
| S26SPT |
gear knob with TRIUMPH badge wood
required quantities: 1
|
| S26SPTL |
gear knob with TRIUMPH badge leather
required quantities: 1
|
| R28SPT |
packing bracket rubber spacer
required quantities: 4
|
| S31TR |
bracket battery, stainless steel, polished
required quantities: 1
|
| S80TR6 |
grille
required quantities: 1
|
| S100TR5 |
moulding,sill finisher, thin (TR250-TR5)
required quantities: 2
|
| S100TR6 |
moulding,sill finisher, wide (ab CR1/CF1)
required quantities: 2
|
| |

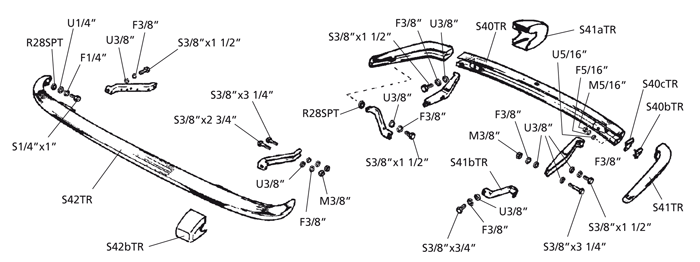

finishers ( bumpers) TR 6 |
 |
| R28SPT |
packing bracket rubber spacer
required quantities: A/R
|
| S40TR |
rear bumper centre to CP77718
required quantities: 1
|
| S40aTR |
rear bumper centre from CR1/CF1
required quantities: 1
|
| S40bTR |
joint washer, centre to corner
required quantities: 2
|
| S40cTR |
rubber joint washer, centre to corner
required quantities: 2
|
| S41TRL |
rear bumper corner (LH)
required quantities: 1
|
| S41TRR |
rear bumper corner (RH)
required quantities: 1
|
| S41aTRL |
rubber overrider (USA TR6 late) - LH
required quantities: 1
|
| S41aTRR |
rubber overrider (USA TR6 late) - RH
required quantities: 1
|
| S41bTRL |
outrigger bumper LH
required quantities: 1
|
| S41bTRR |
outrigger bumper RH
required quantities: 1
|
| S42TR |
overrider front
required quantities: 1
|
| S42aTR |
bumper front ( USA from CF27001)
required quantities: 1
|
| S42bTR |
overrider (USA TR6 late)
required quantities: 2
|
