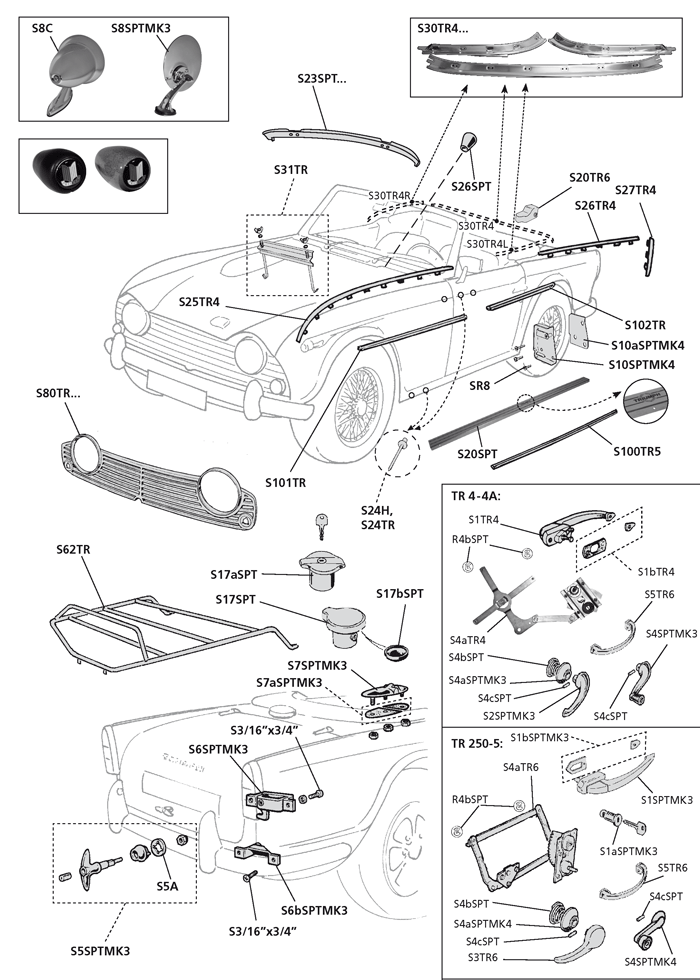

finisher ( lock set) TR4-5 |
![FKG_1050210000.png](http://www.historic-cars.cz/fotky4911/britske_vozy_volvo/01/FKG_1050210000.png) |
S1TR4 |
door handle exterior (TR4-4A)
required quantities: 2
|
S1SPTMK3 |
door handle exterior (TR250-TR5)
required quantities: 2
|
S1aTR4 |
replacement lock set (TR4-4A)
required quantities: 1
|
S1aSPTMK3 |
replacement lock set (TR250-TR5)
required quantities: 1
|
S1bTR4 |
gasket set for both doors ( TR4-4A)
required quantities: 1
|
S1bSPTMK3 |
Gasket, handle to door, (set for 2 doors)
required quantities: 1
|
S2SPTMK3 |
door handle interior (TR4-4A)
required quantities: 2
|
S3TR6 |
handle inside (TR250-TR5)
required quantities: 2
|
S4SPTMK3 |
window winder handle
required quantities: 2
|
S4SPTMK4 |
window winder handle (TR250-TR5)
required quantities: 2
|
S4aTR4L |
window winder mechanism (TR4-4A) - LH
required quantities: 1
|
S4aTR4R |
window winder mechanism (TR4-4A) - RH
required quantities: 1
|
S4aTR6L |
window winder mechanism (TR250-TR5) - LH
required quantities: 1
|
S4aTR6R |
window winder mechanism (TR250-TR5) - RH
required quantities: 1
|
S4aSPTMK3 |
escutcheon (TR4-4A)
required quantities: 4
|
S4aSPTMK4 |
escutcheon (TR250-TR5)
required quantities: 4
|
S4bSPT |
spring
required quantities: 4
|
R4bSPT |
retainer window channel to winder mechanism
required quantities: 4
|
S4cSPT |
pin , attaching handle
required quantities: 4
|
S5SPTMK3 |
boot lid lock
required quantities: 1
|
S5A |
rubber gasket boot lid lock
required quantities: 1
|
S5TR6 |
Handle interior chrom
required quantities: 2
|
S6SPTMK3 |
boot lid lock , lower
required quantities: 1
|
S6bSPTMK3 |
lower bracket boot lid lock - lower
required quantities: 1
|
S7SPTMK3L |
boot hinge - LH
required quantities: 1
|
S7SPTMK3R |
boot hinge - RH
required quantities: 1
|
S7aSPTMK3 |
gasket boot hinge
required quantities: 2
|
S8SPTMK3L |
outer mirror, "Lucas" type, circle LH
required quantities: 1
|
S8SPTMK3R |
outer mirror, "Lucas" type, circle RH
required quantities: 1
|
S8SPTMK4LS |
outer mirror , square black - LH
required quantities: 1
|
S8SPTMK4RS |
outer mirror, square black - RH
required quantities: 1
|
S8SPTMK4LC |
mirror, rectangle, chrome - LH
required quantities: 1
|
S8SPTMK4RC |
mirror, rectangle, chrome - RH
required quantities: 1
|
S8C |
sport outer mirror, model "Talbot"
required quantities: 2
|
SR8 |
countersunk screw 1/4x1"UNF
required quantities: A/R
|
S10SPTMK4L |
door striker (TR250-TR5)-LH
required quantities: 1
|
S10SPTMK4R |
door striker (TR250-TR5)-RH
required quantities: 1
|
S10aSPTMK4 |
gasket door striker dovetail
required quantities: 2
|
S17SPT |
filler cap
required quantities: 1
|
S17aSPT |
filler cap, lockable
required quantities: 1
|
S17bSPT |
seal, inside filler cap
required quantities: 1
|
S17cSPT |
filler hose
required quantities: 1
|
S20SPT |
treshold plate "TRIUMPH"
required quantities: 2
|
S20TR6L |
chrome cap on b-post -LH (TR4A,TR250,TR5)
required quantities: 1
|
S20TR6R |
chrome cap on b.post - RH (TR4A,TR250,TR5)
required quantities: 1
|
S23SPTMK1 |
capping strip ( TR4-TR4A)
required quantities: 1
|
S23SPTMK3 |
capping strip (TR250-TR5)
required quantities: 1
|
S24H |
rivet clip, for wing and door moulding, thin
required quantities: 16
|
S24TR |
rivet clip , for wing and door moulding, wide
required quantities: 16
|
S26SPT |
gear knpb with TRIUMPH badge wood
required quantities: 1
|
S26SPTL |
gear knob with TRIUMPH badge leather
required quantities: 1
|
S25TR4 |
wing beading front
required quantities: 2
|
S26TR4 |
wing beading rear
required quantities: 2
|
S27TR4 |
moulding ,finisher under rear light
required quantities: 2
|
S30TR4L |
moulding, hood fastener, lh
required quantities: 1
|
S30TR4R |
moulding, hood fastener, rh
required quantities: 1
|
S30TR4 |
moulding, hood fastener, centre
required quantities: 1
|
S31TR |
bracket, battery stainless steel, polished
required quantities: 1
|
S62TR |
boot rack stainless steel
required quantities: 1
|
S80TR4 |
grille (TR4)
required quantities: 1
|
S80TR4A |
grille (TR4A)
required quantities: 1
|
S80TR5 |
grill (TR250-TR5)
required quantities: 1
|
S100TR5 |
moulding, sill finisher, thin (TR250-TR5)
required quantities: 1
|
S101TR4AL |
moulding,wing, thin (LH) (TR4A)
required quantities: 1
|
S101TR4AR |
moulding,wing, thin (RH) (TR4A)
required quantities: 1
|
S101TR5L |
moulding, wing, wide (LH) ((TR250-TR5)
required quantities: 1
|
S101TR5R |
moulding, wing , wide (RH) (TR250-TR5)
required quantities: 1
|
S102TR4A |
moulding, door ,thin (TR4A)
required quantities: 2
|
S102TR5L |
moulding,door wide LH (TR250-TR5)
required quantities: 1
|
S102TR5R |
moulding,door wide RH (TR250-TR5)
required quantities: 1
|
|

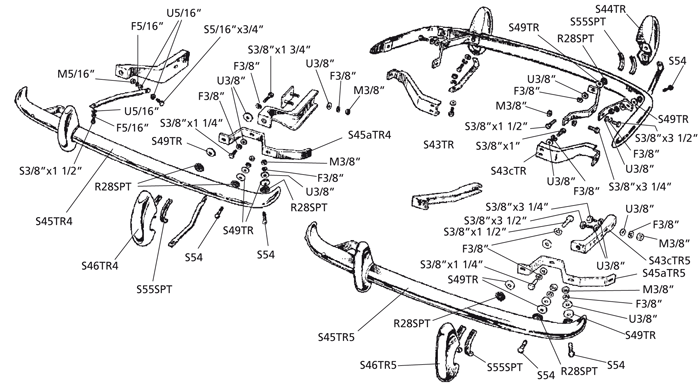

finishers (bumpers) TR4-5 |
![FKG_1050220000.png](http://www.historic-cars.cz/fotky4911/britske_vozy_volvo/01/FKG_1050220000.png) |
S43TR |
bumper bar rear
required quantities: 1
|
S43aTR4 |
bracket bumper support, inner (TR4)
required quantities: 2
|
S43aTR5 |
bracket bumper support, inner (TR4A,TR250,TR5)
required quantities: 2
|
S43bTR4 |
outer bracket bumper support (TR4)
required quantities: 2
|
S43bTR5 |
Bracket bumper support (TR4A,TR250,TR5)
required quantities: 2
|
S43cTR4 |
bracket,bumper support (TR4)
required quantities: 2
|
S43cTR5L |
bracket bumper support (TR4A,TR250,TR5) LH
required quantities: 1
|
S43cTR5R |
bracket,bumper support (TR4A,TR250,TR5) RH
required quantities: 1
|
S44TRL |
overrrider rear LH
required quantities: 1
|
S44TRR |
overrrider rear RH
required quantities: 1
|
S44aTR4L |
bracket support overrider LH (TR4)
required quantities: 1
|
S44aTR4R |
bracket support overrider RH (TR4)
required quantities: 1
|
S44aTR5 |
bracket support overrider (TR4A,TR250,TR5)
required quantities: 2
|
S45TR4 |
front bumper (TR4)
required quantities: 1
|
S45aTR4 |
bracket bumper support (TR4)
required quantities: 2
|
S45aTR5 |
bracket bumper support (TR4A,TR250,TR5)
required quantities: 2
|
S45TR5 |
front bumper (TR4A,TR250,TR5)
required quantities: 1
|
S46TR4 |
overrider front (TR4) OE: 705920
required quantities: 2
|
S46TR5L |
overrider front (TR4A,TR250,TR5)LH
required quantities: 1
|
S46TR5R |
overrider front RH (TR4A,TR250,TR5)
required quantities: 1
|
S49TR |
convex washer between bumper and bracket
required quantities: 8
|
S54 |
bolt,chrome
required quantities: 8
|
S55SPT |
overrider moulding strip
required quantities: 8
|
