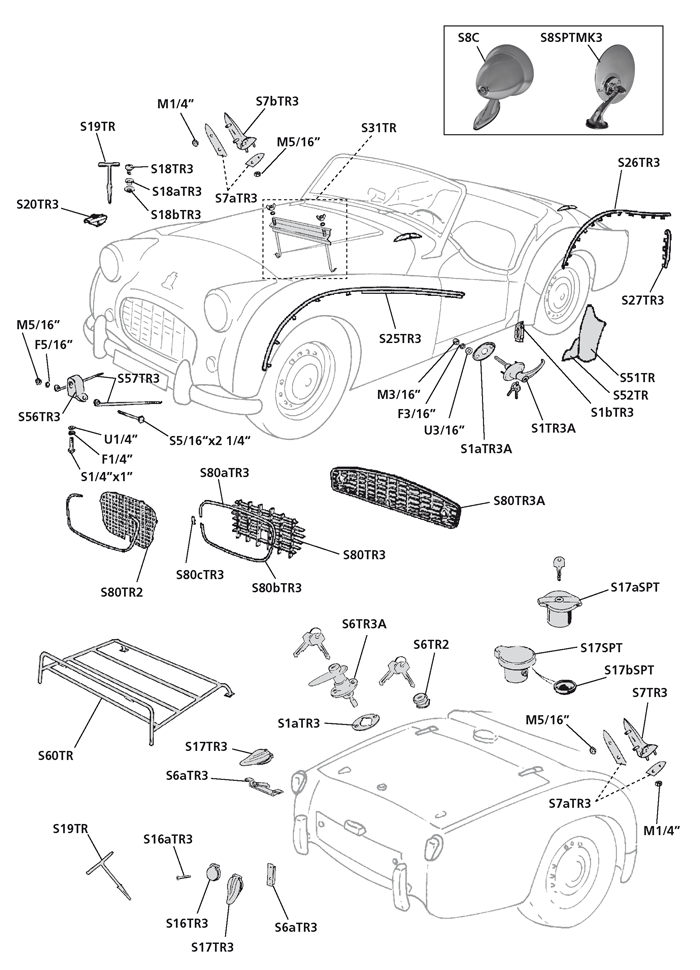

finishers (lock set) TR 2-3 |
 |
| S1TR3A |
handle outer, lock included (TR3A), pair
required quantities: 1
|
| S1aTR3A |
door handle boot lid gasket
required quantities: 2
|
| S1bTR3 |
striker plate, door latch
required quantities: 2
|
| S6TR2 |
boot lid lock (TR2/3)
required quantities: 1
|
| S6TR3A |
boot lid lock (TR3A)
required quantities: 1
|
| S6aTR3L |
boot lid lock lower LH
required quantities: 1
|
| S6aTR3R |
boot lid lock lower RH
required quantities: 1
|
| S7TR3L |
hinge boot lid - LH
required quantities: 1
|
| S7TR3R |
hinge boot lid - RH
required quantities: 1
|
| S7aTR3 |
gasket boot lid / bonnet hinge
required quantities: 2
|
| S7bTR3L |
bonnet hinge - LH
required quantities: 1
|
| S7bTR3R |
bonnet hinge - RH
required quantities: 1
|
| S8SPTMK3L |
outer mirror, "Lucas" type, circle LH
required quantities: 1
|
| S8SPTMK3R |
outer mirror, "Lucas" type, circle RH
required quantities: 1
|
| S8C |
sport outer mirror, model "Talbot"
required quantities: 2
|
| S8D |
clip-on outer mirror, circle, flat (w/o fig.)
required quantities: 2
|
| S8E |
clip-on outer mirror, ovale, flat (w/o fig.)
required quantities: 2
|
| S16TR3 |
escutcheon round style
required quantities: 1
|
| S16aTR3 |
SCREW, escutcheon (for S16/S17TR3)
required quantities: A/R
|
| S17TR3 |
escutcheon drop style
required quantities: 2
|
| S17SPT |
filler cap
required quantities: 1
|
| S17aSPT |
filler cap lockable
required quantities: 1
|
| S17bSPT |
seal in filler cap
required quantities: 1
|
| S17cSPT |
filler hose ( w/o picture)
required quantities: 1
|
| S18TR3 |
dzus fastener, bonnet
required quantities: 2
|
| S18aTR3 |
guide fastener bonnet
required quantities: 2
|
| S18bTR3 |
washer securing fastener
required quantities: 2
|
| S19TR |
´T´key for dzus fastener
required quantities: 1
|
| S20TR3 |
plate dzus fastener bonnet
required quantities: 2
|
| S25TR3 |
wing beading front
required quantities: 2
|
| S26TR3 |
wing beading rear
required quantities: 2
|
| S27TR3 |
wing bead short
required quantities: 2
|
| S31TR |
bracket set battery , stainless steel
required quantities: 1
|
| S51TRL |
stone guard large - LH
required quantities: 1
|
| S51TRR |
stone guard large - RH
required quantities: 1
|
| S52TRL |
stone guard small - LH
required quantities: 1
|
| S52TRR |
stone guard small - RH
required quantities: 1
|
| S56TR3 |
guide starting handle
required quantities: 1
|
| S57TR3 |
stayrod starting guide
required quantities: 1
|
| S60TR |
boot rack stainless (TR2-3)
required quantities: 1
|
| S80TR2 |
grille (TR2)
required quantities: 1
|
| S80TR3 |
grille (TR3)
required quantities: 1
|
| S80aTR3 |
grille surround bright upper
required quantities: 1
|
| S80bTR3 |
grille surround bright lower
required quantities: 1
|
| S80cTR3 |
cover moulding joint
required quantities: 1
|
| S80TR3A |
grille(TR3A/TR3B)
required quantities: 1
|
| |
chrome finishers (bumper) TR2-3 |
 |
| S47TR2 |
bumper bar front (TR2-3 to TS22013)
required quantities: 1
|
| S47aTR2L |
bumper iron inner (TR2-3 to TS22013) LH
required quantities: 1
|
| S47aTR2R |
bumper iron inner (TR2-3 to TS22013) RH
required quantities: 1
|
| S47bTR2L |
bumper iron outer (TR2-3 to TS22013) LH
required quantities: 1
|
| S47bTR2R |
bumper iron outer (TR2-3 to TS22013) RH
required quantities: 1
|
| S47TR3 |
bumper bar front (TR3-3B to TS22014)
required quantities: 1
|
| S47aTR3 |
bumper bracket (TR3-3B to TS22014)
required quantities: 2
|
| S47bTR3L |
bracket overider (TR3-3B to TS22014) - LH
required quantities: 1
|
| S47bTR3R |
bracket overrider (TR3-3B from TS22104) - RH
required quantities: 1
|
| S47cTR3 |
bumper bracket to chassis(TR3-3B from TS22104)
required quantities: 2
|
| S48TR2 |
overrider front (TR2-3 from TS22013)
required quantities: 2
|
| S48TR3 |
overrider front (TR2-3B to TS22014)
required quantities: 2
|
| S48bTR |
overrider rear (TR2-3B)
required quantities: 2
|
| S48aTR |
bracket overrider
required quantities: 2
|
| S48cTR |
bolt overrider
required quantities: 8
|
| S48dTR |
spacer
required quantities: 2
|
| S49TR |
convex washer between bumper and bracket
required quantities: 8
|
| S54 |
bolt,chrome
required quantities: 8
|
| S55SPT |
overrider moulding strip
required quantities: 8
|
| |

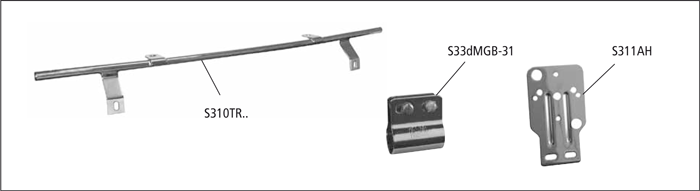

Badge bar |
 |
| S33DMGB-31 |
badge clip
required quantities: 1
|
| S310TR2 |
Badge bar TR2-3
required quantities: 1
|
| S310TR3A |
Badge bar TR3A-TR3B
required quantities: A/R
|
| S311AH |
badge plate
required quantities: A/R
|
