Karburátor SU


Obj. číslo Popis Ilustrace
klikněte pro zvětšení

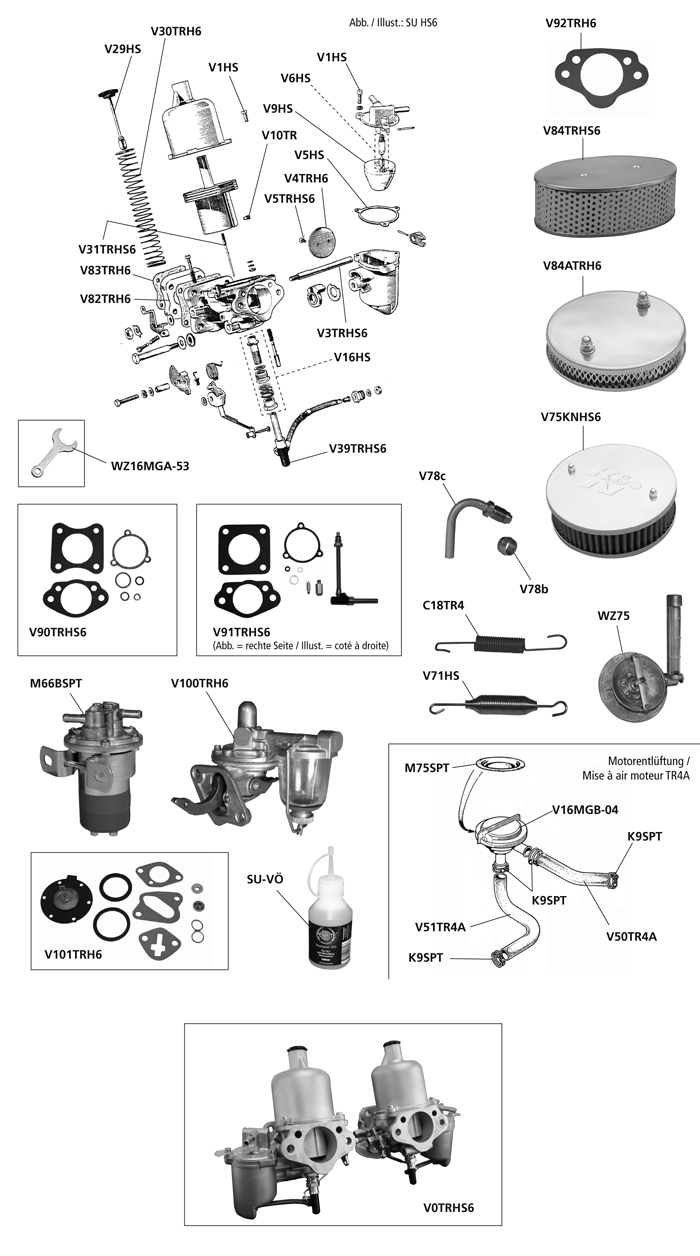

SU-carburetter TR 2-4 (SU H6/H4)
V1TRH6 exchange carburetter assembly (both carbs)
required quantities: 1
V1HS screw, chamber to body
required quantities: 12
V3TRH6 throttle shaft, drive shaft
required quantities: 2
V4TRH6 throttle disk, throttle disc
required quantities: 2
V5HS6 screw, throttle disc
required quantities: 4
V6TR coupling assembly
required quantities: 2
V6HS Jet, float needle
required quantities: 2
V10TR screw, needle locking
required quantities: 2
WZ16MGA-53 Mixture adjusting tool
required quantities: 1
C18TR4 return spring
required quantities: 1
V28TRH6 carburettor damper (brass)
required quantities: 2
V30TRH6 damper spring SU H6/ HS6 red
required quantities: 2
V31TRH6KD needle, jet (KD)
required quantities: 2
V31TRH6RF needle, jet (RF)
required quantities: 2
V31TRH6SM needle, jet (SM)
required quantities: 2
V31TRH6TW needle, jet (TW)
required quantities: 2
V38aTR bush, throttle shaft
required quantities: 4
V39TRH6 jet bearing
required quantities: 1/1
V48TRH6 float
required quantities: 2
V54TRH6 gasket float chamber/lid
required quantities: 2
M66bSPT fuel pump, electrical 12V
required quantities: 1
V71HS carburetter spring throttle return
required quantities: 2
V75KNHS6 sport air filter “KN” for SU carburetter
required quantities: 2
V77TRH6L link rod 3/16"LH
required quantities: A/R
V77TRH6R link rod 3/16" RH
required quantities: A/R
V77aTRH6 fork, rod end
required quantities: 2
V77SPT fuel hose Ø 6 mm, per meter
required quantities: A/R
V78SPT fuel hose Ø 8 mm, per meter
required quantities: A/R
V78a Fuel line Ø 8 mm, per meter
required quantities: A/R
V78b olive
required quantities: 1
V78c connector 90° fuel pipe
required quantities: 1
V82TRH6 insulating block H6
required quantities: 2
V83TRH6 gasket H6
required quantities: 4
V84TRH4 Air filter, wire mesh H4
required quantities: 1
V84TRH6 air filter original H6
required quantities: 2
V84aTRH6 Air filter, chrome, SU H6 and HS6
required quantities: 2
V90TRH6 carburettor gasket pack (Contents: no.V02/05/11/56
required quantities: 2
V91TRH6 repair lit, 1 carburetter, incudes jet bearing,needle an seat , all gaskets
required quantities: 2
V92TRH6 gasket, air filter to carburetter
required quantities: 2
V100TRH6 fuel pump OE: 109637
required quantities: 1
V101TRH6 fuel pump rebuilt set
required quantities: 1
V105TR3 bush throttle rods to body
required quantities: 2
WZ75 Carburettor synchronizer
required quantities: A/R
SU-VÖ Oil, SU carburettors, 150 ml
required quantities: A/R

SU. carburetter TR 4A-6 (SU HS6)
V0TRHS6 exchange carburetter , pair
required quantities: 1
V0TRHS6a extra charge: Pair carburetter HS6 w/o exchange
required quantities: 1
V0TRHS6/V throttle and choke assembly
required quantities: 1
V1HS screw, chamber to body
required quantities: 12
V3TRHS6 throttle shaft
required quantities: 2
V4TRH6 throttle disk, throttle disc
required quantities: 2
V5HS6 screw, throttle disc
required quantities: 2
V5HS gasket, float chamber lid
required quantities: 2
V6TR coupling assembly
required quantities: 2
V6HS Jet, float needle
required quantities: 2
V9HS float
required quantities: 2
V10TR screw, needle locking
required quantities: 2
V16HS Lift and spring assembly
required quantities: 2
V16MGB-04 Emission control valve
required quantities: 1
WZ16MGA-53 Mixture adjusting tool
required quantities: 1
C18TR4 return spring
required quantities: 1
V29HS damper
required quantities: 2
V30TRH6 damper spring SU H6/ HS6 red
required quantities: 2
V31TRH6KD needle, jet rigid (KD)
required quantities: 2
V31TRH6SM needle, jet rigid (SW)
required quantities: 2
V31TRH6TW needle, jet rigid (TW)
required quantities: 2
V31TRHS6BAE needle,JET resiliant (BAE)
required quantities: 2
V31TRHS6BAM needle,JET resiliant (BAM)
required quantities: 2
V31TRHS6BDB needle,JET resiliant (BDB)
required quantities: 2
V31TRHS6BDM needle, JET resiliant (BDM)
required quantities: 2
V31TRHS6BDQ needle, JET resiliant (BDQ)
required quantities: 2
V38aTR bush, throttle shaft
required quantities: 4
V39TRHS6L jet assembly left HS6 TR4A/Volvo
required quantities: 1
V39TRHS6R jet assembly right HS6 TR4A/Volvo
required quantities: 1
V50TR4A hose, rocker cover to valve
required quantities: 1
V51TR4A hose, valve to inlet manifold adaptor
required quantities: 1
M66bSPT fuel pump, electrical 12V
required quantities: 1
V70HS ball joint 1/4”
required quantities: A/R
V71HS carburetter spring throttle return
required quantities: 2
M75SPT diaphragm breather valve
required quantities: 1
V75KNHS6 sport air filter “KN” for SU carburetter
required quantities: 2
V77SPT fuel hose Ø 6 mm, per meter
required quantities: A/R
V78SPT fuel hose Ø 8 mm, per meter
required quantities: A/R
V78a Fuel line Ø 8 mm, per meter
required quantities: A/R
V78b olive
required quantities: 1
V78c connector 90° fuel pipe
required quantities: 1
V82TRH6 insulating block H6
required quantities: 2
V83TRH6 gasket H6
required quantities: 4
V84TRHS6 air filter original (w/o picture)
required quantities: 2
V84aTRH6 Air filter, chrome, SU H6 and HS6
required quantities: 2
V90TRHS6 carburetter gasket set (1 carburetter)
required quantities: 2
V91TRHS6L carburetter rebuilt set (1 carburetter) LH
required quantities: 1
V91TRHS6R carburetter rebuilt set (1 carburetter) RH
required quantities: 1
V92TRH6 gasket, air filter to carburetter
required quantities: 2
V100TRH6 fuel pump OE: 109637
required quantities: 1
V101TRH6 fuel pump rebuilt set
required quantities: 1
WZ75 Carburettor synchronizer
required quantities: A/R
SU-VÖ Oil, SU carburettors, 150 ml
required quantities: A/R
