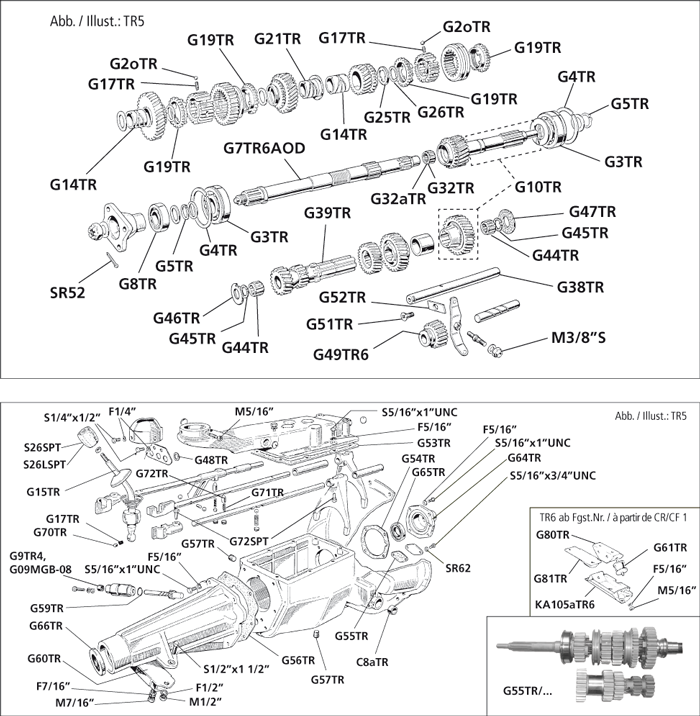

gearbox TR2-6 |
 |
| G01TR3 |
exchange gearbox (TR2-3A up to TS50000)
required quantities: 1
|
| G01TR3A |
exchange gearbox (TR3A from TS50000 on) starter motor with open starter gear
required quantities: 1
|
| G01TR4 |
exchange gearbox (TR4-4A)
required quantities: 1
|
| G01TR6 |
exchange gearbox (TR5-6)
required quantities: 1
|
| G02TR |
exchange gearbox fit to A-Type Overdrive
required quantities: 1
|
| G03TR |
exchange gearbox fit to J-Type Overdrive
required quantities: 1
|
| G04TR |
exchange A-Type Overdrive assembly
required quantities: 1
|
| G05TR |
exchange J-Type Overdrive assembly
required quantities: 1
|
| G06TR |
for all non-overdrive car owners: overdrive conversion kit, J-Type, mounting bracket
required quantities: 1
|
| G06aTR |
overdrive conversion kit,A - Overdrive (exchange standard gearbox)
required quantities: 1
|
| E145SPT |
OD- switch on steering column
required quantities: 1
|
| E146 |
escutcheon, indicator and overdrive switch
required quantities: 1
|
| W8 |
speedo angle drive
required quantities: 1
|
| G3TR |
mainbearing
required quantities: 2
|
| G4TR |
circlip mainbearing
required quantities: 2
|
| G5TR |
circlip
required quantities: 2
|
| G7TR3AOD |
mainshaft a-overdrive (TR3) for spigot bearing >TS26825
required quantities: 1
|
| G7TR4AOD |
mainshaft a-overdrive (TR4-6) , closed cage bearing
required quantities: 1
|
| G7TR6AOD |
main shaft A-overdrive (TR6) open cage bearing Ø 21 mm
required quantities: 1
|
| G7TR6JOD |
main shaft J-overdrive (TR6)
required quantities: 1
|
| G8TR |
bearing
required quantities: 1
|
| G9TR4 |
Seal pinion (TR2-4A)
required quantities: 1
|
| G09MGB-08 |
Seal pinion (TR5-6 STD + Overdrive)
required quantities: 1
|
| G10TR4 |
constant pinion shaft assembly , closed spigot bearing, long spigot bush shaft
required quantities: 1
|
| G10TR6 |
constant pinion shaft assembly , open spigot bearing, short spigot bush shaft
required quantities: 1
|
| G14TR |
bush 1.gear / 3. gear
required quantities: 1
|
| G17TR |
spring
required quantities: 6
|
| G20SPT |
ball
required quantities: A/R
|
| G19TR |
synchro cup
required quantities: A/R
|
| G21TR |
bush 2nd gear brass (TR2-6)
required quantities: A/R
|
| G21aTR |
bush 2nd gear steel (TR6 late )
required quantities: 1
|
| G25TR |
retaining clip 3rd gear
required quantities: 1
|
| G26TR |
circlip mainshaft
required quantities: 1
|
| G39TR3 |
lay gear (TR2-3A)
required quantities: 1
|
| G39TR4 |
lay gear, with 16 tooth 1st gear (TR4-6)
required quantities: 1
|
| G39TR6 |
lay gear ,with 17 tooth 1st gear (TR6 late models)
required quantities: 1
|
| C8aTR |
bush clutch operating shaft
required quantities: 2
|
| G15TR4 |
Change speed lever TR 2-4A
required quantities: 1
|
| G15TR6 |
Change speed lever TR5-TR6
required quantities: 1
|
| G15TR/OD |
Change speed lever overdrive TR2000/TR2500
required quantities: 1
|
| G17TR |
spring
required quantities: 1
|
| S26SPT |
gear knob with TRIUMPH badge wood
required quantities: 1
|
| S26SPTL |
gear knob with TRIUMPH badge leather
required quantities: 1
|
| G32TR |
bearing countershaft "closed cage"
required quantities: 1
|
| G32aTR |
bearing countershaft "open cage"
required quantities: 1
|
| G32TR3 |
bush, input shaft (TR2-3)
required quantities: 1
|
| G38TR3 |
laygear
required quantities: 1
|
| G38TR6 |
laygear (TR4-6)
required quantities: 1
|
| G44TR3 |
needle bearing
required quantities: 48
|
| G44TR |
laygear bearing , only available in "closed cage" version (TR4-6)
required quantities: 2
|
| G45TR |
circlip
required quantities: 1
|
| G46TR |
thrust washer
required quantities: 1
|
| G47TR |
thrust washer
required quantities: 1
|
| G48TR |
o-ring gear lever
required quantities: 3
|
| G49TR6 |
reverse gear
required quantities: 1
|
| G51TR |
bolt
required quantities: 1
|
| G52TR |
plate locking countershaft and reverse gear spindle
required quantities: 1
|
| G53TR |
gasket top cover
required quantities: 1
|
| G54TR |
gasket front seal housing
required quantities: 1
|
| G55TR |
gasket layshaft end cover
required quantities: 1
|
| G55TR/J-OD |
gear set, spur teeth , wit dog rings (TR4-6, TR2000) standard gearbox with J-Type gearbox
required quantities: 1
|
| G55TR/STD |
gear set, spur teeth , wit dog rings (TR4-6, TR2000) standard gearbox
required quantities: 1
|
| G56TR |
gasket rear extension
required quantities: 1
|
| G57TR |
oil drain plug
required quantities: 1
|
| G57aTR |
drain plug, magnetic
required quantities: 1
|
| G59TR |
o-ring speedocable
required quantities: 1
|
| G59aTR |
speedo gear (all CC and CD Gearboxes)
required quantities: 1
|
| G60TR |
mounting rubber
required quantities: 1
|
| G61TR |
mounting rubber round
required quantities: 2
|
| G64TR |
front seal housing
required quantities: 1
|
| G65TR |
frontseal
required quantities: 1
|
| G66TR |
bearing gasket outlet
required quantities: 1
|
| G70TR |
pin, gear lever
required quantities: 1
|
| G71TR |
SPRING, 3rd & 4th speed selector
required quantities: 1
|
| G72TR |
PLUNGER, 3rd & 4th speed selector
required quantities: 1
|
| G72SPT |
screw, selectors and forks to shafts
required quantities: 1
|
| G80TR6 |
BRACKET, flexible mounting to gearbox
required quantities: 1
|
| G81TR6 |
BRACKET, gearbox to mounting bracket
required quantities: 1
|
| KA105aTR6 |
CROSSMEMBER, gearbox mounting
required quantities: 1
|
| GE |
hypoid Gearbox-/ Differential oil SAE80W90
required quantities: 2
|
