Čelní & boční skla TR 2-3A

Obj. číslo	Popis	Ilustrace klikněte pro zvětšení

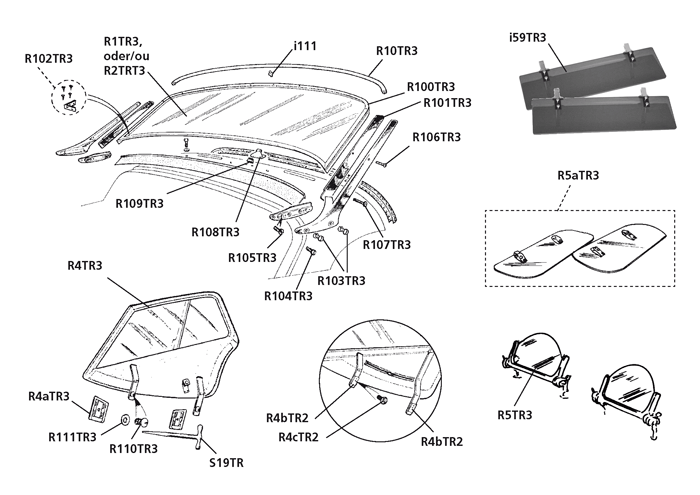

	windscreens and sidescreens TR 2-3A
R1TR3	windscreen clear required quantities: 1
R2TR3	windscreen tinted green required quantities: 1
R4TR2L	side screen (TR2-3 up to TS28825) - LH required quantities: 1
R4TR2R	side screen (TR2-3 up to TS28825) - RH required quantities: 1
R4TR3L	side screen (TR3-3A up to TS28825) - LH required quantities: 1
R4TR3R	side screen (TR3-3A up to TS28826) - RH required quantities: 1
R4aTR2L	socket side screen (TR2-3 up to TS28825) LH required quantities: 1
R4aTR2R	socket side screen (TR2-3 up to TS28825) RH required quantities: 1
R4aTR3L	socket side screen (TR3-3A up to TS28826) LH required quantities: 1
R4aTR3R	socket side screen (TR3-3A up to TS28826) RH required quantities: 1
R4bTR2	wedge, sidescreen mount (TR2-3 inf. TS28825) required quantities: 4
R4cTR2	screw, wedge attachment required quantities: 4
R5TR3	Aero Screen (1 piece) required quantities: 2
R5aTR3	wind wing set required quantities: 1
R6TR3	rubber mounting straps set, windscreen (w/o picture) required quantities: 1
R9TR3	rubber under front screen required quantities: 1
R10TR3	Rubber on front screen required quantities: 1
S19TR	´T´key Dzus fastener required quantities: 1
i59TR3	Sun Visor toned , Plexiglass TR2-3 required quantities: 2
R100TR3	windscreen frame required quantities: 1
R101TR3	Tenon plate , between windscreen to frame required quantities: 2
R102TR3	windscreen corner bracket set required quantities: 2
R103TR3	Dzus fastener stanchion to plate (TR2-3 up to TS60000) required quantities: 4
R104TR3	bolt stanchion to plate (TR3 from TS60000) required quantities: 4
R105TR3	screw guide plate to body required quantities: 4
R106TR3	screw, short stanchion to frame required quantities: 4
R107TR3	bolt stanchion to to plate & body required quantities: 2
R108TR3	bracket mid windscreen required quantities: 1
R109TR3	buffer in bracket R108TR3 required quantities: 1
R110TR3	Dzus fastener sidescreen (TR3 from TS28826) required quantities: 4
R111TR3	washer securing Dzus fastener R110TR3 required quantities: 4
i111	Tenax hood fastener lower part required quantities: A/R
