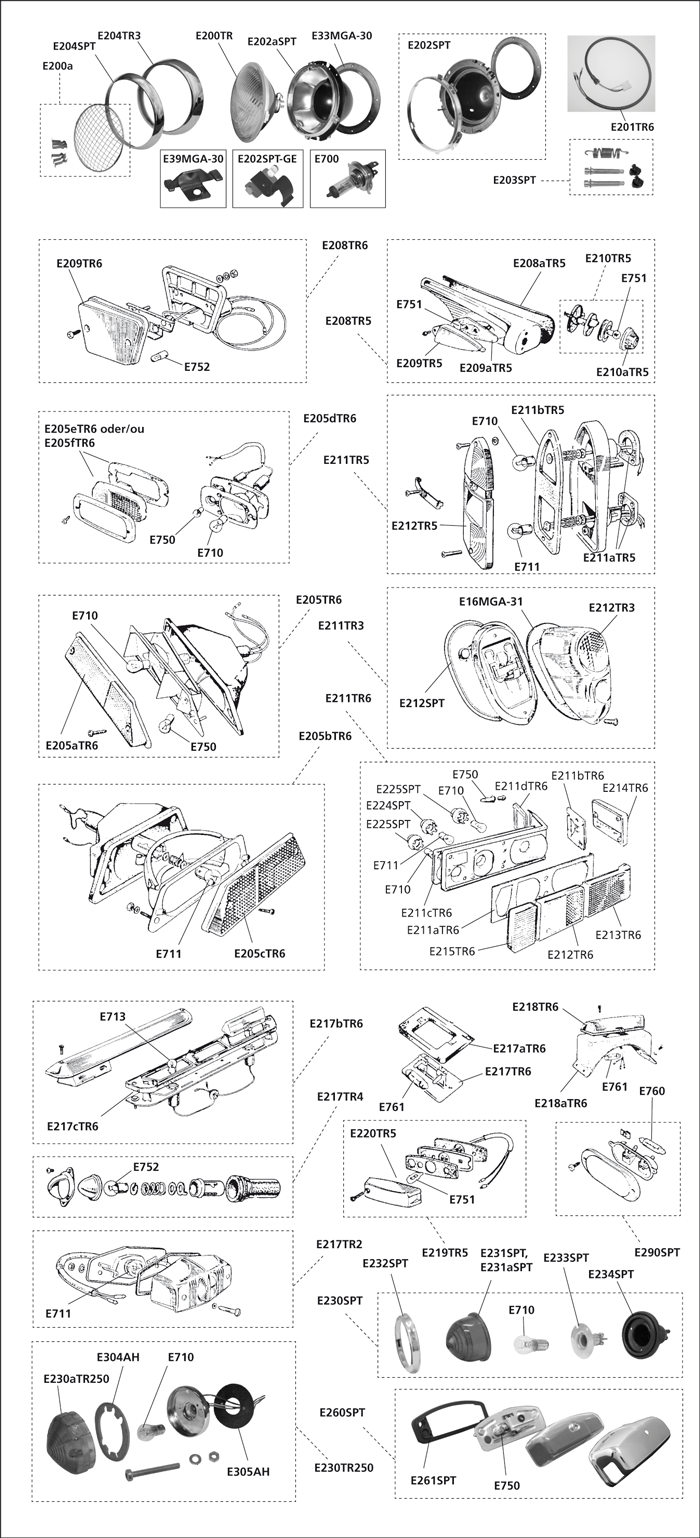

lights TR 2-6 |
 |
| E200SPT |
Pair H4 headllamp units, without pilot lamp, lhd incl. bulp
required quantities: 1
|
| E200TR |
reflector Halogen H4 with parking light, bulbs included(TR2-6)
required quantities: 1
|
| E200a |
headlamp stone guard (w/o fig.)
required quantities: 1
|
| E201TR6 |
adapter bulb „Europe“ with lead
required quantities: 2
|
| E202SPT |
front light housing (plastic), complete, inclusive seal and chrome ring (TR2-6)
required quantities: 2
|
| E202ASPT |
Front light housing (metal)
required quantities: 2
|
| E33MGA-30 |
Headlamp rubber
required quantities: 2
|
| E39MGA-30 |
Headlamp rim clip
required quantities: A/R
|
| E202SPT-GE |
Clip, rim retaining
required quantities: A/R
|
| E203SPT |
headlamp screw trimmer set (TR2-6)
required quantities: 2
|
| E204SPT |
chrome ring outer, bolt on, (TR2-6)
required quantities: 2
|
| E204TR6 |
headlamp ring (TR2-6)
required quantities: 2
|
| E204TR3 |
headlamp ring, wide (TR3 USA)
required quantities: 2
|
| E205TR6L |
flasher assembly, front (TR6 Pi ) - LH
required quantities: 1
|
| E205TR6R |
flasher assembly, front (TR6 PI) - RH
required quantities: 1
|
| E205aTR6L |
flasher lens , LH (TR6 PI)
required quantities: 1
|
| E205aTR6R |
flasher lens , RH (TR6 PI)
required quantities: 1
|
| E205bTR6L |
flasher assembly, front (TR6 carburettor ) - LH
required quantities: 1
|
| E205bTR6R |
flasher assembly, front (TR6 carburettor ) - RH
required quantities: 1
|
| E205cTR6L |
flasher lens , LH (TR6 carburettor)
required quantities: 1
|
| E205cTR6R |
flasher lens , RH (TR6 carburettor)
required quantities: 1
|
| E205dTR6 |
flasher assembly, in front bumper, (CF27001 - CF39991)
required quantities: 2
|
| E205eTR6 |
flasher lens, in front bumper, (CF27001 - CF39991)
required quantities: 2
|
| E205fTR6 |
flasher lens, in front bumper, (CF50000 )
required quantities: 2
|
| E208TR6L |
side flasher, front LH
required quantities: 1
|
| E208TR6R |
side flasher, front RH
required quantities: 1
|
| E208TR5L |
side flasher, front LH (TR4A-5)
required quantities: 1
|
| E208TR5R |
side flasher , front RH (TR4A-5)
required quantities: 1
|
| E208aTR5L |
gasket rubber lamp and lens sealing - LH
required quantities: 1
|
| E208aTR5R |
gasket rubber lamp and lens sealing - RH
required quantities: 1
|
| E209TR6L |
side flasher lens (TR6) LH
required quantities: 1
|
| E209TR6R |
side flasher lens (TR6) RH
required quantities: 1
|
| E209TR5L |
side flasher lens - LH
required quantities: 1
|
| E209TR5R |
side flasher lens - RH
required quantities: 1
|
| E209aTR5 |
gasket rubber lamp and lens sealing - side flasher - LH
required quantities: 2
|
| E210TR5 |
front side marker lamp assembly
required quantities: 2
|
| E210aTR5 |
lamp assembly parking on wing (TR4A-5)
required quantities: 2
|
| E211TR6L |
rear taillamp assembly - LH
required quantities: 1
|
| E211TR6R |
rear taillamp assembly RH
required quantities: 1
|
| E211aTR6 |
gasket rear lens
required quantities: 2
|
| E211bTR6 |
gasket rear lens side
required quantities: 2
|
| E211cTR6 |
gasket rear lens seating
required quantities: 2
|
| E211dTR6 |
gasket side lens seating
required quantities: 2
|
| E211TR5 |
rear taillamp assembly (TR4-5)
required quantities: 2
|
| E211aTR5 |
gasket rear lens seating (TR4-5)
required quantities: 2
|
| E211bTR5 |
gasket rear lens (TR4-5)
required quantities: 2
|
| E211TR3 |
stop / tail lamp assembly (TR2-3)
required quantities: 2
|
| E212SPT |
rubber washer rear lamp base (TR2-3)
required quantities: 2
|
| E212TR3 |
stop/tail lamp lens (TR2-3)
required quantities: 2
|
| E212TR5 |
stop/tail lamp lens (TR4-5)
required quantities: 2
|
| E212TR6L |
stop lamp LH
required quantities: 1
|
| E212TR6R |
stop lamp RH
required quantities: 1
|
| E213TR6L |
flasher lens rear - LH
required quantities: 1
|
| E213TR6R |
flasher lens rear - RH
required quantities: 1
|
| E214TR6L |
flasher lens side rear - LH
required quantities: 1
|
| E214TR6R |
flasher lens side rear - RH
required quantities: 1
|
| E215TR6L |
reverse lamp lens - LH
required quantities: 1
|
| E215TR6R |
reverse lamp lens - RH
required quantities: 1
|
| E224SPT |
bulb holder, stop/tail (2 contacts)
required quantities: 2
|
| E225SPT |
bulb holder, indicator (1 contacts)
required quantities: 4
|
| E16MGA-31 |
Dust excluder stop/tail lamp
required quantities: 2
|
| E217TR6 |
number plate lamp rear rear valance mounted
required quantities: 2
|
| E217aTR6 |
plinth, lamp to rear valance
required quantities: 2
|
| E217bTR6 |
number plate lamp assembly bumper mounted (CP25001- CP77718, CC25001- CC85737)
required quantities: 1
|
| E217cTR6 |
seal under number plate lamp assembly
required quantities: 1
|
| E217TR2 |
number plate lamp assembly (TR2, TR3 - TS18912)
required quantities: 1
|
| E217TR4 |
number plate lamp assembly (TR44A)
required quantities: 2
|
| E218TR6 |
Interior illumination lamp
required quantities: 1
|
| E218aTR6 |
plinth assmbly interior lamp
required quantities: 1
|
| E219TR5/r |
rear side marker lamp assembly (TR250-5) red
required quantities: 2
|
| E219TR5/g |
rear side marker lamp assembly (TR250-5) orange
required quantities: 2
|
| E220TR5 |
lens, rear side marker lamp (TR250-5)
required quantities: 2
|
| E230SPT |
rear flasher lamp (amber glass lens)
required quantities: 2
|
| E230aSPT |
reverse lamp (TR250-5)
required quantities: 2
|
| E230TR250 |
flasher assembly, front (TR4A USA, TR250)
required quantities: 2
|
| E230aTR250 |
flasher lens, plastic
required quantities: 2
|
| E231SPT |
flasher lens amber glass (TR2-5)
required quantities: 2
|
| E231aSPT |
reverse lamp lens (TR250-5)
required quantities: 2
|
| E232SPT |
chrome ring (TR2-5)
required quantities: 2
|
| E233SPT |
socket indicator (TR2-5)
required quantities: 2
|
| E234SPT |
rubber body flasher lamp (TR2-5)
required quantities: 2
|
| E260SPT |
number plate lamp
required quantities: 1
|
| E261SPT |
Seal, rubber
required quantities: 2
|
| E290SPT |
boot lamp (TR4-6)
required quantities: 1
|
| E304AH |
Gasket, lens seating
Type: TR4A USA, TR250 required quantities: 2
|
| E305AH |
Pad, lamp body seating
Type: TR4A USA, TR250 required quantities: 2
|
| E309AH |
Screw, for lens
required quantities: 4
|
| |

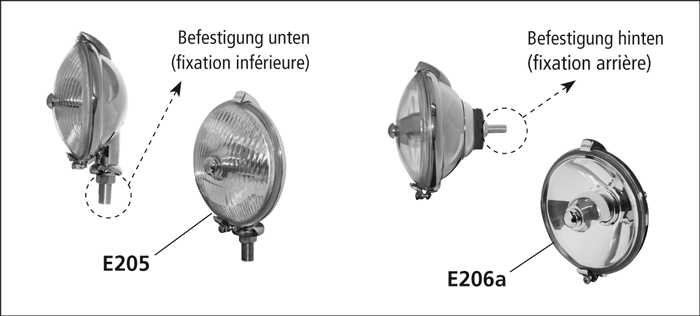

Period Style: Driving and Frog Lamps |
 |
| E205 |
High beam headlamp (stemmount)
Type: TR2-6 required quantities: 2
|
| E205a |
High beam headlamp (backmount)
Type: TR2-6 required quantities: 2
|
| E206 |
Fog lamp (stemmount)
Type: TR2-6 required quantities: 2
|
| E206a |
Fog lamp (backmount)
Type: TR2-6 required quantities: 2
|
| E720 |
Bulb for high beam headlamp
Type: TR2-6 required quantities: 2
|
| E721 |
Bulb for fog lamp (12V-48W)
Type: TR2-6 required quantities: 2
|
| |
Bulbs |
|
| E700 |
Bulb, H4 to no. E200SPT
required quantities: A/R
|
| E710 |
Bulb, single filament 12V-21W, flasher lamp
required quantities: A/R
|
| E711 |
Bulb, twin filament 12V-21/5W, stop/tail & flasher/side lamps
required quantities: A/R
|
| E713 |
Bulb, single filament 12V-5W, side/parking lamp
required quantities: A/R
|
| E750 |
Bulb 12V 5W (bayonet)
required quantities: A/R
|
| E751 |
Bulb 12V 5W (bayonet)
required quantities: A/R
|
| E752 |
Bulb 12V 4W
required quantities: A/R
|
| E760 |
Bulb 12V 3W
required quantities: A/R
|
| E761 |
Bulb 12V 5W
required quantities: A/R
|
