Wiring loom


Part No. Description Illustration
click to enlarge

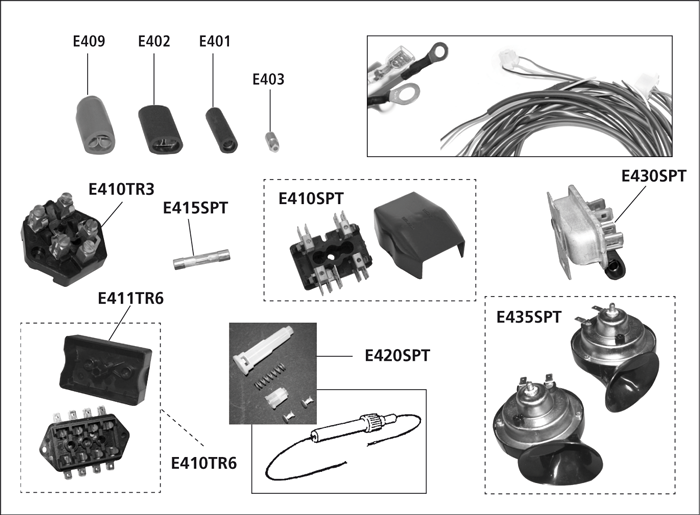

wiring loom TR2-6		 FKG_1060310000.png
E400TR3 TR2, TR3 up to TS60000
required quantities: 1
E400aTR3 TR2-3B wiring loom steering column
required quantities: 1
E400TR3A TR3 ab TS60001, TR3A
required quantities: 1
E400TR4 TR4
required quantities: 1
E400TR4A TR4A
required quantities: 1
E400TR5Pi TR5 Pi, TR250
required quantities: 1
E400aTR6V TR6 carb to CC50000
required quantities: 1
E400bTR6V TR6 carb > CC50001-75000
required quantities: 1
E400cTR6V TR6 carb> CC75001 bis Ende CC
required quantities: 1
E400dTR6V TR6 carburettor models > CF1-CF12500
required quantities: 1
E400eTR6V TR6 carburettor models CF12501-CF35000
required quantities: 1
E400fTR6V TR6 carb. to CF35001-CF50000
required quantities: 1
E400gTR6V TR6 carbs up to CF50001
required quantities: 1
E401aTR6Pi TR6 Pi - CP
required quantities: 1
E401bTR6Pi TR6 Pi CR
required quantities: 1
E401 cable connector 1-way
required quantities: A/R
E402 cable connector 2-way
required quantities: A/R
E403 wiring connector bullet
required quantities: A/R
E409 cable connector 3-way
required quantities: A/R
E410TR3 fuse box (screw-on connection)(without cover)
required quantities: 1
E410SPT fuse box P1800, twin
required quantities: 1
E410TR6 fuse box 4 fuses
required quantities: 1
E411TR6 cover fuse box 4 fuses (TR250-6)
required quantities: 1
E415SPT10 glass fuse for fuse box E410SPT, 10 A
required quantities: A/R
E415SPT15 glass fuse for fuse box E410SPT, 15 A
required quantities: A/R
E415SPT25 glass fuse for fuse box E410SPT, 25 A
required quantities: A/R
E415SPT35 glass fuse for fuse box E410SPT, 35 A
required quantities: A/R
E420SPT fuse/holder (in-line)
required quantities: A/R
E430SPT voltage stabilizer , for water and fuel gauge
required quantities: 1
E435SPT horn set
required quantities: 1
E460SPT bulb, dashboard lightning
required quantities: A/R
