Clutch

Part No.	Description	Illustration click to enlarge

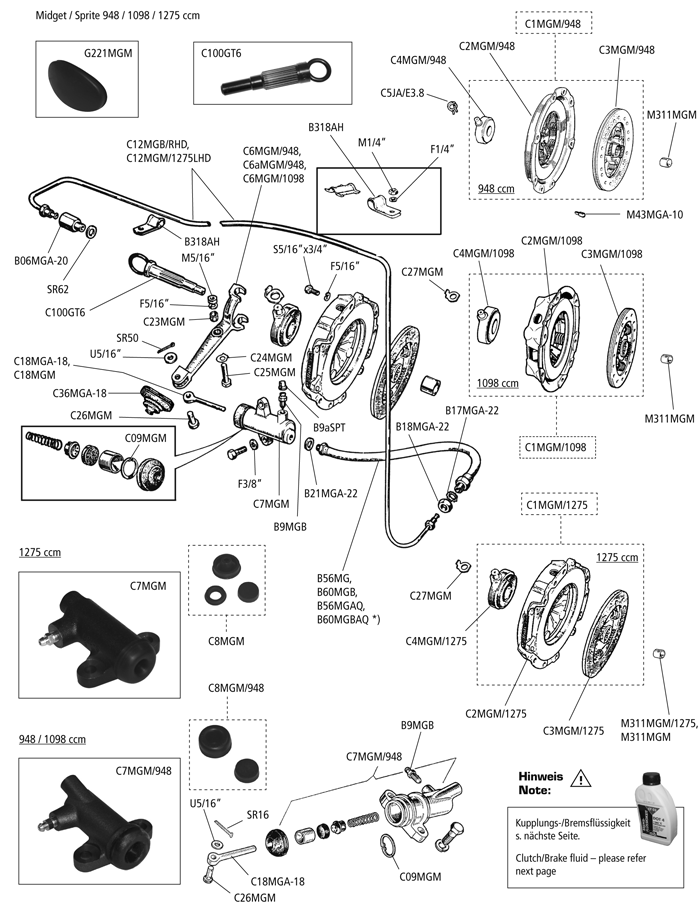

	Midget/Sprite 948/1098/1275 ccm
C1MGM/948	Clutch kit 948 cc required quantities: 1
C1MGM/1098	Clutch kit 1098 cc required quantities: 1
C1MGM/1275	Clutch kit 1275 cc required quantities: 1
C2MGM/948	Clutch cover 948 cc required quantities: 1
C2MGM/1098	Clutch cover 1098 cc required quantities: 1
C2MGM/1275	Clutch cover 1275 cc required quantities: 1
C3MGM/948	Clutch plate 948 cc required quantities: 1
C3MGM/1098	Clutch plate 1098 cc required quantities: 1
C3MGM/1275	Clutch plate 1275 cc required quantities: 1
C4MGM/948	Clutch release bearing 948 cc required quantities: 1
C4MGM/1098	Clutch release bearing 1098 cc required quantities: 1
C4MGM/1275	Clutch release bearing 1275 cc required quantities: 1
C5JA/E3.8	Release bearing clip 948 cc required quantities: 2
C6MGM/948	Clutch fork to 9cgdah 2139 948 cc required quantities: 1
C6aMGM/948	Clutch fork from 9cgdah 2140 948 cc required quantities: 1
C6MGM/1098	Clutch fork 1098 / 1275 cc with bush required quantities: 1
C18MGA-18	Push rod 948 / 1098 cc (69,8 mm) required quantities: 1
C18MGM	Push rod 1275 cc (68,27 mm) required quantities: 1
C23MGM	Bush, fork required quantities: 1
C24MGM	Lock tab required quantities: 1
C25MGM	Pivot bolt required quantities: 1
C26MGM	Clevis pin required quantities: 1
C27MGM	Clip, release bearing 1098 / 1275 cc required quantities: 2
C36MGA-18	Gaiter, clutch fork required quantities: 1
M43MGA-10	Dowel required quantities: 2
SR50	Split pin required quantities: 1
C100GT6	Clutch alignment tool required quantities: 1
G221MGM	Rubber top dust plug 1098 / 1275 cc required quantities: 1
M311MGM	Spigot bearing, rear, ø 5/8” 948 / 1098 cc, early 1275 cc -12cc engines required quantities: 1
M311MGM/1275	Spigot bearing, rear, ø 3/4” late 12CC engines, all 12CE and 12V engines required quantities: 1
	*Slave Cylinder and Pipes ) 948/1098 cc**
C7MGM/948	Clutch slave cylinder required quantities: 1
C8MGM/948	Repair kit slave cylinder required quantities: 1
B9MGB	Bleed screw required quantities: 1
C09MGM	Circlip required quantities: 1
C12MGM/948LHD	Pipe, lhd (w/o fig.) *) required quantities: 1
C12MGM/948RHD	Pipe, rhd (w/o fig.) *) required quantities: 1
C18MGA-18	Push rod required quantities: 1
C26MGM	Clevis pin required quantities: 1
	Slave Cylinder and Pipes 1275 cc (G-AN4, G-AN5, H-AN9, H-AN10, A-AN10)
B06MGA-20	Adaptor required quantities: 1
C7MGM	Clutch slave cylinder required quantities: 1
C8MGM	Repair kiat slave cylinder required quantities: 1
B9MGB	Bleed nipple required quantities: 1
B9aSPT	Cap, bleed nipple required quantities: 1
C09MGM	Circlip required quantities: 1
C12MGB/RHD	Pipe, copper, rhd required quantities: 1
C12MGM/1275LH	Pipe, copper, lhd required quantities: 1
B17MGA-22	Washer, shakeproof required quantities: 1
B18MGA-22	Nut required quantities: 1
B21MGA-22	Washer required quantities: 1
B56MG	Clutch hose required quantities: 1
B60MGB	Clutch hose required quantities: 1
B56MGAQ	Clutch hose steel reiforced required quantities: 1
B60MGBAQ	Clutch/brake hose steel reinforced required quantities: 1
SR62	Washer required quantities: 1
B318AH	Clip required quantities: A/R

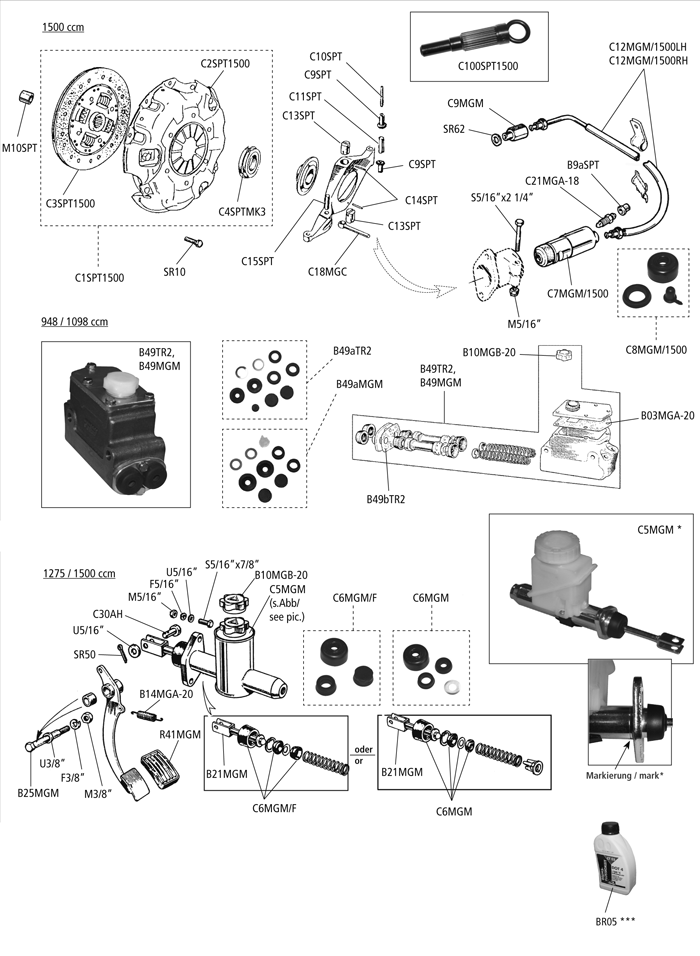

	Clutch Midget 1500
C1SPT1500	Clutch kit required quantities: 1
C2SPT1500	Clutch cover required quantities: 1
C3SPT1500	Clutch plate required quantities: 1
C4SPTMK3	Clutch release bearing required quantities: 1
C9SPT	Bronce bush bell housing required quantities: 2
SR10	Screw clutch cover to fly wheel required quantities: 6
C10SPT	Bearing pin relese fork required quantities: 1
C11SPT	Bushing spring pin required quantities: 1
C13SPT	Thrust plug required quantities: 2
C14SPT	Roll pin for thrust plug required quantities: 2
C15SPT	Pin push rod to operating cylinder required quantities: 1
C18MGC	Push rod required quantities: 1
C100SPT1500	Clutch alignment tool required quantities: 1
	Slave Cylinder and Pipes 1500 cc (G-AN6)
C7MGM/1500	Clutch slave cylinder required quantities: 1
C8MGM/1500	Repair kit, slave cylinder required quantities: 1
C9MGM	Adaptor required quantities: 1
B9aSPT	Cap, bleed nipple required quantities: 1
M10SPT	Spigot bush required quantities: 1
C12MGM/1500LH	Pipe, lhd required quantities: 1
C12MGM/1500RH	Pipe, rhd required quantities: 1
C21MGA-18	Bleed nipple required quantities: 1
SR62	Washer required quantities: 1
	Master Cylinder 948/1098 cc
B03MGA-20	Gasket, top required quantities: 1
B10MGB-20	Filler cap, plastic required quantities: 1
B49MGM	Master cylinder (3/4”) 1098cc disc brakes required quantities: 1
B49aMGM	Repair kit for B49MGM (3/4”) 1098cc disc brakes required quantities: 1
B49TR2	Master cylinder (7/8”) 948cc drum brakes required quantities: 1
B49aTR2	Repair kit for B49TR2 (7/8”) 948cc drum brakes required quantities: 1
B49bTR2	Gasket, side required quantities: 1
	*Master Cylinder and Pedal 1275/1500 cc**
C5MGM	Master cylinder required quantities: 1
C6MGM*	Repair kit, slave cylinder (late with rim) required quantities: 1
C6MGM/F*	Repair kit, slave cylinder (early w/o rim) required quantities: 1
B10MGB-20	Cap, filler plastic required quantities: 1
B14MGA-20	Return spring, clutch pedal required quantities: 1
B21MGM	Push rod required quantities: 1
B25MGM	Bolt, pivot brake & clutch pedals required quantities: 1
C30AH	Clevis pin required quantities: 1
R41MGM	Pad, pedal rubber required quantities: 1
SR50	Split pin required quantities: 1
BR05	Clutch fluid 1/2 l required quantities: A/R
BR-Si05	Silicon brake/clutch fluid 1/2 l ** required quantities: A/R
BR-Si1	Silicon brake/clutch fluid 1 l ** required quantities: A/R

*) Note: 948 and 1098 cars used a pipe from the master cylinder to the slave cylinder. These cars did not use a hose in the clutch system.
* Attention: When ordering the repair kits for the master cylinder please make sure that the identification mark )groove) is cast in on cylinder housing. (see pic.) Please use the repair kit C6MGM for marked cylinders. For non-marked cylinders, please use the repair kit C6MGM/F.
* Note to BR-Si05, BR-Si1: Silicone brake/clutch fluid does not absorb moisture from air like ordinary brake fluid. As a result, the brake/clutch pipes, the cylinders and hoses will last much longer and you do not have to change the fluid at least once a year. Also silicone brake/clutch fluid has a sligty higher boiling point. WARNING! It is not possible to mix with other brake/clutch fluid!
