Cooling system Midget/Sprite

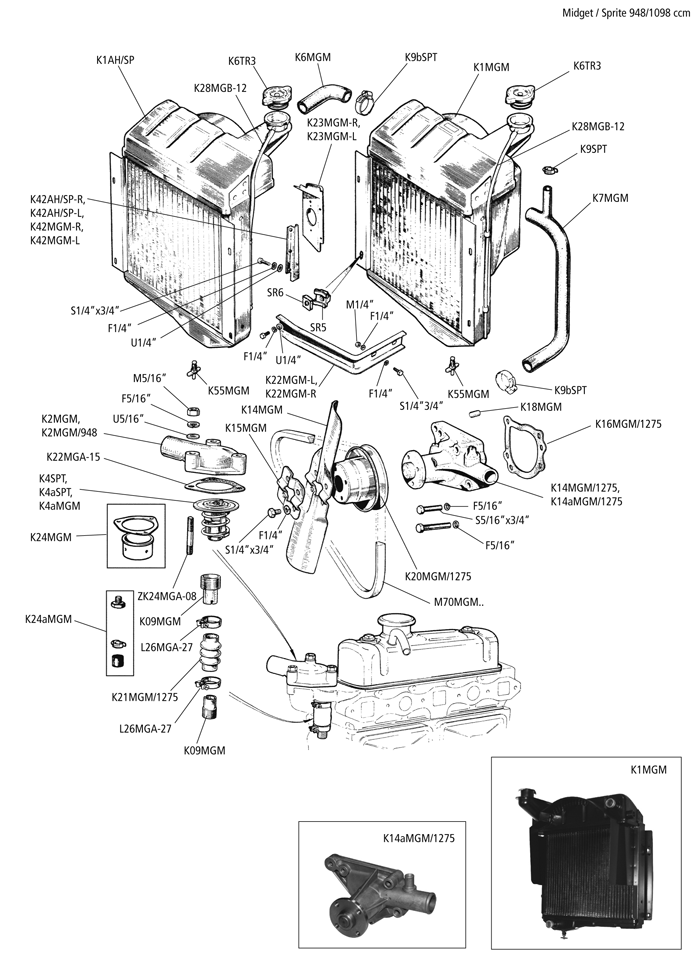

Cooling system Midget/Sprite 948/1098cc

Part No. Description Illustration
click to enlarge

Midget/Sprite 948/1098cc
K1AH/SP Radiator, without shroud to AN5 6888
required quantities: 1
K1MGM Radiator, with shroud from AN5-6889 to G-AN4-66225 and H-AN9-77590
required quantities: 1
K2MGM/948 Housing, thermostat 948cc
required quantities: 1
K2MGM Housing, thermostat 1098cc
required quantities: 1
K4SPT Thermostat 74°
required quantities: 1
K4aSPT Thermostat 82°
required quantities: 1
K4aMGM Thermostat 88°
required quantities: 1
SR5 Cage 1/4”
required quantities: 4
SR6 Caged nut 1/4”
required quantities: 4
K6TR3 filler cap
required quantities: 1
K6MGM Top hose
required quantities: 1
K7MGM Bottom hose
required quantities: 1
K9SPT Clamp 12-22 mm
required quantities: 1
K9bSPT Clamp 23-35 mm
required quantities: 4
K09MGM Adaptor, by pass hose
required quantities: 2/1
K14MGM/1275 Water pump (standard - short rotor)
required quantities: 1
K14aMGM/1275 Water pump (uprated - long rotor)
required quantities: 1
K14MGM Fan blade (metal)
required quantities: A/R
K15MGM Stiffener, fan (metal)
required quantities: 1
K16MGM/1275 Gasket
required quantities: 1
K18MGM Dowel
required quantities: 2
K20MGM/1275 Pulley
required quantities: 1
K21MGM/1275 Hose
required quantities: 1
K22MGA-15 Gasket, thermostat housing
required quantities: 1
K22MGM/R Bracket, support RH
required quantities: 1
K22MGM/L Bracket, support LH
required quantities: 1
K23MGM/R Splash panel RH Sprite MK2,3 / Midget MK1,2
required quantities: 1
K23MGM/L Splash panel LH Sprite MK2,3 / Midget MK1,2
required quantities: 1
ZK24MGA-08 Stud, thermostat housing 1098cc
required quantities: 3
K24MGM Plug
required quantities: 1
K24aMGM Blanking kit
required quantities: 1
L26MGA-27 Clip 3/4”
required quantities: 2
K28MGB-12 Hose
required quantities: 1
K42AH/SP-R Bracket, radiator support, RH Sprite 1
required quantities: 1
K42AH/SP-L Bracket, radiator support, LH Sprite 1
required quantities: 1
K42MGM/R Bracket, radiator support, RH Sprite MK2,3 / Midget MK1,2
required quantities: 1
K42MGM/L Bracket, radiator support, LH Sprite MK2,3 / Midget MK1,2
required quantities: 1
K55MGM Drain tap
required quantities: 1
K18MGA-15 Fan belt 948cc
required quantities: 1
M70MGM/1098 Fan belt 1098cc
required quantities: 1
