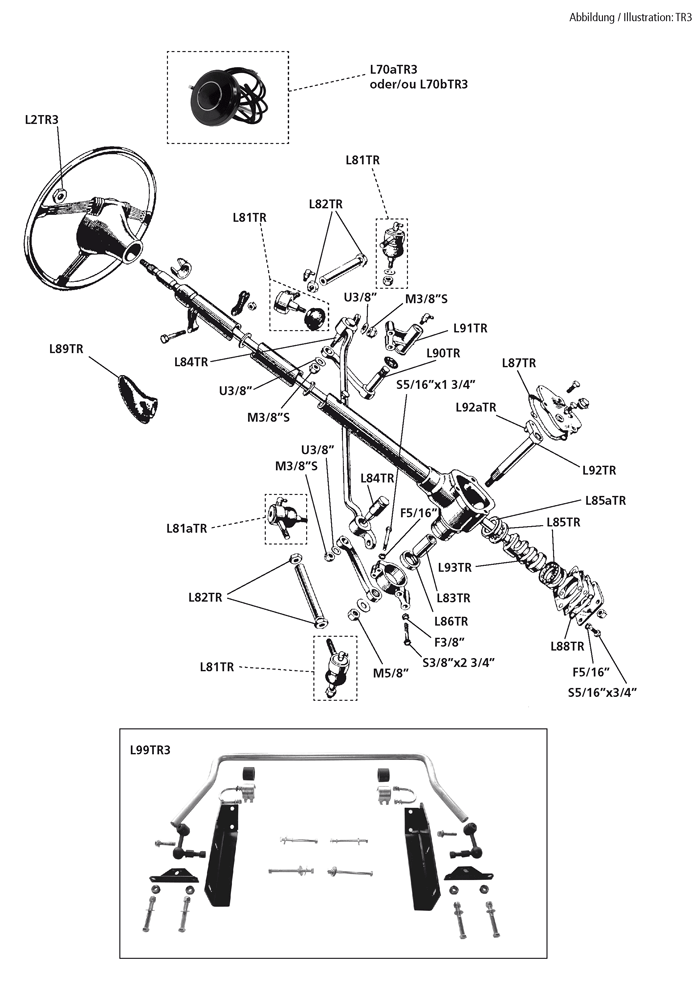

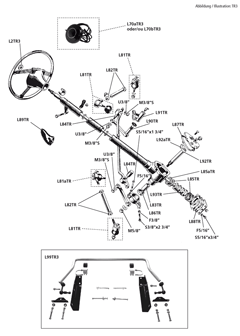

Steering & anti-roll bar TR2-3

Part No.	Description	Illustration click to enlarge
	steering / anti roll bar TR2-3
L2TR3	nut steering wheel attachement required quantities: 1
L14TR	universal joint steering (TR4-6) required quantities: 1
L14aTR	universal joint steering (TR2-3) required quantities: 1
L48SPT	track rod end required quantities: 2
L70aTR3	horn/indicator switch for steering rack required quantities: 1
L70bTR3	horn/indicator switch for adjustable steering rack required quantities: 1
L81TR	track rod end, right hand screw required quantities: 2
L81aTR	track rod end, left hand screw required quantities: 2
L82TR	nut,half, track rod end adjustment, right hand screw required quantities: 2
L82aTR	nut half, track rod end adjustment, left hand screw required quantities: 2
L83TR	bush gunmetall required quantities: 1
L84TR	bush silntbloc and pin required quantities: 2
L84TRRACE	bush silntbloc and pin, Nylatron required quantities: 2
L85TR	ball and cage assembly required quantities: 2
L85aTR	race outer required quantities: 1
L86TR	seal rack and pinion required quantities: 1
L87TR	gasket on cover plate ( 3 holes ) required quantities: 1
L88TR	gasket on cover plate ( 4 holes ) required quantities: 1
L89TR	grommet required quantities: 1
L90TR	idler lever required quantities: 1
L91TR	bracket, idler lever housing required quantities: 1
L92TR	rocker shaft assembly required quantities: 1
L92aTR	peg in rocker shaft required quantities: 1
L93TR	required quantities: 1
L97TR3	rack and pinion steering ,conversion kit (TR2-3) with MOT required quantities: 1
L97aTR3	rack and pinion steering ,conversion kit (TR2-3) required quantities: 1
L97bTR3	indicator/horn contact, rack and pinion steering with original horn and flasher unit required quantities: 1
L97cTR3	fan kit incl. rigid fan *) required quantities: 1
L98TR3	overhaul your own gearbox (TR2-3) required quantities: 1
L99TR3	anti roll bar kit, TR2-3 contains all components required quantities: 1

if you want to use a fixed fan after the conversion to a rack and pinion steering the fan kit L97cTR3 needs to be mounted
