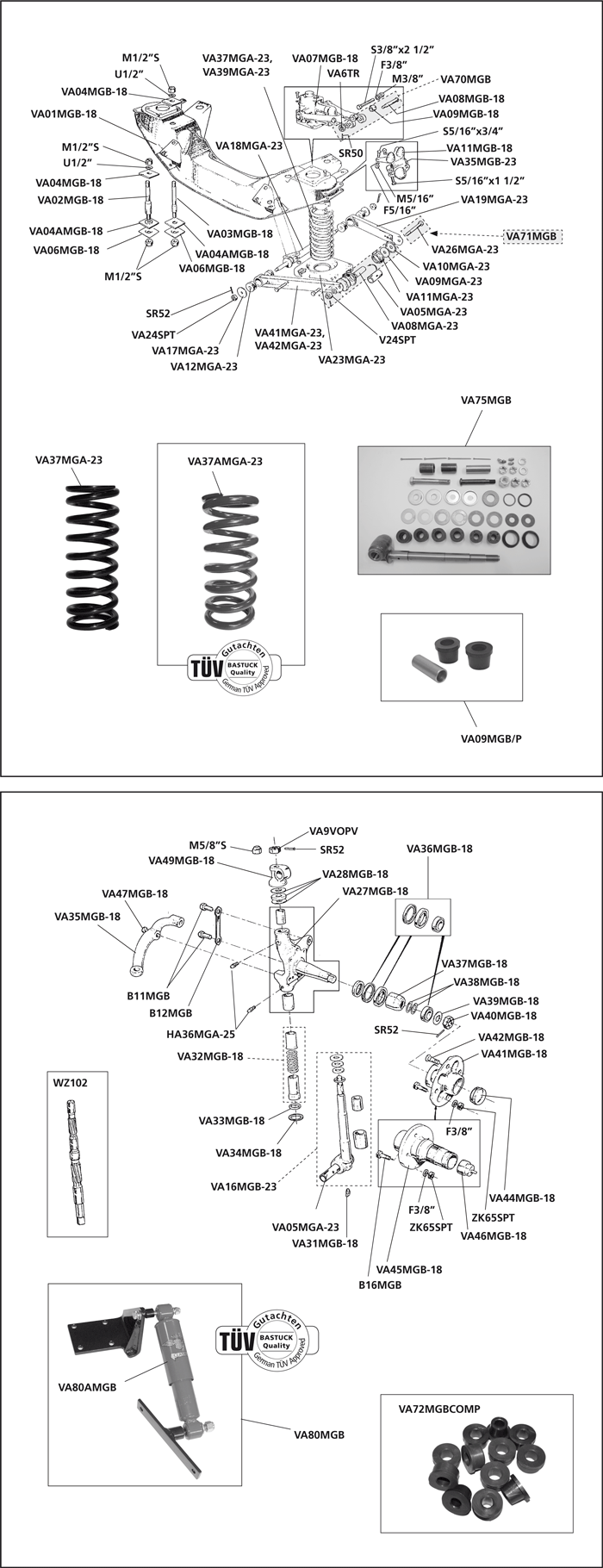

Front Suspension Chrome bumper models (62-74) |
 |
| VA01MGB-18 |
Front crossmember
required quantities: 1
|
| VA03MGB-18 |
Stud crossmember - 4x to be needed
required quantities: 4
|
| VA04MGB-18 |
Pas upper (lipped) - 4x to be needed
required quantities: 4
|
| VA04AMGB-18 |
Pas upper (flat) - 4x to be needed
required quantities: 4
|
| |
Rubber bumper models (from 74 on) |
|
| VA01AMGB-18 |
Front crossmember
required quantities: 1
|
| VA02MGB-18 |
Stud crossmember - 2x to be needed
required quantities: 2
|
| VA03MGB-18 |
Stud crossmember - 4x to be needed
required quantities: 2
|
| VA04MGB-18 |
Pas upper (lipped) - 4x to be needed
required quantities: 6
|
| VA04AMGB-18 |
Pas upper (flat) - 4x to be needed
required quantities: 4
|
| VA05MGA-23 |
Bush
required quantities: 2
|
| |
all models |
|
| VA6TR |
Crown nut 7/16”
required quantities: 2
|
| VA06MGB-18 |
Clamp plate crossmember mounting
required quantities: 4
|
| VA07MGB-18 |
Shocker absorber front
required quantities: 2
|
| VA07MGBCOMP |
Shocker absorber front Competition (+ 25% stronger)
required quantities: 2
|
| VA08MGA-23 |
Spacing tube link
required quantities: 2
|
| VA08MGB-18 |
Pin fulcrum link to shocker
required quantities: 2
|
| VA09MGA-23 |
Thrust washer king pin
required quantities: 4
|
| VA09MGB-18 |
Bearing bush
required quantities: 4
|
| VA09MGB/P |
Polyurethan bearing bush (replaces VA09MGB-18)
required quantities: 4
|
| VA10MGA-23 |
Seal support front suspension
required quantities: 4
|
| VA11MGA-23 |
Dust seal king pin
required quantities: 2
|
| VA11MGB-18 |
Buffer rubber front axle
required quantities: 2
|
| VA11AMGB-18 |
Buffer rubber front axle short (to be recommended when lowered front springs fitted)
required quantities: 2
|
| VA12MGA-23 |
Rubber bush wishbone arm lower
required quantities: 8
|
| VA17MGA-23 |
Washer
required quantities: 4
|
| VA18MGA-23 |
Wishbone pivot bottom
required quantities: 2
|
| VA19MGA-23 |
Wishbone arm rear
required quantities: 2
|
| VA23MGA-23 |
Spring pan front
required quantities: 2
|
| VA24SPT |
Crown nut UNF 1/2“
required quantities: 2
|
| VA26MGA-23 |
Bolt wishbone/link bottom front
required quantities: 2
|
| VA35MGB-23 |
Spacer rebound buffer
required quantities: 2
|
| VA37MGA-23 |
Front spring Roadster
required quantities: 2
|
| VA37AMGA-23 |
Front spring reinforced + lowered, Roadster & GT models (L= 220 mm )
required quantities: 2
|
| VA39MGA-23 |
Front spring GT
required quantities: 2
|
| VA41MGA-23 |
Wishbone arm lower front rh
required quantities: 1
|
| VA42MGA-23 |
Wishbone arm lower front lh
required quantities: 1
|
| VA70MGB |
Bush kit front suspension upper **)
required quantities: 1
|
| VA71MGB |
Bush kit front suspension lower/outer **)
required quantities: 1
|
| HSD |
Shocker absorber oil 500 ml
required quantities: A/R
|
| VA9VOPV |
Crown nut UNF 5/8”
required quantities: 2
|
| VA11SPT |
Grease nipple
required quantities: 2
|
| B11MGB |
Bolt brake caliper
required quantities: 4
|
| B12MGB |
Tab washer brake caliper
required quantities: 4
|
| B16MGB |
Bolt disc to flange
required quantities: 8
|
| VA16MGB-23 |
King pin kit
required quantities: 2
|
| VA27MGB-18L |
Swivel axle with pin LH
required quantities: 1
|
| VA27MGB-18R |
Swivel axle with pin RH
required quantities: 1
|
| VA28MGB-18 |
Trust washer bronze
required quantities: 2
|
| VA28MGB/0.055 |
Trust shim 0,055“
required quantities: A/R
|
| VA28MGB/0.060 |
Trust shim 0,060“
required quantities: A/R
|
| VA28MGB/0.065 |
Trust shim 0,065“
required quantities: A/R
|
| VA32MGB-18 |
Dust tube kit
required quantities: 2
|
| VA33MGB-18 |
Seal dust tube
required quantities: 2
|
| VA34MGB-18 |
Seal lower
required quantities: 2
|
| VA35MGB-18L |
Steering lever LH
required quantities: 1
|
| VA35MGB-18R |
Steering lever RH
required quantities: 1
|
| VA36MGB-18 |
Wheel bearing kit front
required quantities: 2
|
| HA36MGA-25 |
Grease nipple
required quantities: 4
|
| VA37MGB-18 |
Spacer wheel bearing
required quantities: 2
|
| VA38MGB-18 |
Shim adjusting wheel bearing, kit
required quantities: A/R
|
| VA39MGB-18 |
Washer wheel bearing
required quantities: 2
|
| VA40MGB-18 |
Bearing nut retaining
required quantities: 2
|
| VA41MGB-18 |
Wheel hub steel wheels front
required quantities: 2
|
| VA42MGB-18 |
Wheel stud wire wheel hub
required quantities: 8
|
| VA42AMGB-18 |
Wheel stud late from GHN/D5 490637
required quantities: 8
|
| VA44MGB-18 |
Grease cap steel wheels
required quantities: 2
|
| VA45MGBL |
Wire wheel hub 8 tpi front LH from 64
required quantities: 1
|
| VA45MGBR |
Wire wheel hub 8 tpi front RH from 64
required quantities: 1
|
| VA45AMGBL |
Wire wheel hub 12 tpi front LH up to 64
required quantities: 1
|
| VA45AMGBR |
Wire wheel hub 12 tpi front RH up to 64
required quantities: 1
|
| VA46MGB-18 |
Grease cap wire wheels
required quantities: 2
|
| VA47MGB-18 |
Bolt
required quantities: 4
|
| VA49MGB-18 |
Top trunnion block
required quantities: 2
|
| ZK65SPT |
Nut 3/8” reinforced
required quantities: 8
|
| VA72MGBCOMP |
Nylatron bush kit for competition use (replaces all front suspension rubber bushes) both sides - w(o. illustr.)
required quantities: 1
|
| VA75MGB |
Bush kit front suspension **) contents: VA70MGB,VA71MGB, VA16MGB + 8x VA12MGA-23
required quantities: 1
|
| VA80MGB |
Fitting kit for Koni shock absorbers (w/o absorber)
required quantities: 1
|
| VA80AMGB |
Shock absorber to no. VA80MGB
required quantities: 1
|
| WZ102 |
Reamer, king pin bush
required quantities: 1
|
