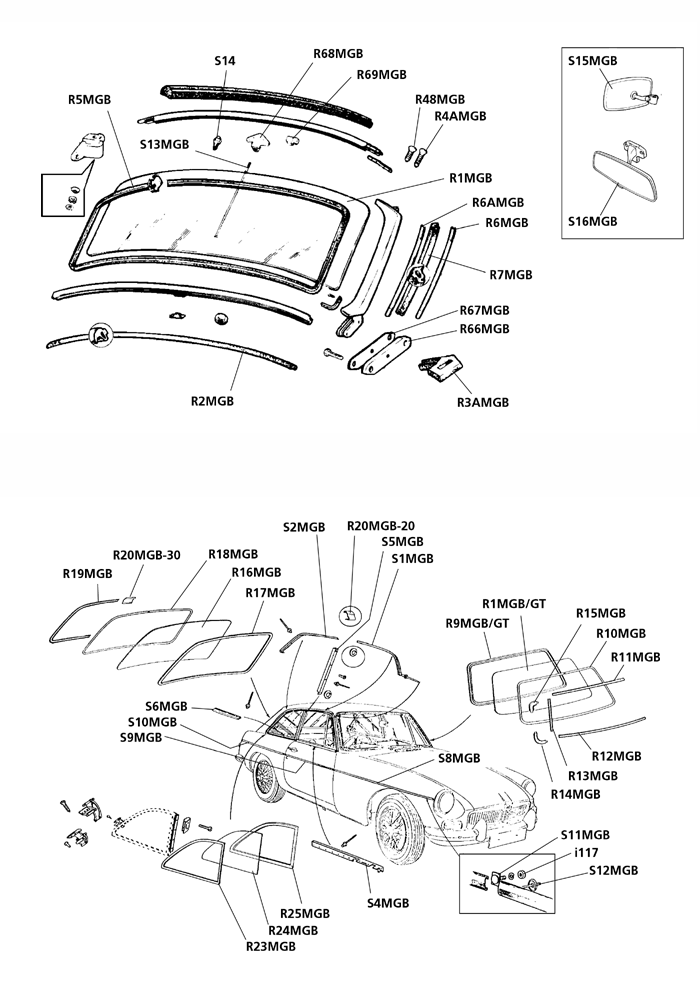

Windscreen Rear Glass & Body Finishers Roadster |
 |
| R1MGB |
Glass windscreen clear
required quantities: 1
|
| R1AMGB |
Glass windscreen tinted, green
required quantities: 1
|
| R2MGB |
Rubber seal frontscreen lower
required quantities: 1
|
| R3AMGBL |
Pillar rubber LH
required quantities: 1
|
| R3AMGBR |
Pillar rubber RH
required quantities: 1
|
| R4AMGB |
use S3/16"x5/16"SK Countersunk screw long (frame upper)
required quantities: 4
|
| S3/16“x5/16"SK |
countersunk screw 3/16“x5/16“ UNF
Type: BN4-BT7 required quantities: 4
|
| R4BMGB |
Countersunk screw short (frame upper)
required quantities: 4
|
| R5MGB |
Seal glass to frame
required quantities: 1
|
| R6MGB |
Retainer seal
required quantities: 2
|
| R6AMGB |
Retainer pillar seal
required quantities: 2
|
| R7MGB |
Sealing strip frontscreen/pillar
required quantities: 2
|
| R40MGBL |
Strenghtener lower corner LH
required quantities: 1
|
| R40MGBR |
Strenghtener lower corner RH
required quantities: 1
|
| i52MGB |
Bracket, hood fastening
required quantities: 2
|
| R66MGB |
Packing, outer (pillar)
required quantities: 2
|
| R67MGB |
Packing, inner (pillar)
required quantities: 2
|
| R68MGB |
Bracket rear view mirror up to 68
required quantities: 1
|
| R68AMGB |
Bracket rear view mirror from 69 on
required quantities: 1
|
| R68BMGB |
Bracket rear view mirror from 70 on
required quantities: 1
|
| R69MGB |
Bracket sun visor anchor
required quantities: 2
|
| R69AMGB |
Bracket sun visor pivot
required quantities: 2
|
| S3/16"x7/16SK |
countersunk screw 3/16”x7/16"
required quantities: 4
|
| |
GT |
|
| R1MGB/GT |
Glass windscreen clear
required quantities: 1
|
| R1AMGB/GT |
Glass windscreen tinted, green
required quantities: 1
|
| S1MGB/GTL |
Moulding finisher MGB-GT front LH
required quantities: 1
|
| S1MGB/GTR |
Moulding finisher MGB-GT front RH
required quantities: 1
|
| S2MGB/GTL |
Moulding finisher MGB-GT rear LH
required quantities: 1
|
| S2MGB/GTR |
Moulding finisher MGB-GT rear RH
required quantities: 1
|
| S4MGB/GTL |
Finisher door waist MGB-GT LH
required quantities: 1
|
| S4MGB/GTR |
Finisher door waist MGB-GT LH
required quantities: 1
|
| S5MGB/GTL |
Finisher cap b-post MGB-GT up to 72 LH
required quantities: 1
|
| S5MGB/GTR |
Finisher cap b-post MGB-GT up to 72 RH
required quantities: 1
|
| S5AMGB/GTL |
Finisher cap b-post MGB-GT from 72 LH
required quantities: 1
|
| S5AMGB/GTR |
Finisher cap b-post MGB-GT from 72 RH
required quantities: 1
|
| S6MGB/GTL |
Finisher quarter light LH
required quantities: 1
|
| S6MGB/GTR |
Finisher quarter light RH
required quantities: 1
|
| R9MGB/GT |
Frontscreen rubber
required quantities: 1
|
| R10MGB/GT |
Filler strip
required quantities: 1
|
| R11MGB/GT |
Finisher frontscreen trim upper
required quantities: 1
|
| R12MGB/GT |
Finisher frontscreen bottom
required quantities: 1
|
| R13MGB/GTL |
Finisher frontscreen LH
required quantities: 1
|
| R13MGB/GTR |
Finisher frontscreen RH
required quantities: 1
|
| R14MGB/GT |
Corner finisher lower
required quantities: 2
|
| R15MGB/GT |
Finisher corner upper
required quantities: 2
|
| R16AMGB/GT |
Rear screen heated
required quantities: 1
|
| R16BMGB/GT |
Rear screen heated, tinted
required quantities: 1
|
| R17MGB/GT |
Backlight glasing rubber
required quantities: 1
|
| R19MGB/GTL |
Backlight finisher LH
required quantities: 1
|
| R19MGB/GTR |
Backlight finisher LH
required quantities: 1
|
| R20MGB-20 |
Clip moulding finisher MGB-GT
required quantities: 2
|
| R20MGB-30 |
Backlight finisher clip
required quantities: 2
|
| R23MGB/GT |
Rubber seal quarter light
required quantities: 2
|
| R24MGB/GTL |
Glass quarter light rear LH
required quantities: 1
|
| R24MGB/GTR |
Glass quarter light rear RH
required quantities: 1
|
| R25MGB/GTL |
Seal quarter light (black) rear LH
required quantities: 1
|
| R25MGB/GTR |
Seal quarter light (black) rear RH
required quantities: 1
|
| R61MGB/GT |
Frontscreen moulding set (8 pcs - contains R11,12,13,14+15MGB)
required quantities: 1
|
| |
all models |
|
| S8MGBL |
Finisher wing MGB front LH
required quantities: 1
|
| S8MGBR |
Finisher wing MGB front RH
required quantities: 1
|
| S8MGB-SET |
Finisher kit 6 pieces (S8+S9+S10MGB x 2)
required quantities: 1
|
| S9MGBL |
Finisher door MGB LH
required quantities: 1
|
| S9MGBR |
Finisher door MGB RH
required quantities: 1
|
| S10MGBL |
Finisher rear wing MGB LH
required quantities: 1
|
| S10MGBR |
Finisher rear wing MGB RH
required quantities: 1
|
| S11MGB |
Stud plate finisher
required quantities: 6
|
| S12MGB |
Wing finisher clip MGB
required quantities: ca. 50
|
| S13MGB |
Centre rod, chrome
required quantities: 1
|
| S15MGB |
Interior mirror up to 70
required quantities: 1
|
| S16MGB |
Interior mirror dipping from 70 on
required quantities: 1
|
| i117 |
Nut UNF 3/16 x 1/8“
required quantities: 6
|
