Engine 18G & 18GA

Engine 3 bearing engine 18G, 18GA
Part No. Description Illustration
click to enlarge

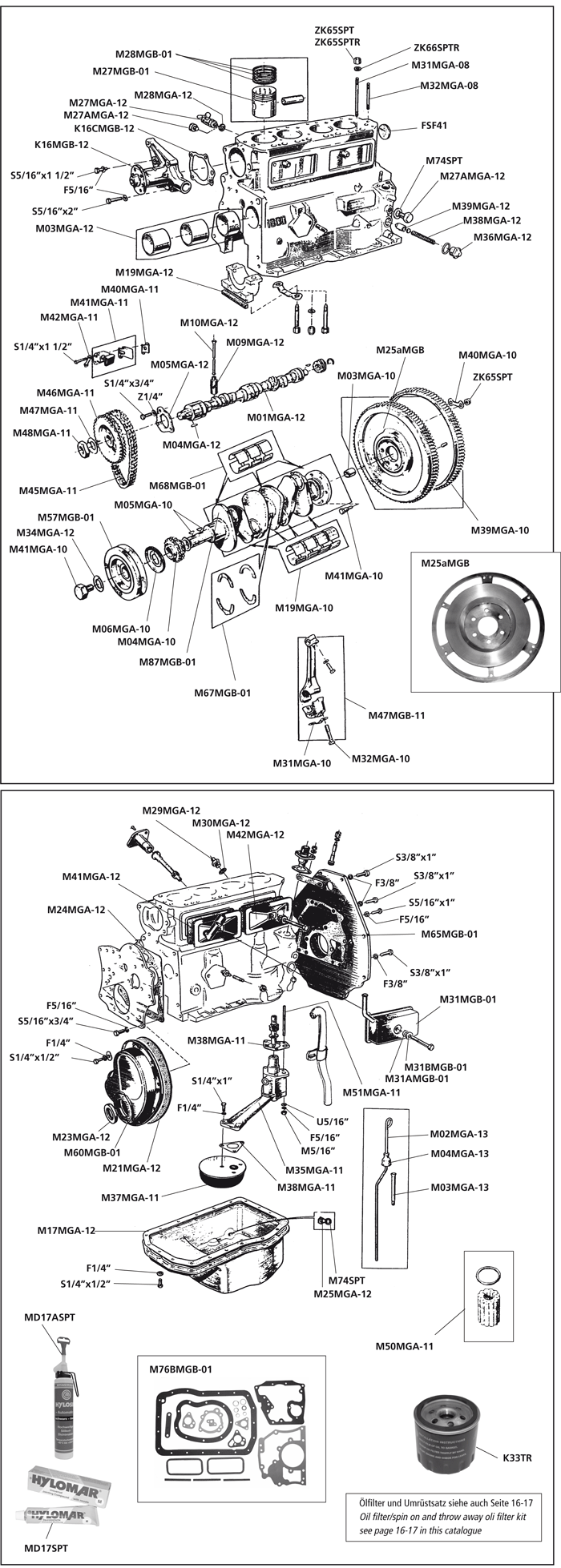

Engine 3 bearing engine 18G, 18GA Part 1		 FKG_5190110000.png
M01MGB-18G Exch. engine MGB1800 (63-64), 3-main bearing, lead fre 90100
required quantities: 1
M01MGA-12 Camshaft
required quantities: 1
M03MGA-12 Camshaft bearing set
required quantities: 1
M03MGA-10 Bush crankshaft spigot
required quantities: 1
M04MGA-10 Sprocket crankshaft Duplex
required quantities: 1
M04MGA-12 Key woodruff camshaft
required quantities: 1
M05MGA-12 Plate retaining camshaft
required quantities: 1
M05MGA-10 Key crankshaft
required quantities: 2
M06MGA-10 Oil thrower
required quantities: 1
M09MGA-12 Cam follower
required quantities: 8
M10MGA-12 Push rod
required quantities: 8
K16MGB-12 Water pump 18G/18GA 62-64
required quantities: 1
K16CMGB-12 Gasket water pump/crankcase for K16MGB-12
required quantities: 1
M19MGA-10/STD Big end bearings set 3-mains (std)
required quantities: 1
M19MGA-10/10 Big end bearings set 3-mains (0.10)
required quantities: 1
M19MGA-10/20 Big end bearings set 3-mains (0.20)
required quantities: 1
M19MGA-10/30 Big end bearings set 3-mains (0.30)
required quantities: 1
M19MGA-10/40 Big end bearings set 3-mains (0.40)
required quantities: 1
M19MGA-10/60 Big end bearings set 3-mains (0.60)
required quantities: 1
M19MGA-12 Main cap cork gasket
required quantities: 2
M25AMGB Lightweight steel flywheel to replace the original flywheel
required quantities: 1
M27AMGA-12 Plug
required quantities: 1
M27MGA-12 Drain tap engine
required quantities: 1
M27MGB-01/STD Piston set 18G-GA (std)
required quantities: 1
M27MGB-01/20 Piston set 18G-GA (0.20)
required quantities: 1
M27MGB-01/30 Piston set 18G-GA (0.30)
required quantities: 1
M27MGB-01/40 Piston set 18G-GA (0.40)
required quantities: 1
M27MGB-02/STD Piston set 18GB up to GG, C R8.75:1 (up to 70) (std)
required quantities: 1
M27MGB-02/20 Piston set 18GB up to GG, C R8.75:1 (up to 70) (0.20)
required quantities: 1
M27MGB-02/30 Piston set 18GB up to GG, C R8.75:1 (up to 70) (0.30)
required quantities: 1
M27MGB-02/40 Piston set 18GB up to GG, C R8.75:1 (up to 70) (0.40)
required quantities: 1
M27MGB-02/60 Piston set 18GB up to GG, C R8.75:1 (up to 70) (0.60)
required quantities: 1
M28MGB-01/STD Piston rings set up to 18G-GA (std)
required quantities: 1
M28MGB-01/20 Piston rings set up to 18G-GA (0.20)
required quantities: 1
M28MGB-01/30 Piston rings set up to 18G-GA (0.30)
required quantities: 1
M28MGB-01/40 Piston rings set up to 18G-GA (0.40)
required quantities: 1
M28MGB-01/60 Piston rings set up to 18G-GA (0.60)
required quantities: 1
M28MGA-12 Washer (fibre) 1/2 x 3/4“
required quantities: 4
M31MGA-10 Tab washer connecting rod bolt
required quantities: 4
M31MGA-08 Stud cylinder head mgb long
required quantities: 7
M32MGA-08 Stud cylinder head short
required quantities: 8
M32MGA-10 Con rod bolt
required quantities: 1
M34MGA-12 Pulley bolt lock tab
required quantities: 1
M36MGA-12 Cap nut oil pressure valve
required quantities: 1
M38MGA-12 Spring oil pressure valve
required quantities: 1
M39MGA-12 Oil pressure relief valve
required quantities: 1
M39MGA-10 Starter gear ring on flywheel from
required quantities: 3
M40MGA-10 Washer lock flywheel 3-bear.
required quantities: 1
M40MGA-11 Gasket timing chain tensioner
required quantities: 6
M41MGA-10 Bolt pulley crankshaft/flywheel
required quantities: 1
M41MGA-11 Timing chain tensioner
required quantities: 4
FSF41 Core plug engine block (41 mm)
required quantities: 1
FSF42 Core plug engine block (42 mm)
required quantities: 1
M42MGA-11 Lock tab chain tensioner
required quantities: 1
M45MGA-11 Timing chain early dupl0ex
required quantities: 1
M46MGA-11 Camshaft gear duplex
required quantities: 1
M47MGA-11 Lock washer
required quantities: 2
M47MGB-11 Con rod no 2 + 4
required quantities: 2
M47AMGB-11 Con rod no 1 + 3
required quantities: 1
M47MGB Bold main bearing cap (replaces early stud)
required quantities: 6
M48MGA-11 Nut camshaft gear
required quantities: 1
M57MGB-01 Pulley crankshaft
required quantities: 1
ZK65SPT Nut 3/8” reinforced
required quantities: 11/6
ZK65SPTR Cylinder head nut competition
required quantities: 11
ZK66SPTR Plain washer under cylinder head nut, hardened
required quantities: 11
M67MGB-01/STD Thrust washer set (std)
required quantities: 1
M67MGB-01/05 Thrust washer set (0.05)
required quantities: 1
M81MGB-02/10 Main bearings set (0.10)
required quantities: 1
M81MGB-02/20 Main bearings set (0.20)
required quantities: 1
M81MGB-02/30 Main bearings set (0.30)
required quantities: 1
M81MGB-02/40 Main bearings set (0.40)
required quantities: 1
M81MGB-02/60 Main bearings set (0.60)
required quantities: 1
M74SPT cupper washer oil drain plug
required quantities: 1
M87MGB-01 Exch. crankshaft 18G/GA MGB 3-bearing
required quantities: 1
MÖ/5L Motor oil 20W50, 5 liter container
required quantities: 1

Engine 3 bearing engine 18G, 18GA Part 2
M02MGA-13 Oil dipstick
required quantities: 1
M03MGA-13 Dipstick tube
required quantities: 1
M04MGA-13 Rubber seal oil dipstick
required quantities: 1
M17MGA-12 Oil sump gasket MGB 3 bearing
required quantities: 1
M21MGA-12 Gasket timing chain cover
required quantities: 1
M23MGA-12 Oil seal timing chain cover
required quantities: 1
M24MGA-12 Gasket engine mounting plate front
required quantities: 1
M25MGA-12 Oil drain plug
required quantities: 1
M29MGA-12 Union oil pressure gauge pipe
required quantities: 1
M30MGA-12 Washer oil/water drain plug
required quantities: 1
M74SPT Washer oil/water drain plug
required quantities: 1
M31MGB-01 Engine side cover with oil breather
required quantities: 1
M31AMGB-01 Rubber seal engine side cover
required quantities: 2
M31BMGB-01 Washer cup cover
required quantities: 1
M35MGA-11 Oil pump MGB 3-bearing engine
required quantities: 1
M37MGA-11 Strainer oil pump
required quantities: 1
M38MGA-11 Gasket oil pump/crankcase MGB 3-bearing
required quantities: 1
M41MGA-12 Gasket engine side cover (cork)
required quantities: 2
M42MGA-12 Engine side cover rear
required quantities: 1
M50MGA-11 Oil filter paper element
required quantities: 1
M51MGA-11 Stud oil pump MGB
required quantities: 3
M60MGB-01 Timing chain cover
required quantities: 1
M65MGB-01 Gasket engine mounting plate/block
required quantities: 1
M74SPT cupper washer oil drain plug
required quantities: 1
M76BMGB-01 Engine gasket set bottom
required quantities: 1
M25MGA-13 Adaptor for oil filter no. K33TR up to 69 90050
required quantities: 1
K33TR Oil filter
required quantities: 1
MÖ/5L Motor oil 20W50, 5 liter container
required quantities: 1
MÖRACE Motor oil, VALVOLINE “Racing” 20W50, per liter (5 liter container)
required quantities: 5
MD17SPT gasket lube "Hylomar" 80ml
required quantities: A/R
MD17aSPT Silicone sealant - black „Hylosil” 200 ml
required quantities: A/R

  Engine will be refurbished and an remounted in our own workshop! For our rebuild enginees & cylinder heads we guarantee for 2 yeras. (Rebuilding of aour existing enggine possible - please fee free to ask for)


*) Note to no. M25MGA-13: The use of a „Spin-on“-oil filter will make routine oil changing amuch cleaner and easier operation. Our „Spinon“-oil filter no. K33TR has ainternal anti-drain valve to prevent the oil draining back into thesump after starting the engine; oil flows directly to the bearingsand not first into the oil filter anymore!
