Sběrné potrubí 3000 (6 port)

Sběrné potrubí 3000 (6 port, triple carbs)

Obj. číslo Popis Ilustrace
kliněte pro zvětšení

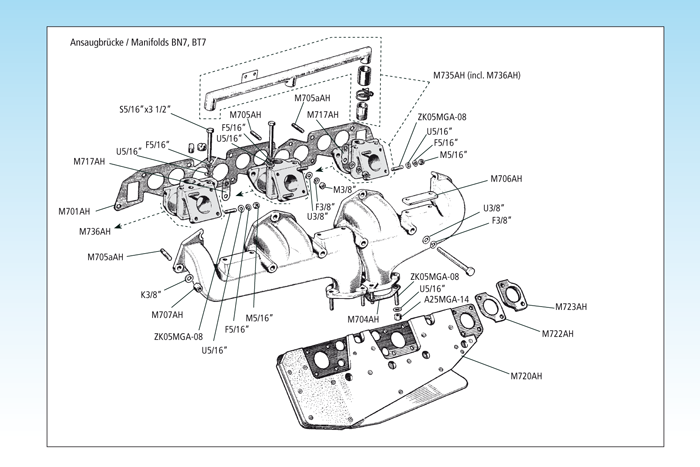

Manifolds BN7, BT7
ZK05MGA-08 use M66aSPT/40
Type: BN7, BT7 required quantities: A/R
M66aSPT/40 stud 5/16"
required quantities: 2
A25MGA-14 nut, brass 5/16“ UNF
Type: BN7, BT7 required quantities: 6
M701AH gasket, manifolds to head
Type: BN7, BT7 required quantities: 1
M704AH exhaust flange gasket
Type: BN7, BT7 required quantities: 2
M705AH stud, head to inlet manifold, short
Type: BN7, BT7 required quantities: 8
M705aAH stud, head to inlet manifold, long
Type: BN7, BT7 required quantities: 9
M706AH gasket, inlet to exhaust manifold
Type: BN7, BT7 required quantities: 3
M707AH nut, brass (long) 3/8“UNF
Type: BN7, BT7 required quantities: 6
M717AH clip, thermo capillary pipe
Type: BN7, BT7 required quantities: 2
M720AH heat shield, triple carb.
Type: BN7, BT7 required quantities: 1
M722AH gasket, heat shield
Type: BN7, BT7 required quantities: A/R
M723AH insulating block
Type: BN7, BT7 > 29E-H929 required quantities: 3
M735AH inlet manifold set (front, center, rear) SU 2“
Type: BN7, BT7 < 29E-H928 required quantities: 1
M736AH inlet manifold set (front, center, rear) SU 2“ w/o balance pipe
Type: BN7, BT7 < 29E-H928 required quantities: 1
K3/8“ washer, plain 3/8“
Type: BN7, BT7 required quantities: 6
