Karburátor Typ H4 & H6

Karburátor Typ H4, H6 (BN1, BN2, BN4 starší)

Obj. číslo Popis Ilustrace
klikněte pro zvětšení

Carburetors Type H4, H6 (BN1, BN2, BN4 early)
V1AH/BN1 carburettor set H4, exchange
Type: BN1, BN2 required quantities: 1
V1AH/BN1-LM carburettor set H6 „Le Mans“, exchange
Type: 100M required quantities: 1
V1AH/BN4 carburettor set H4, exchange
Type: BN4 required quantities: 1
V1HS screw, chamber to body
Type: BN1, BN2, BN4, 100M required quantities: 6
M2BA nut
Type: BN1, BN2, BN4, 100M required quantities: 1
V3TRH4 shaft, throttle
Type: BN1, BN2, BN4 required quantities: 2
V04MGA-16 jet bearing kit
Type: BN1, BN2, BN4, 100M required quantities: 2
V5HS6 screw
Type: BN1, BN2, BN4, 100M required quantities: 4
V06MGA-16 gasket, manifold to carburettor
Type: BN4 required quantities: 2
V6TR coupling assembly
Type: BN1, BN2, BN4, 100M required quantities: 2
V6HS needle and seat assembly
Type: BN1, BN2, BN4, 100M required quantities: 2
V10TR screw, needle locking
Type: BN1, BN2, BN4, 100M required quantities: 2
V12MGA lever, hinged
Type: BN1, BN2, BN4, 100M required quantities: 2
V15MGA-16 washer, fiber
Type: 100M required quantities: 4
WZ16MGA-53 wrench, jet adjusting
Type: BN1, BN2, BN4, 100M required quantities: 1
V22MGA-16 spring, jet lever return
Type: BN1, BN2, BN4, 100M required quantities: 2
V28TRH6 cap and damper assembly, brass
Type: BN1, BN2, BN4, 100M required quantities: 2
V29aMGA-16 lever, throttle stop
Type: BN1, BN2, BN4, 100M required quantities: 1
V30HD6/BN4 spring, piston return, yellow
Type: BN1, BN2 required quantities: 2
V30TRH6 spring, piston return, red
Type: 100M, BN4 required quantities: 2
V31H4QA needle, jet, rich QA (H4 carb.)
Type: BN1, BN2 required quantities: 2
V31H4QW needle, jet, std. QW (H4 carb.)
Type: BN1, BN2 required quantities: 2
V31H4AT needle, jet, lean AT (H4 carb.)
Type: BN1, BN2 required quantities: 2
V31H6OA6 needle, jet, rich OA6 (H6 carb.)
Type: 100M required quantities: 2
V31H6OA7 needle, jet, std. OA7 (H6 carb.)
Type: 100M required quantities: 2
V31H6OA8 needle, jet, lean OA8 (H6 carb.)
Type: 100M required quantities: 2
V70MGA-16 needle, jet, rich 4 (H4 carb.)
Type: BN4 required quantities: 2
V31H4/AJ needle, jet, std. AJ (H4 carb.)
Type: BN4 required quantities: 2
V31H4/M1 needle, jet, lean M1 (H4 carb.)
Type: BN4 required quantities: 2
V38SUH4 bolt, chamber to body
Type: BN1, BN2, BN4, 100M required quantities: 2
V38aTR bush, throttle shaft
Type: BN1, BN2, BN4, 100M required quantities: 4
V39TRH4 jet
Type: BN1, BN2, BN4 required quantities: 2
V39TRH6 jet
Type: 100M required quantities: 2
V40HS4 disc, throttle
Type: BN1, BN2, BN4 required quantities: 2
V45MGA-16 pin and spring assembly
Type: BN1, BN2, BN4, 100M required quantities: 2
V48TRH6 float, brass
Type: BN1, BN2, BN4, 100M required quantities: 2
V48MGA-16 washer aluminum
Type: BN1, BN2, BN4, 100M required quantities: 2
V49MGA-16 cap nut
Type: 100M required quantities: 2
V50MGA-16 spring, adjusting nut
Type: BN1, BN2, BN4, 100M required quantities: 2
V51MGA-16 ring, sealing (aluminum)
Type: BN1, BN2, BN4, 100M required quantities: 2
V52MGA-16 pin
Type: BN1, BN2, BN4, 100M required quantities: 2
V53MGA-16 spring, gland
Type: BN1, BN2, BN4, 100M required quantities: 2
V54TRH6 gasket, float chamber lid
Type: BN1, BN2, BN4, 100M required quantities: 2
V56MGA-16 ring, sealing (cork)
Type: BN1, BN2, BN4, 100M required quantities: 2
V57MGA-16 washer, gland (brass)
Type: BN1, BN2, BN4, 100M required quantities: 4
V58MGA-16 washer, gland (cork)
Type: BN1, BN2, BN4, 100M required quantities: 4
V59MGA-16 nut, adjusting
Type: BN1, BN2, BN4, 100M required quantities: 2
V60MGA-16 washer, top bearing (copper)
Type: BN1, BN2, BN4, 100M required quantities: 2
V63MGA-16 bearing, top
Type: BN1, BN2, BN4, 100M required quantities: 2
V64MGA-16 bearing, buttom
Type: BN1, BN2, BN4, 100M required quantities: 2
V61MGA-16 pin
Type: BN1, BN2, BN4, 100M required quantities: 2
V62MGA-16 bolt
Type: BN1, BN2, BN4, 100M required quantities: 6
V65MGA-16 bolt, pivot
Type: BN1, BN2, BN4, 100M required quantities: 1
V66MGA-16 union, vacuum advance, rear carb.
Type: BN1, BN2, BN4, 100M required quantities: 1
V69MGA-16 link, jet lever
Type: BN1, BN2, BN4, 100M required quantities: 1/2
V72HS2 gasket, manifold to carb.
Type: BN1, BN2 required quantities: 2/4
V74MGA-16 pin, tapered
Type: BN1, BN2, BN4, 100M required quantities: 1/2
M75aMGB washer, fiber
Type: BN1, BN2, BN4, 100M required quantities: A/R
V67MGA-16 spring, return
Type: BN1, BN2, BN4, 100M required quantities: 2
V75MGA-16 lid, float chamber, front + rear
Type: BN1, BN2, 100M required quantities: 2
V75MGA-16 lid, float chamber, rear
Type: BN4 required quantities: 1
V76MGA-16 lid, float chamber, front
Type: BN4 required quantities: 1
M76MGB bolt, banjo
Type: BN1, BN2, BN4, 100M required quantities: 2
V82GT6 distance piece
Type: BN1, BN2 required quantities: 2
V90TRH6 gasket kit for 1 carb. H4/H6
Type: BN1, BN2, BN4, 100M required quantities: 2
V91TRH4 rebuild kit for 1carb. H4
Type: BN1, BN2, BN4 required quantities: 2
V91TRH6 rebuild kit for 1carb. H6
Type: 100M required quantities: 2
SU-VÖ oil, SU carb. 150 ml
Type: BN1, BN2, BN4, 100M required quantities: A/R

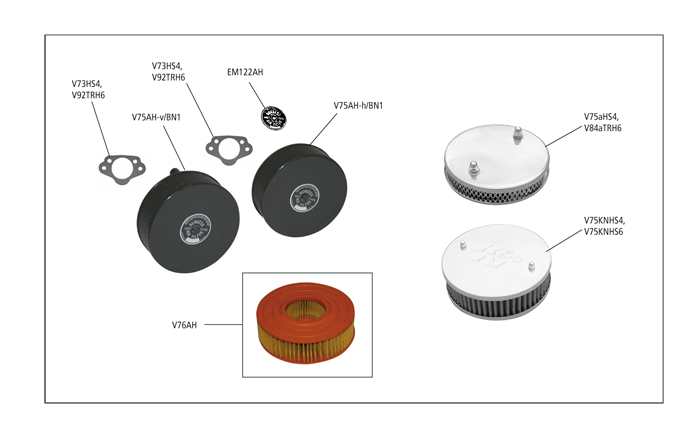

Air cleaner
V75AH-V/BN4 air claener, front (with connection)
Type: BN4, BN6, BN7, BT7 required quantities: 1
V75AH-H/BN4 air cleaner, rear (w/o connection)
Type: BN4, BN6, BN7, BT7 required quantities: 1
V75KNHS6 air cleaner, K&N type, 63 mm
Type: BN4, BN6, BN7, BT7 required quantities: 2
V82TRH6 insulating block
Type: BN4, BN6, BN7, BT7 required quantities: 2
V83TRH6 gasket
Type: BN4, BN6, BN7, BT7 required quantities: 2
V92TRH6 gasket, air cleaner to carb.
Type: BN4, BN6, BN7, BT7 required quantities: 2
EM122AH/BN4 decal, air cleaners
Type: BN4, BN6, BN7, BT7 required quantities: 2
