Karburátor Typ HS4

Karburátor Typ HS4 (BN7/BT7)

Obj. číslo Popis Ilustrace
klikněte pro zvětšení

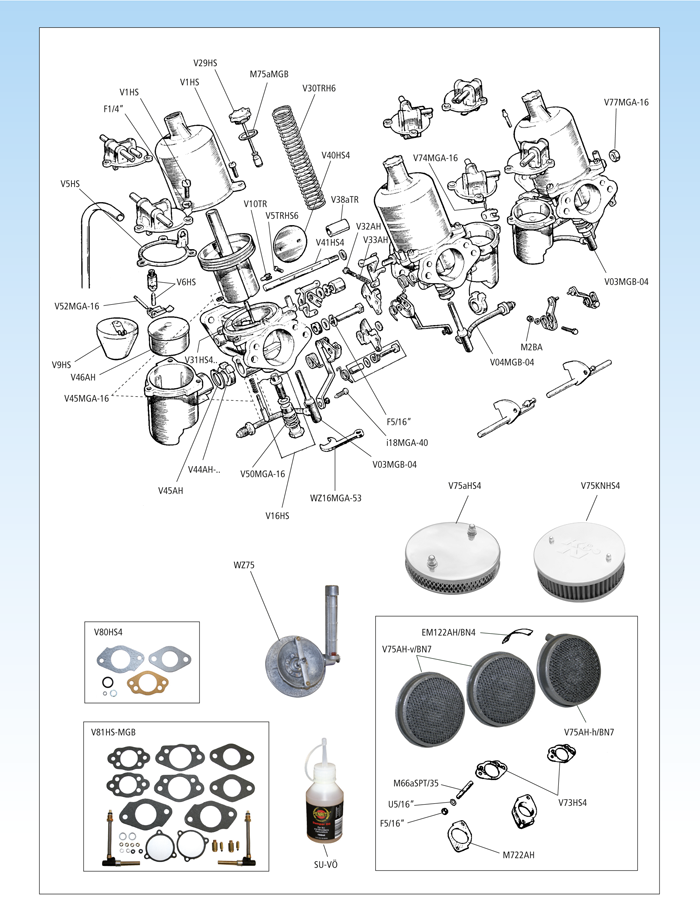

Carburetors Type HS4 (BN7/BT7)
V1AH/BT7 carburettor set (3 carbs.), exchange
Type: BN7, BT7 required quantities: 1
V1HS screw, chamber to body
Type: BN7, BT7 required quantities: 18
M2BA nut 2BA
Type: BN7, BT7 required quantities: 3
V03MGB-04 jet assembly, front & rear carbs.
Type: BN7, BT7 required quantities: 2
V04MGB-04 jet assembly, center carb.
Type: BN7, BT7 required quantities: 1
V5HS6 screw
Type: BN7, BT7 required quantities: 6
V5HS gasket, float chamber lid
Type: BN7, BT7 required quantities: 3
V6HS needle & seat assembly
Type: BN7, BT7 required quantities: 2/3
V9HS float
Type: BN7, BT7 required quantities: 2
V10TR screw, needle locking
Type: BN7, BT7 required quantities: 3
WZ16MGA-53 wrench, jet adjusting
Type: BN7, BT7 required quantities: 1
i18MGA-40 screw, self-tapping
Type: BN7, BT7 required quantities: 3
V29HS cap and damper assembly
Type: BN7, BT7 required quantities: 3
V30TRH6 spring, piston return, red
Type: BN7, BT7 required quantities: 3
V31HS4DK needle, jet, rich DK
Type: BN7, BT7 required quantities: 3
V31HS4DJ needle, jet, std. DJ
Type: BN7, BT7 required quantities: 3
V31HS4DH needle, jet, lean DH
Type: BN7, BT7 required quantities: 3
V32AH screw, throttle stop
Type: BN7, BT7 required quantities: 6
V33AH spring
Type: BN7, BT7 required quantities: 6
V38aTR bush, throttle shaft
Type: BN7, BT7 required quantities: 6
V41HS4 shaft, throttle standard
Type: BN7, BT7 required quantities: 3
V40HS4 disc, throttle
Type: BN7, BT7 required quantities: 3
V44AH-V+H/F adaptor, front & rear carbs.
Type: BN7, BT7 < 29E-H928 required quantities: 2
V44AH-V+H/S adaptor, front & rear carbs.
Type: BN7, BT7 > 29E-H929 required quantities: 2
V44AH-M/F adaptor, center carb.
Type: BN7, BT7 < 29E-H928 required quantities: 1
V44AH-M/S adaptor, center carb.
Type: BN7, BT7 > 29E-H929 required quantities: 1
V45AH washer, adaptor
Type: BN7, BT7 > 29E-H929 required quantities: 3
V45MGA-16 pin & spring assembly
Type: BN7, BT7 required quantities: 3
V46AH float, brass
Type: BN7, BT7 < 29E-H2994 required quantities: 3
V50MGA-16 spring, jet return
Type: BN7, BT7 required quantities: 3
V52MGA-16 pin
Type: BN7, BT7 required quantities: 3
V74MGA-16 pin, tapered
Type: BN7, BT7 required quantities: 2
M75aMGB washer, fiber
Type: BN7, BT7 required quantities: 3
V77MGA-16 nut, for lever, rear carb.
Type: BN7, BT7 required quantities: 1
V80HS4 gasket kit, for 1 carb.
Type: BN7, BT7 required quantities: 3
V81HS-MGB rebuild kit, for front + center carbs.
Type: BN7, BT7 required quantities: 1
V81HS-BN7 rebuild kit, for rear carb.
Type: BN7, BT7 required quantities: 1
SU-VÖ oil, SU carb. 150 ml
Type: BN7, BT7 required quantities: A/R

Air cleaner

M66aSPT/35 stud, air cleaner to carb.
Type: BN7, BT7 required quantities: 6
V73HS4 gasket, air cleaner to carb.
Type: BN7, BT7 required quantities: 3
V75AH-V/BN7 air claener, front & center (with connection)
Type: BN7, BT7 required quantities: 2
V75AH-H/BN7 air cleaner, rear (w/o connection)
Type: BN7, BT7 required quantities: 1
V75aHS4 air cleaner, chrome
Type: BN7, BT7 required quantities: 3
V75KNHS4 air cleaner, K&N type
Type: BN7, BT7 required quantities: 3
EM122AH/BN4 decal, air cleaners
Type: BN7, BT7 required quantities: 3
M722AH gasket carb. mounting
Type: BN7, BT7 required quantities: 3/6
WZ75 carburettor synchronizer
Type: BN7, BT7 required quantities: A/R
