Karburátor Typ HS6

Karburátor Typ HS6 (BJ7)

Obj. číslo Popis Ilustrace
klikněte pro zvětšení

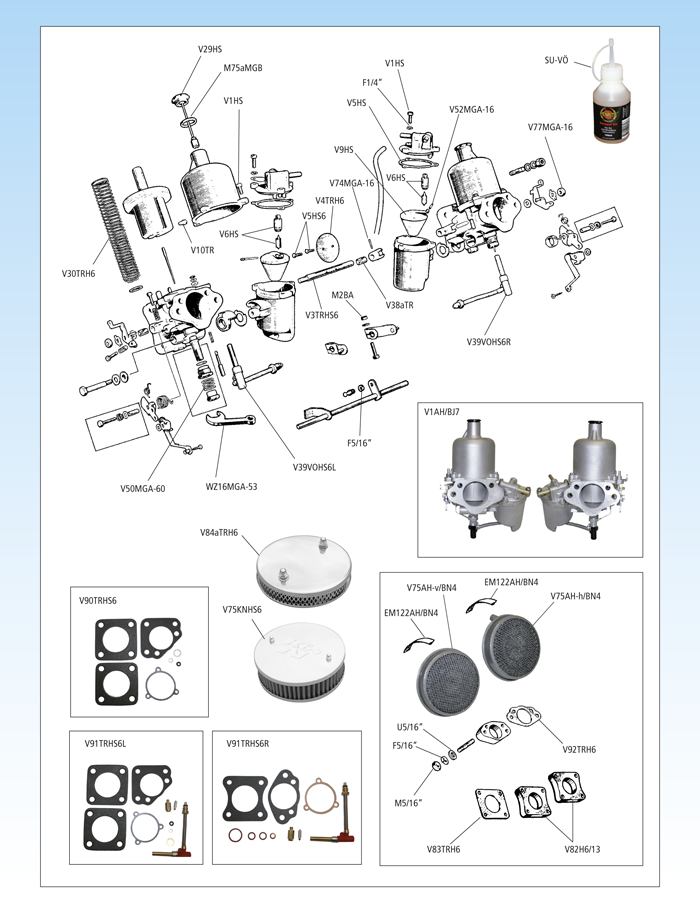

Carburetors Type HS6 (BJ7)
V1AH/BJ7 carburettor set, exchange
Type: BJ7 required quantities: 1
V1HS screw, float chamber lid / screw chamber to body
Type: BJ7 required quantities: 6
M2BA nut
Type: BJ7 required quantities: 2
V3TRHS6 shaft, throttle
Type: BJ7 required quantities: 2
V4TRH6 disc, throttle
Type: BJ7 required quantities: 2
V5HS gasket, float chamber lid
Type: BJ7 required quantities: 2
V5HS6 screw
Type: BJ7 required quantities: 4
V6HS needle and seat
Type: BJ7 required quantities: 2
V9HS float
Type: BJ7 required quantities: 2
V10TR screw, needle locking
Type: BJ7 required quantities: 2
WZ16MGA-53 wrench, jet adjusting
Type: BJ7 required quantities: 1
V29HS cap and damper assembly
Type: BJ7 required quantities: 2
V31HD6RD needle, jet, rich RD
Type: BJ7 required quantities: 2
V31HS6BC needle, jet, std. BC
Type: BJ7 required quantities: 2
V31HS6TZ needle, jet lean TZ
Type: BJ7 required quantities: 2
V38aTR bush, throttle shaft
Type: BJ7 required quantities: 4
V39VOHS6L jet assembly, front carb.
Type: BJ7 required quantities: 1
V39VOHS6R jet assembly, rear carb.
Type: BJ7 required quantities: 1
V44AH-M/S adaptor, front carb.
Type: BJ7 required quantities: 1
V44AH-V+H/S adaptor, rear carb.
Type: BJ7 required quantities: 1
V50MGA-16 spring, jet adjuster
Type: BJ7 required quantities: 2
V52MGA-16 pin
Type: BJ7 required quantities: 2
V74MGA-16 pin, tapered
Type: BJ7 required quantities: 2
M75aMGB washer, fiber
Type: BJ7 required quantities: 2
V77MGA-16 nut, for lever, front and rear carbs.
Type: BJ7 required quantities: 2
V90TRHS6 gasket kit for 1 carb.
Type: BJ7 required quantities: 2
V91TRHS6L rebuild kit, front carb.
Type: BJ7 required quantities: 1
V91TRHS6R rebuild kit, rear carb.
Type: BJ7 required quantities: 1
SU-VÖ oil, SU carb. 150 ml
Type: BJ7 required quantities: A/R

Air cleaner

V75AH-V/BN4 air claener, front (with connection)
Type: BJ7 required quantities: 1
V75AH-H/BN4 air cleaner, rear (w/o connection)
Type: BJ7 required quantities: 1
V75KNHS6 air cleaner K&N type
Type: BJ7 required quantities: 2
V82H6/13 insulating block, 13 mm thick
Type: BJ7 required quantities: 4
V83TRH6 gasket, carb. mounting
Type: BJ7 required quantities: 2
V84aTRH6 air cleaner, chrome
Type: BJ7 required quantities: 2
V92TRH6 gasket, air cleaner to carb.
Type: BJ7 required quantities: 2
EM122AH/BN4 decal, air cleaners Coopers
Type: BJ7 required quantities: A/R
