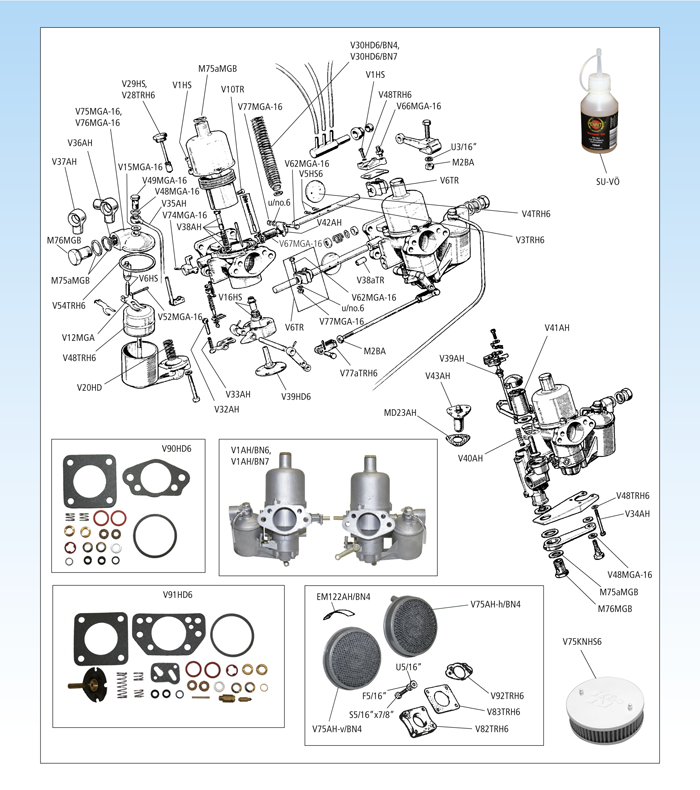

Karburátor Typ HD6 (BN4 starší - BN6, BN7/BT7)
|
| |
Carburetors Type HD6 (BN4 late - BN6, BN7/BT7 |
 |
| V1AH/BN7 |
carburettor set, exchange
Type: BN7, BT7 required quantities: 1
|
| V1AH/BN6 |
carburettor set, exchange
Type: BN4, BN6 required quantities: 1
|
| V1HS |
screw
Type: BN4, BN6, BN7, BT7 required quantities: A/R
|
| M2BA |
nut 2BA
Type: BN4, BN6, BN7, BT7 required quantities: 1/2
|
| V3TRH6 |
shaft, throttle
Type: BN4, BN6, BN7, BT7 required quantities: 2
|
| V4TRH6 |
disc, throttle
Type: BN4, BN6, BN7, BT7 required quantities: 2
|
| V5HS6 |
screw
Type: BN4, BN6, BN7, BT7 required quantities: 4
|
| V6TR |
coupling assembly
Type: BN4, BN6, BN7, BT7 required quantities: 2
|
| V6HS |
needle and seat assembly
Type: BN4, BN6, BN7, BT7 required quantities: 2
|
| V10TR |
screw, needle locking
Type: BN4, BN6, BN7, BT7 required quantities: 2
|
| V12MGA |
lever, hinged
Type: BN4, BN6, BN7, BT7 required quantities: 2
|
| V15MGA-16 |
washer, fiber
Type: BN4, BN6, BN7, BT7 required quantities: 1/2
|
| V16HS |
jet bearing kit
Type: BN4, BN6, BN7, BT7 required quantities: 2
|
| V20HD |
spring, jet return
Type: BN4, BN6, BN7, BT7 required quantities: 2
|
| MD23AH |
gasket
Type: BN7 & BT7 (AUC935) required quantities: 1
|
| V28TRH6 |
cap and damper assembly, brass
Type: BN4, BN6, BN7, BT7 bis 29D-H2863 required quantities: 2
|
| V29HS |
cap and damper assembly, brass
Type: BN7, BT7 ab 29D-H2864 required quantities: 2
|
| V30HD6/BN4 |
spring, piston return, yellow
Type: BN4, BN6 required quantities: 2
|
| V30HD6/BN7 |
spring, piston return, green
Type: BN7, BT7 required quantities: 2
|
| V31HD6RD |
needle, jet, rich RD
Type: BN4, BN6, BN7, BT7 required quantities: 2
|
| V31HD6CV |
needle, jet, rich std. CV
Type: BN4, BN6, BN7, BT7 required quantities: 2
|
| V31HD6SQ |
needle, jet, lean SQ
Type: BN4, BN6, BN7, BT7 required quantities: 2
|
| V32AH |
screw, jet adjusting
Type: BN4, BN6, BN7, BT7 required quantities: 2
|
| V33AH |
spring
Type: BN4, BN6, BN7, BT7 required quantities: 2
|
| V34AH |
bolt, chamber to body
Type: BN4, BN6, BN7, BT7 required quantities: 8
|
| V35AH |
drain pipe
Type: BN4, BN6, BN7, BT7 required quantities: 2
|
| V36AH |
filter
Type: BN4, BN6, BN7, BT7 required quantities: 2
|
| V37AH |
banjo, union
Type: BN4, BN6, BN7, BT7 required quantities: 1
|
| V38AH |
slow running valve kit
Type: BN4, BN6, BN7, BT7 required quantities: 2
|
| V38aTR |
bush, throttle shaft
Type: BN4, BN6, BN7, BT7 required quantities: 4
|
| V39HD6 |
jet assembly
Type: BN4, BN6, BN7, BT7 required quantities: 2
|
| V39AH |
needle, assembly
Type: BN7, BT7 29D-H2864 bis 29D-H6394 required quantities: 1
|
| V40AH |
spring, blue, for needle
Type: BN7, BT7 29D-H2864 bis 29D-H6394 required quantities: 1
|
| V41AH |
solenoid assembly
Type: BN7, BT7 29D-H2864 bis 29D-H6394 required quantities: 1
|
| V42AH |
clip
Type: BN4, BN6, BN7, BT7 required quantities: 2
|
| V43AH |
switch, thermal
Type: BN7 & BT7 (AUC935) required quantities: 1
|
| V48TRH6 |
float
Type: BN4, BN6, BN7, BT7 required quantities: 2
|
| V48MGA-16 |
washer, aluminum
Type: BN4, BN6, BN7, BT7 required quantities: 1/2
|
| V49MGA-16 |
cap nut
Type: BN4, BN6, BN7, BT7 required quantities: 2
|
| V52MGA-16 |
pin
Type: BN4, BN6, BN7, BT7 required quantities: 2
|
| V54TRH6 |
gasket, float chamber lid
Type: BN4, BN6, BN7, BT7 required quantities: 2
|
| V62MGA-16 |
bolt
Type: BN4, BN6, BN7, BT7 required quantities: A/R
|
| V66MGA-16 |
union, vacuum advance
Type: BN4, BN6, BN7, BT7 required quantities: 1
|
| V67MGA-16 |
spring, return
Type: BN4, BN6, BN7, BT7 required quantities: 2
|
| V74MGA-16 |
pin, tapered
Type: BN4, BN6, BN7, BT7 required quantities: A/R
|
| V75MGA-16 |
lid, float chamber, rear
Type: BN4, BN6, BN7, BT7 required quantities: A/R
|
| M75aMGB |
washer, fiber
Type: BN4, BN6, BN7, BT7 required quantities: 1/4
|
| M76MGB |
bolt banjo
Type: BN4, BN6, BN7, BT7 required quantities: 1/2
|
| V76MGA-16 |
lid, float chamber, with lever, front
Type: BN4, BN6, BN7, BT7 required quantities: 1
|
| V77MGA-16 |
nut
Type: BN4, BN6, BN7, BT7 required quantities: 2/4
|
| V77aTRH6 |
fork
Type: BN4, BN6, BN7, BT7 AUC914 & AUC963 required quantities: 2
|
| V90HD6 |
gasket kit
Type: BN4, BN6, BN7, BT7 required quantities: 2
|
| V91HD6 |
rebuild kit for 1carb.
Type: BN4, BN6, BN7, BT7 required quantities: 2
|
| u/no.6 |
washer, plain
Type: BN4, BN6, BN7, BT7 required quantities: 2/4
|
| SU-VÖ |
oil, SU carb. 150 ml
Type: BN4, BN6, BN7, BT7 required quantities: A/R
|
| |
Air cleaner |
|
| V75AH-V/BN4 |
air claener, front (with connection)
Type: BN4, BN6, BN7, BT7 required quantities: 1
|
| V75AH-H/BN4 |
air cleaner, rear (w/o connection)
Type: BN4, BN6, BN7, BT7 required quantities: 1
|
| V75KNHS6 |
air cleaner, K&N type, 63 mm
Type: BN4, BN6, BN7, BT7 required quantities: 2
|
| V82TRH6 |
insulating block
Type: BN4, BN6, BN7, BT7 required quantities: 2
|
| V83TRH6 |
gasket
Type: BN4, BN6, BN7, BT7 required quantities: 2
|
| V92TRH6 |
gasket, air cleaner to carb.
Type: BN4, BN6, BN7, BT7 required quantities: 2
|
| EM122AH/BN4 |
decal, air cleaners
Type: BN4, BN6, BN7, BT7 required quantities: 2
|
|
