4 rychlosti, vnitřní díly, BN2, BN4, BN6, BN7, BT7, BJ7, BJ8
|
| |

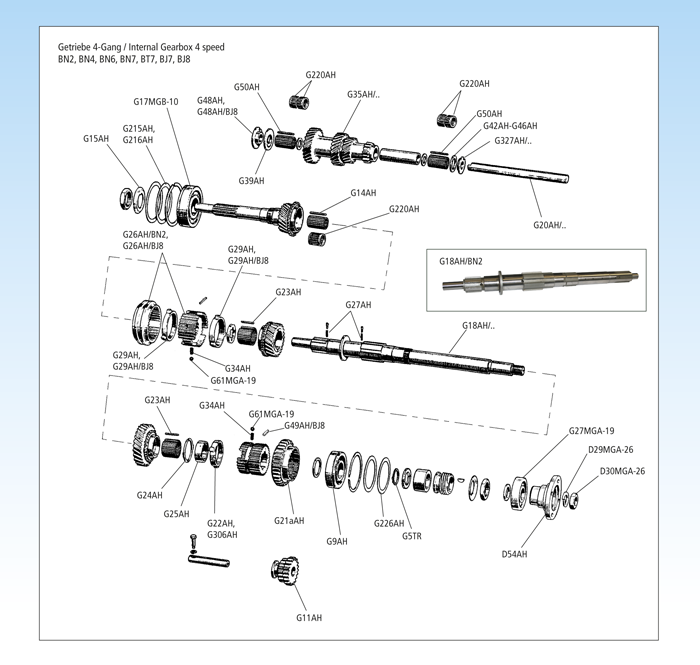

Internal Gearbox 4 speed BN2, BN4, BN6, BN7, BT7, BJ7, BJ8 |
 |
| G3AH |
gasket set, gearbox
Type: BN2, BN4, BN6, BN7, BT7, BJ7, BJ8 required quantities: 1
|
| G5TR |
circlip
Type: BN2, BN4, BN6, BN7, BT7, BJ7, BJ8 o/d required quantities: 1
|
| G9AH |
bearing, mainshaft
Type: BN2, BN4, BN6, BN7, BT7, BJ7, BJ8 required quantities: 1
|
| G11AH |
gear, reverse (18-14 cog)
Type: BN7, BT7, BJ7, BJ8 required quantities: 1
|
| G11AH/BN2 |
gear, reverse (19-14 cog)
Type: BN2, BN4, BN6, required quantities: 1
|
| G14AH |
bearing, needle, 1st motion shaft
Type: BN2, BN4, BN6, BN7, BT7, BJ7 required quantities: A/R
|
| G15AH |
lockwasher
Type: BN2, BN4, BN6, BN7, BT7, BJ7, BJ8 required quantities: 1
|
| G17MGB-10 |
bearing, 1st motion shaft
Type: BN2, BN4, BN6, BN7, BT7, BJ7, BJ8 required quantities: 1
|
| G18AH/BN2 |
mainshaft, overdrive
Type: BN2, BN4, BN6 required quantities: 1
|
| G18AH/BN7 |
use G18AH/BJ7
Type: BN7 + BT7 < 29D10543 seitengesch./sideshift required quantities: 1
|
| G18AH/BJ7 |
mainshaft, overdrive
required quantities: 1
|
| G18AH/BJ8 |
mainshaft, overdrive OE: 22B171
Type: BJ8 required quantities: 1
|
| G21aAH |
outer ring, first gear
Type: BN2, BN4, BN6, BN7, BT7, BJ7, BJ8 required quantities: 1
|
| G22AH |
synchro ring, 2nd OE: AEC3482
Type: BN2, BN4, BN6 required quantities: 1
|
| G23AH |
bearing, needle roller
Type: BN2, BN4, BN6, BN7, BT7, BJ7, BJ8 required quantities: 65
|
| G24AH |
thrustwasher, 2nd gear
Type: BN2, BN4, BN6, BN7, BT7, BJ7, BJ8 required quantities: 1
|
| G25AH |
plate, locking
Type: BN2, BN4, BN6, BN7, BT7, BJ7, BJ8 required quantities: A/R
|
| G26AH/BN2 |
sliding hub assembly, 3rd & 4th
Type: BN2-BJ8 required quantities: 1
|
| G26AH/BJ8 |
sliding hub assembly, 3rd & 4th
Type: BJ8 required quantities: 1
|
| G27AH |
spring, plunger
Type: BN2, BN4, BN6, BN7, BT7, BJ7, BJ8 required quantities: 2
|
| G27MGA-19 |
bearing
Type: BN2, BN4, BN6, BN7, BT7, BJ7, BJ8 ohne, w/o OD required quantities: 1
|
| G29AH |
synchro ring 3rd & 4th OE: AEC3481
Type: BN2, BN4, BN6, BN7, BT7, BJ7 required quantities: 2
|
| D29MGA-26 |
washer, locking
Type: BN2, BN4, BN6, BN7, BT7, BJ7, BJ8 ohne, w/o OD required quantities: 1
|
| D30MGA-26 |
nut, flange
Type: BN2, BN4, BN6, BN7, BT7, BJ7, BJ8 ohne, w/o OD required quantities: 1
|
| G34AH |
spring, ball
Type: BN2, BN4, BN6, BN7, BT7, BJ7, BJ8 required quantities: 6
|
| G35AH/BN2 |
laygear, rebuild (1st motion/reverse gear for exchange)
Type: BN2, BN4, BN6 required quantities: 1
|
| G35AH/BT7 |
laygear
Type: seitengeschaltet / sideshift BN7,BT7>29D-H14910-1823 non O/D + 29D-H14566-12319 o/d required quantities: 1
|
| G35aAH/BT7 |
laygear
Type: seitengeschaltet / sideshift BN7,BT7>29D-H11342-29DH14909 non o/d + 29D-H10897-29D-H14565 o/d required quantities: 1
|
| G35AH/BN7 |
laygear
Type: seitengeschaltet / sideshift BN7,BT7<29D-H11341 non o/d + BT7<29D-H10886 o/d required quantities: 1
|
| G35AH/BJ7 |
laygear
Type: seitengeschaltet / sideshift BN7,BT7>1824 non o/d + >12320 o/d, BN7+BT7 all center shift, BJ7 required quantities: 1
|
| G35AH/BJ8 |
laygear
Type: BJ8 required quantities: 1
|
| G39AH |
thrustwasher, front
Type: BN2, BN4, BN6, BN7, BT7, BJ7, BJ8 required quantities: 1
|
| G42AH |
thrustwasher, rear, .080“
Type: BN7, BT7, BJ7 required quantities: A/R
|
| G43AH |
thrustwasher, rear .080“
Type: BJ8 required quantities: A/R
|
| G44AH |
thrustwasher, rear .078“
Type: BJ8 required quantities: A/R
|
| G45AH |
thrustwasher, rear .081“
Type: BJ8 required quantities: A/R
|
| G46AH |
thrustwasher, rear .085“
Type: BN2, BN4, BN6, BN7, BT7 required quantities: 1
|
| G48AH |
plate, gear unit thrust, front
Type: BN2, BN4, BN6, BN7, BT7, BJ7 required quantities: 1
|
| G48AH/BJ8 |
plate, gear unit thrust, front
Type: BJ8 required quantities: 1
|
| G49AH/BJ8 |
plunger
Type: BJ8 required quantities: 2
|
| G50AH |
bearing, needle, laygear
Type: BN2, BN4, BN6, BN7, BT7, BJ7 required quantities: 46
|
| D54AH |
flange, coupling
Type: BN2, BN4, BN6, BN7, BT7, BJ7, BJ8 ohne, w/o OD required quantities: 1
|
| G61MGA-19 |
ball
Type: BN2, BN4, BN6, BN7, BT7, BJ7, BJ8 required quantities: 3
|
| G215AH |
shim, bearing 0.002“
Type: BN2, BN4, BN6, BN7, BT7, BJ7, BJ8 required quantities: A/R
|
| G216AH |
shim, bearing 0.005“
Type: BN2, BN4, BN6, BN7, BT7, BJ7, BJ8 required quantities: A/R
|
| G220AH |
bearing, laygear/caged, 1st motion shaft
Type: BJ8 required quantities: 4/1
|
| G226AH |
shim, bearing
Type: BJ8 required quantities: A/R
|
| G29AH/BJ8 |
synchro ring, 3rd & 4th
Type: BJ8 required quantities: 2
|
| G306AH |
synchro ring, 2nd (steel)
Type: BJ8 required quantities: 1
|
| G20AH/BJ8 |
layshaft
Type: BJ8 required quantities: 1
|
| G20AH/BN2 |
layshaft
Type: BN2, BN4, BN6, BN7, BT7, BJ7 required quantities: 1
|
| G327AH/BN2 |
plate, gear unit thrust, rear
Type: BN2, BN4, BN6, BN7, BT7, BJ7 required quantities: 1
|
| G327AH/BJ8 |
plate, gear unit thrust, rear
Type: BJ8 required quantities: 1
|
|
