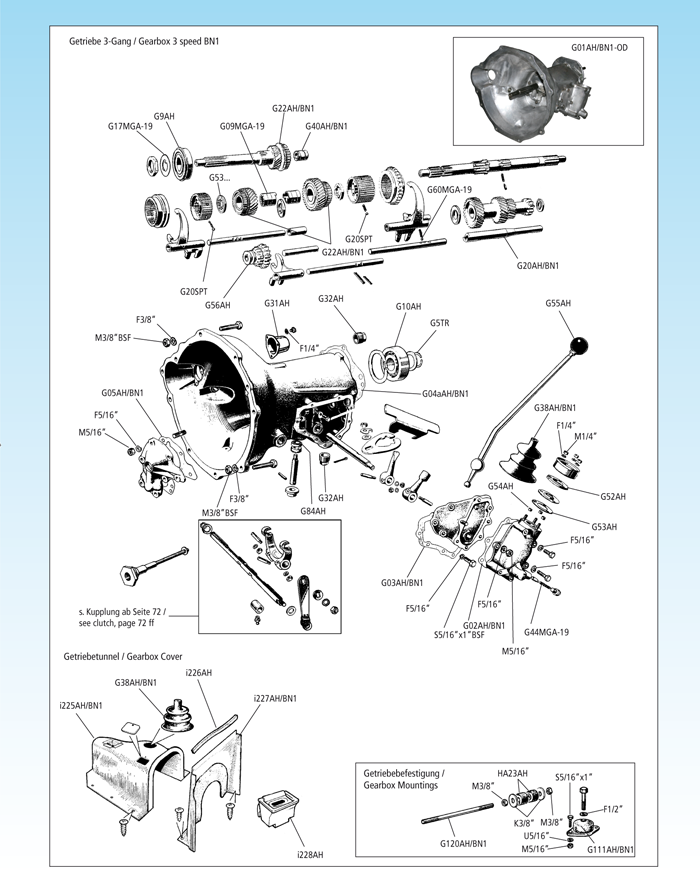

Gearbox 3 speed BN1  |
 |
| G01AH/BN1-OD |
gearbox ass. 3 speed, sideshift for overdrive use, exchange
Type: BN1 required quantities: 1
|
| G02AH/BN1 |
gasket, body side to cover
Type: BN1 required quantities: 1
|
| G03AH/BN1 |
gasket, side cover
Type: BN1 required quantities: 1
|
| G3AH/BN1 |
gasket set
Type: BN1 required quantities: 1
|
| G04aAH/BN1 |
gasket, casing to o/d adaptor plate
Type: BN1 required quantities: 1
|
| G05AH/BN1 |
gasket, front cover
Type: BN1 required quantities: 1
|
| G5TR |
circlip
Type: BN1 required quantities: 1
|
| G9AH |
bearing
Type: BN1 required quantities: 1
|
| G09MGA-19 |
bush, 3rd speed mainshaft gear
Type: BN1 required quantities: 1
|
| G10AH |
bearing, main shaft
Type: BN1 required quantities: 1
|
| G12AH |
synchronizer, 2nd speed
Type: BN1 required quantities: 1
|
| G12bAH |
synchronizer 3rd & 4th
Type: BN1 required quantities: 1
|
| G17MGA-19 |
lockwasher
Type: BN1 required quantities: 1
|
| G20AH/BN1 |
layshaft
Type: BN1 required quantities: 1
|
| G20SPT |
ball 1/4“
Type: BN1 required quantities: 9
|
| G22AH/BN1 |
synchro cone
Type: BN1 required quantities: 3
|
| G31AH |
cover, starter pinion
Type: BN1 required quantities: 1
|
| G32AH |
plug, oil drain/filler
Type: BN1 required quantities: 2
|
| G38AH/BN1 |
boot, gearshift
Type: BN1 required quantities: 1
|
| G40AH/BN1 |
bush, 1. motion shaft
Type: BN1 required quantities: 1
|
| G44MGA-19 |
spring
Type: BN1 required quantities: 1
|
| G52AH |
pad, shift lever packing (thick)
Type: BN1 required quantities: 1
|
| G53AH |
washer, sealing, rubber (thin)
Type: BN1 required quantities: 1
|
| G53MGA-19 |
thrust washer „3.962-3.988“
Type: BN1 required quantities: 1
|
| G53aMGA-19 |
thrust washer „4.013-4.039“
Type: BN1 required quantities: 1
|
| G53bMGA-19 |
thrust washer „4.060-4.085“
Type: BN1 required quantities: 1
|
| G54AH |
distance piece
Type: BN1 required quantities: 3
|
| G55AH |
knob, gearshift
Type: BN1 required quantities: 1
|
| G56AH |
gear, reverse
Type: BN1 required quantities: 1
|
| G60MGA-19 |
ball 9/32“
Type: BN1 required quantities: 3
|
| G84AH |
oil seal
Type: BN1 required quantities: 1
|
| S5/16X1“BSF |
screw 5/16“x1“BSF
Type: BN1 required quantities: 3
|
| |
Gearbox Covers |
|
| G38AH/BN1 |
boot, shift lever
Type: BN1 required quantities: 1
|
| i225AH/BN1 |
gearbox cover GFK
Type: BN1 required quantities: 1
|
| i226AH |
seal set, gearbox cover
Type: BN1 required quantities: 1
|
| i227AH/BN1 |
extension panel, gearbox cover
Type: BN1 required quantities: 1
|
| i228AH |
ashtray assembly
Type: BN1 required quantities: 1
|
| |
Gearbox Mountings |
|
| HA23AH |
bush, rubber, tie rod
Type: BN1 required quantities: 4
|
| G111AH/BN1 |
mounting, gearbox, unf
Type: BN1 required quantities: 2
|
| G120AH/BN1 |
tie rod, engine
Type: BN1 required quantities: 1
|
