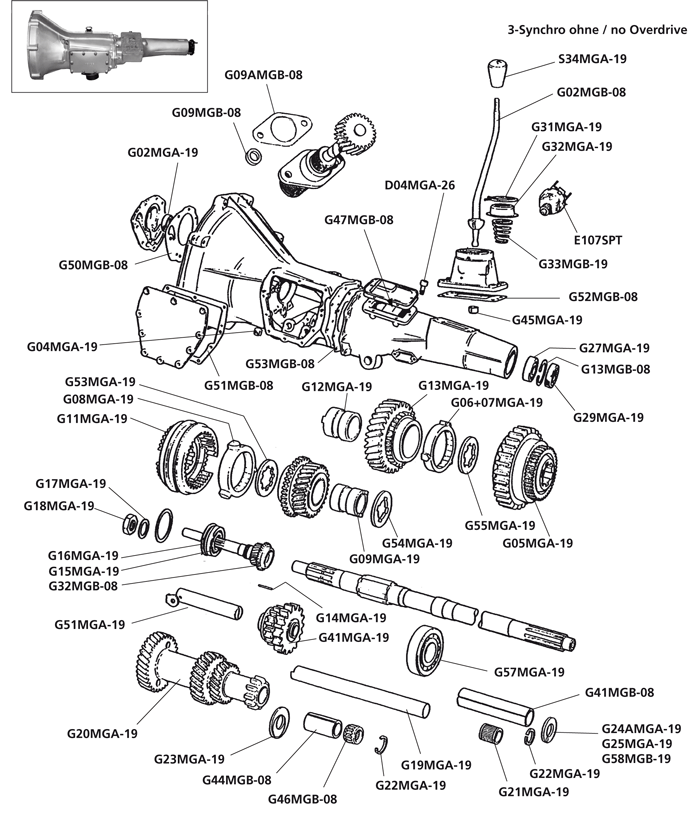

Gearbox 3-Synchro no overdrive |
 |
| G01MGB |
Gearbox no overdrive, exchange 3-synchro
required quantities: 1
|
| G02MGA-19 |
Front oil seal gearbox
required quantities: 1
|
| G02MGB-08 |
Change speed lever 3-synchro w/o overdrive
required quantities: 1
|
| G04MGA-19 |
Plug gearbox filler/drain
required quantities: 1
|
| D04MGA-26 |
Breather axle +gearbox
required quantities: 1
|
| G05MGA-19/a |
Gear 1st speed 3-Syncro outer part
required quantities: 1
|
| G06MGA-19 |
Baulk ring 2nd gear brass
required quantities: 1
|
| G07MGA-19 |
Baulk ring 2nd gear steel
required quantities: 1
|
| G08MGA-19 |
Baulk ring 3rd + 4th gear brass
required quantities: 2
|
| G08MGB-08 |
Speedo pinion 3-synchro
required quantities: 1
|
| G09MGB-08 |
Seal pinion
required quantities: 1
|
| G09AMGB-08 |
Gasket speedo pinion
required quantities: 1
|
| G09MGA-19 |
Bush 3rd speed gear
required quantities: 1
|
| G09MGB-08 |
Seal pinion
required quantities: 1
|
| G11MGA-19 |
Synchronizer 3rd +4th (3-synchro)
required quantities: 1
|
| G12MGA-19 |
Bush 2nd gear
required quantities: 1
|
| G13MGA-19 |
Gear 2nd speed
required quantities: 1
|
| G13MGB-08 |
locking ring
required quantities: 1
|
| G13SPT |
Bearing gearbox extension 3-synchro
required quantities: 1
|
| G14MGA-19 |
Needle roller
required quantities: 18
|
| G15MGA-19 |
Bearing gearbox input shaft 3-synchro
required quantities: 1
|
| G16MGA-19 |
Spring washer
required quantities: 1
|
| G17MGA-19 |
Lock washer
required quantities: 1
|
| G18MGA-19 |
Nut - 1st motion shaft
required quantities: 1
|
| G19MGA-19 |
Layshaft up to 18GB. 74719 (16.5 mm)
required quantities: 1
|
| G20MGA-19 |
Laygear up to 18GB 74719 (16.4 mm)
required quantities: 1
|
| G21MGA-19 |
Needle bearing countershaft (16.5mm)
required quantities: 1
|
| G22MGA-19 |
Circlip countershaft
required quantities: 1
|
| G23MGA-19 |
Thrust washer layshaft front MGA/MGB 3-synchro
required quantities: 1
|
| G24AMGA-19 |
Thrust washer layshaft rear up to 18GB (62-64) - (0,157-8")
required quantities: 1
|
| G29AMGB-08 |
Shim adjusting .004“
required quantities: A/R
|
| G29MGA-19 |
Oil seal gearbox 3-synchro rear
required quantities: 1
|
| G29MGB-08 |
Shim adjusting .002“
required quantities: A/R
|
| G31MGA-19 |
Circlip gear lever
required quantities: 1
|
| G32AMGB-08 |
Gearbox constant pinion shaft up to 18GB. (62-64)
required quantities: 1
|
| G32MGA-19 |
Spring cover gear lever
required quantities: 1
|
| G32MGB-08 |
Gearbox constant pinion shaft from 18GB. (65-67)
required quantities: 1
|
| G33MGA-19 |
Spring change speed lever
required quantities: 1
|
| S34MGA-19 |
Original gear lever knob
required quantities: 1
|
| G38AMGB-08 |
Laygear MGB from 18GB 74720 (17mm)
required quantities: 1
|
| G40AMGB-19 |
Thrust washer gearbox bearing front from 18GB (65-67)
required quantities: 1
|
| G41MGA-19 |
Reverse gear
required quantities: 1
|
| G41MGB-08 |
Spacing tube countershaft up to 18GB74719
required quantities: 1
|
| G44MGB-08 |
Spacing tube countershaft from 18GB.74720
required quantities: 1
|
| G45MGA-19 |
Bush gear lever
required quantities: 1
|
| G46MGB-08 |
Bearing layshaft (17 mm) from 18GB (65-67)
required quantities: 1
|
| G47MGB-08 |
Gasket top cover
required quantities: 1
|
| G49MGB-08 |
Mainshaft gearbox 3-Speed
required quantities: 1
|
| G50MGB-08 |
Gasket gearbox cover front
required quantities: 1
|
| G51MGB-08 |
Gasket gearbox cover side
required quantities: 1
|
| G51MGA-19 |
Shaft reverse gear
required quantities: 1
|
| G52MGB-08 |
Gasket remote
required quantities: 1
|
| G53MGA-19 |
Shim adjusting 0.157“
required quantities: A/R
|
| G53AMGA-19 |
Shim adjusting 0.159“
required quantities: A/R
|
| G53BMGA-19 |
Shim adjusting 0.161“
required quantities: A/R
|
| G53MGB-08 |
Gasket
required quantities: 1
|
| G54MGA-19 |
Thrust washer
required quantities: 1
|
| G55MGA-19 |
Thrust washer rear
required quantities: 1
|
| G57MGA-19 |
Roller bearing mainshaft 3-synchro
required quantities: 2
|
| G58MGB-1" |
Thrust washer layshaft rear from 18GB (65-67) - (0,160-1")
required quantities: 1
|
| G58MGB-4" |
Thrust washer layshaft rear from 18GB (65-67) - (0,163-4")
required quantities: 1
|
| G58MGB-6" |
Thrust washer layshaft rear from 18GB (65-67) - (0,154-6")
required quantities: 1
|
| G58MGB-9" |
Thrust washer layshaft rear from 18GB (65-67) - (0,157-9")
required quantities: 1
|
| E107SPT |
Switch on gearbox cover
required quantities: 1
|
| GE |
Hypoid Gearbox/Differential oil SAE80W90, per liter
required quantities: A/R
|
