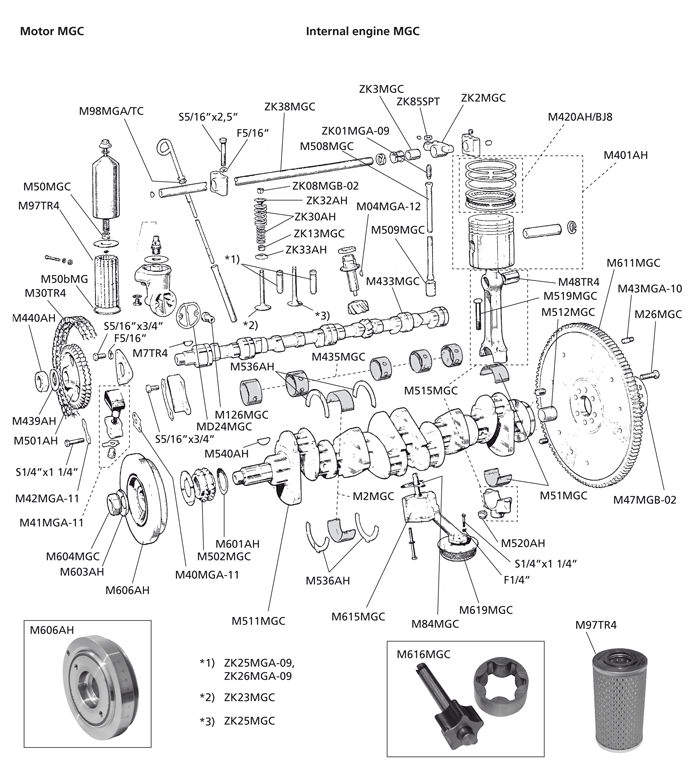

Engine MGC |
 |
| M2MGC/STD |
Main bearing set STD
required quantities: 1
|
| M2MGC/10 |
Main bearing set +0.010”
required quantities: 1
|
| M2MGC/20 |
Main bearing set +0.020”
required quantities: 1
|
| M2MGC/30 |
Main bearing set +0.030”
required quantities: 1
|
| M2MGC/40 |
Main bearing set +0.040”
required quantities: 1
|
| M04MGA-12 |
Camshaft woodruff key
required quantities: 1
|
| MD24MGC |
Gasket oilfilter housing
required quantities: 1
|
| M26MGC |
Bolt flywheel to crankshaft
required quantities: 6
|
| M30TR4 |
Timing chain
required quantities: 1
|
| M40MGA-11 |
Gasket tensioner
required quantities: 1
|
| M41MGA-11 |
Tensioner
required quantities: 1
|
| M42MGA-11 |
Locktabe tensioner
required quantities: 1
|
| M43MGA-10 |
Dowel
required quantities: 3
|
| M47MGB-02 |
Flywheel lock plate
required quantities: 1
|
| M48TR4 |
Bush, connecting rod
required quantities: 6
|
| M50BMG |
Sealing ring
required quantities: 1
|
| M50MGC |
Felt washer
required quantities: 1
|
| M51MGC/STD |
Rod bearing set STD
required quantities: 1
|
| M51MGC/10 |
Rod bearing set 0.010”
required quantities: 1
|
| M51MGC/20 |
Rod bearing set 0.020”
required quantities: 1
|
| M51MGC/30 |
Rod bearing set 0.030”
required quantities: 1
|
| M51MGC/40 |
Rod bearing set 0.040”
required quantities: 1
|
| M84MGC |
Gasket oil pump
required quantities: 1
|
| M97TR4 |
Oil filter
required quantities: 1
|
| M98MGA/TC |
Dust cap
required quantities: 1
|
| M126MGC |
Oil pressure relief valve
required quantities: 1
|
| M401AH/STD |
Piston set STD
required quantities: 1
|
| M401AH/20 |
Piston set 020”
required quantities: 1
|
| M401AH/30 |
Piston set 030”
required quantities: 1
|
| M401AH/40 |
Piston set 040”
required quantities: 1
|
| M401AH/60 |
Piston set 060”
required quantities: 1
|
| M420AH/BJ8STD |
Piston ring set STD for 6 pistons (5 ring)
required quantities: 1
|
| M420AH/BJ8.20 |
Piston ring set 020” for 6 pistons (5 ring)
required quantities: 1
|
| M420AH/BJ8.30 |
Piston ring set 030” for 6 pistons (5 ring)
required quantities: 1
|
| M420AH/BJ8.40 |
Piston ring set 040” for 6 pistons (5 ring)
required quantities: 1
|
| M420AH/BJ8.60 |
Piston ring set 060” for 6 pistons (5 ring)
required quantities: 1
|
| M433MGC |
Camshaft
required quantities: 1
|
| M435MGC |
Cam bearing set
required quantities: 1
|
| M439AH |
Lock washer
required quantities: 1
|
| M440AH |
Nut
required quantities: 1
|
| M501MGC |
Camshaft gear
required quantities: 1
|
| M502MGC |
Crankshaft gear
required quantities: 1
|
| M508MGC |
Pushroad
required quantities: 12
|
| M509MGC |
Tappet
required quantities: 12
|
| M511MGC |
Crankshaft reconditioned (manual gearbox)
required quantities: 1
|
| M511MGC/AUT |
Crankshaft reconditioned (automatic gearbox)
required quantities: 1
|
| M512MGC |
Spigot bush manual gearbox
required quantities: 1
|
| M512MGC/AUT |
Spigot bush automatic gearbox
required quantities: 1
|
| M515MGC |
Connecting rod, reconditioned
required quantities: 6
|
| M519MGC |
Bolt, con rod cap.
required quantities: 12
|
| M520AH |
Nut
required quantities: 12
|
| M536AH/005 |
Trustwasher set 0.005”
required quantities: 1
|
| M536AH/010 |
Trustwasher set 0.010”
required quantities: 1
|
| M536AH/025 |
Trustwasher set 0.025”
required quantities: 1
|
| M536AH/STD |
Trustwasher set STD
required quantities: 1
|
| M540AH |
Key
required quantities: 2
|
| M601AH |
use M5aTR6 or M5TR6 Packing washer
required quantities: A/R
|
| M5aTR6 |
packing washer
Type: BN1-BN2 required quantities: A/R
|
| M5TR6 |
packing washer
Type: BN1-BN2 required quantities: A/R
|
| M603AH |
Lock washer
required quantities: 1
|
| M604MGC |
Nut
required quantities: 1
|
| M606AH |
Pulley and damper crankshaft 3/8”
required quantities: 1
|
| M611MGC |
Starter ring gear
required quantities: 1
|
| M615MGC |
Oil pump
required quantities: 1
|
| M616MGC |
Oil pump repair kit motor set
required quantities: 1
|
| M619MGC |
Oil strainer
required quantities: 1
|
| ZK01MGA-09 |
Adjuster, rocker arm
required quantities: 12
|
| ZK2MGC |
Rocker kit
required quantities: 12
|
| ZK3MGC |
Bush rocker arm
required quantities: 12
|
| ZK08MGB-02 |
Cotter valve retaining
required quantities: 24
|
| ZK13MGC |
Valve stam gasket
required quantities: 12
|
| ZK23MGC |
Valve, inlet
required quantities: 6
|
| ZK25MGA-09 |
Valve guide
required quantities: 12
|
| ZK25MGC |
Valve, exhaust
required quantities: 6
|
| ZK26MGA-09 |
Valve guide, bronze
required quantities: 12
|
| ZK30AH |
Valve spring set (24 spring)
required quantities: 1
|
| ZK32AH |
Cap valve spring
required quantities: 12
|
| ZK33AH |
Washer valve spring
required quantities: 12
|
| ZK38MGC |
Rocker shaft
required quantities: 1
|
| ZK85SPT |
Locknut rocker screw
required quantities: 12
|
