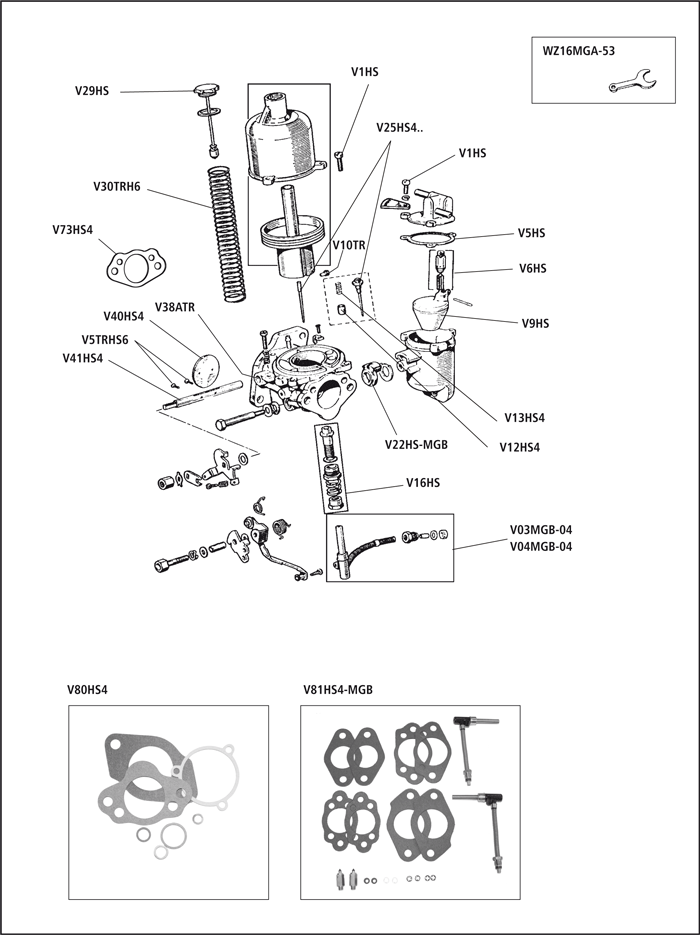

Carburettor SUHS4 (1962-1973) |
 |
| V01MGBHS4 |
Carburettor kit exchange HS4 MGB *)
required quantities: 1
|
| V1HS |
Screw
required quantities: 6
|
| V03MGB-04 |
Jet HS4 MGB from 72 front (green)
required quantities: 1
|
| V04MGB-04 |
Jet HS4 MGB from 72 rear (pink)
required quantities: 1
|
| V5TRHS6 |
Screw disc retaining, throttle
required quantities: 4
|
| V5HS6 |
Screw disc retaining, throttle
|
| V5HS |
gasket, float chamber lid
required quantities: 2
|
| V6HS |
Needle valve and seat kit
required quantities: 2
|
| V9HS |
Carburettor float
required quantities: 2
|
| V10TR |
Screw needle locking
required quantities: 2
|
| V12HS4 |
Guide carburettor needle
required quantities: 2
|
| V13HS4 |
Carburettor needle spring
required quantities: 2
|
| V16HS |
Bearing kit jet
required quantities: 2
|
| V22HS-MGB |
Rubber grommet carburettor HS4 rear
required quantities: 1
|
| V22AHS-MGB |
Rubber grommet front
required quantities: 1
|
| V25HS4 |
Carburettor needle - please refer type/dimension
required quantities: 2
|
| V29HS |
Carburettor damper
required quantities: 2
|
| V30TRH6 |
Carburettor piston spring red
required quantities: 2
|
| V38ATR |
Bush carburettor spindle .313“
required quantities: 4
|
| V40HS4 |
Disc, throttle
required quantities: 2
|
| V41HS4 |
Throttle spindle
required quantities: 2
|
| V73HS4 |
Gasket air filter
required quantities: 2
|
| V78SPT |
Fuel hose Ø8 mm, per meter
required quantities: A/R
|
| V79SPT |
T-piece for fuel hose/8 mm
required quantities: A/R
|
| V80HS4 |
Carburettor gasket pack HS4
required quantities: 2
|
| V81HS-MGB |
Carburettor service-kit HS4 (for 2 carburettor) **)
required quantities: 2
|
| WZ16MGA-53 |
Adjusting tool mirror
required quantities: A/R
|
| WZ75 |
Carburettor synchronizer
required quantities: A/R
|
| SU-VÖ |
Oil, SU carb. 150 ml
required quantities: A/R
|
| |

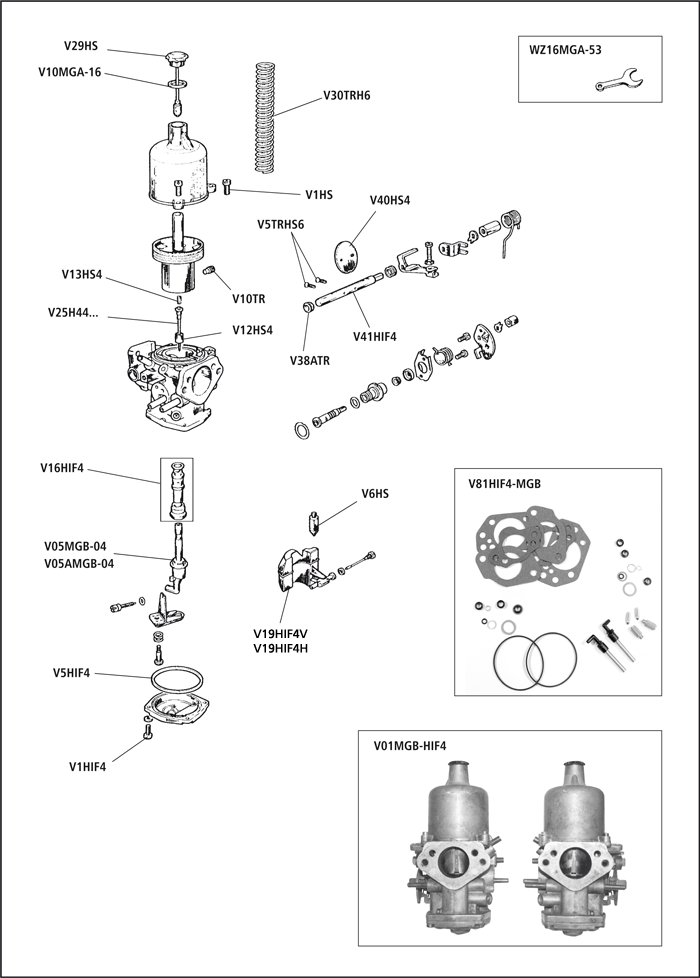

Carburettor SU HIF4 (ab 1974) |
 |
| V01MGB-HIF4 |
Carburettor kit exchange HIF4 *)
required quantities: 1
|
| V1HS |
Screw
required quantities: 6
|
| V1HIF4 |
Screw to float chamber
required quantities: 8
|
| V5HIF4 |
Gasket float chamber
required quantities: 2
|
| V5HS6 |
Screw disc retaining, throttle
required quantities: 4
|
| V05MGB-04 |
Jet HIF4 front
required quantities: 1
|
| V05AMGB-04 |
Jet HIF4 rear
required quantities: 1
|
| V6HS |
Needle valve and seat kit
required quantities: 2
|
| V10TR |
Screw needle locking
required quantities: 2
|
| V10MGA-16 |
Washer (fibre)
required quantities: 2
|
| V12HS4 |
Guide carburettor needle
required quantities: 2
|
| V13HS4 |
Carburettor needle spring
required quantities: 2
|
| V16HIF4 |
Jet bearing kit
required quantities: 2
|
| V19HIF4V |
Carburettor float HIF4 front
required quantities: 1
|
| V19HIF4H |
Carburettor float HIF4 rear
required quantities: 1
|
| V25HS4 |
Carburettor needle - please refer type/dimension
required quantities: 2
|
| V29HS |
Carburettor damper
required quantities: 2
|
| V38ATR |
Bush carburettor spindle .313“
required quantities: 4
|
| V30TRH6 |
Carburettor piston spring red
required quantities: 2
|
| V40HS4 |
Disc, throttle
required quantities: 2
|
| V41HIF4 |
Throttle spindle HIF4
required quantities: 2
|
| V80HIF4 |
Carburettor gasket pack
required quantities: 2
|
| V81HIF4-MGB |
Carburettor service kit HIF4 (for 2 carburettors)
required quantities: 2
|
| WZ16MGA-53 |
Adjusting tool mirror
required quantities: A/R
|
| WZ75 |
Carburettor synchronizer
required quantities: A/R
|
| SU-VÖ |
Oil, SU carb. 150 ml
required quantities: A/R
|
