Chlazení Midget/Sprite 1275cc


Obj. číslo Popis Ilustrace
klikněte pro zvětšení

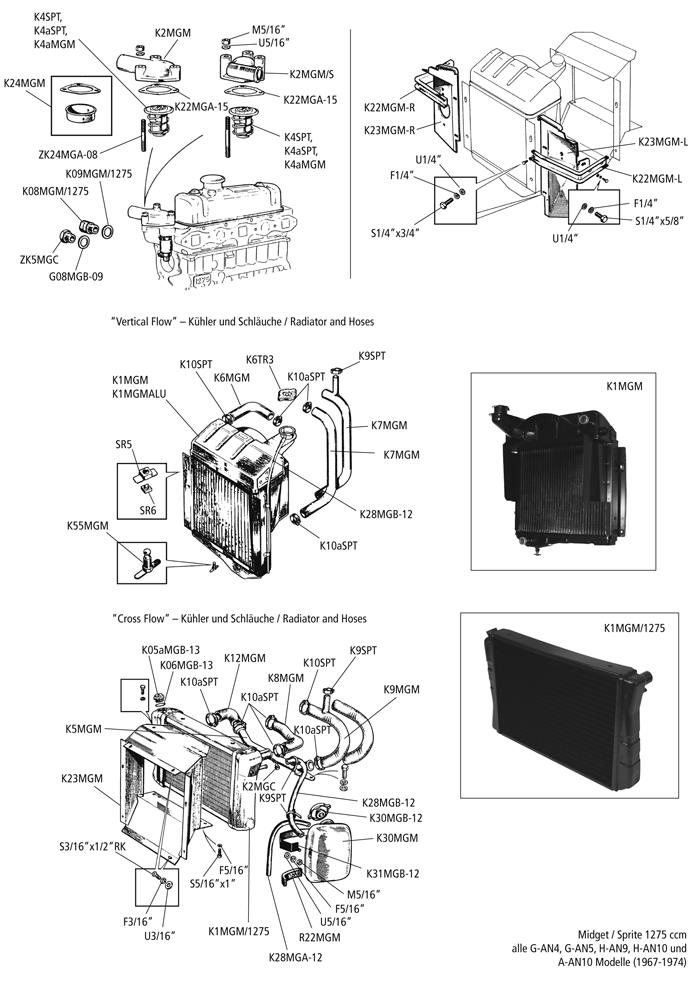

Midget/Sprite 1275cc all G-AN4, G-AN5, H-AN9, H-AN10 and A-AN10 models (1967-1974) Thermostat
K2MGM Elbow, water outlet to G-AN4-66225 und H-AN9-77590
required quantities: 1
K2MGM/S Elbow, water outlet all later G-AN4, H-AN9, G-AN5, H-AN10, A-AN10
required quantities: 1
K4SPT Thermostat 74°
required quantities: 1
K4aSPT Thermostat 82°
required quantities: 1
K4aMGM Thermostat 88°
required quantities: 1
ZK5MGC Plug to G-AN4-66225 and H-AN9-77590
required quantities: 1
G08MGB-09 Washer sealing to G-AN4-66225 and H-AN9-77590
required quantities: 1
K08MGM/1275 Adaptor temperature transmitter from G-AN4-66226 and H-AN9-77591, G-AN5, H-AN10, A-AN10
required quantities: 1
K09MGM/1275 Washer, sealing from G-AN4-66226 and H-AN9-77591, G-AN5, H-AN10, A-AN10
required quantities: 1
K22MGA-15 Gasket, water outlet elbow
required quantities: 1
ZK24MGA-08 Stud, elbow to head to G-AN4-66225 and H-AN9-77590
required quantities: 3
K24MGM Blanking sleeve kit, thermostat (competition use only)
required quantities: 1
K24aMGM Blanking kit, bypass hose (competition use only)
required quantities: 1

Radiator Mountings (All Models)

K22MGM/L Bracket, LH
required quantities: 1
K22MGM/R Bracket, RH
required quantities: 1
K23MGM/L Splash shield, LH
required quantities: 1
K23MGM/R Splash shield, RH
required quantities: 1

“Vertical Flow” Radiator & Hoses up to G-AN4-66225 and H-AN9-77590

K1MGM Radiator
required quantities: 1
K1MGM-ALU Radiator Alu
required quantities: 1
SR5 Cage, for nut 1/4”
required quantities: 4
SR6 Nut, caged 1/4”
required quantities: 4
K6MGM Radiator hose, top
required quantities: 1
K6TR3 Cap, filler
required quantities: 1
K7MGM Radiator hose, bottom
required quantities: 1
K9SPT Clip 12-22 mm
required quantities: 1
K10aSPT Clip 40-60 mm
required quantities: 4/3
K10SPT Clip 30-45 mm
required quantities: 1
K28MGB-12 Hose, overflow
required quantities: 1
K55MGM Tap, drain
required quantities: 1

“Cross Flow” Radiator & Hoses up tob G-AN4-66226 and H-AN9-77591, G-AN5, H-AN10 and A-AN10

K1MGM/1275 Radiator
required quantities: 1
K2MGC Plug, drain
required quantities: 1
K05AMGB-13 Plug, brass
required quantities: 1
K5MGM Tube, lower
required quantities: 1
K06MGB-13 O-Ring
required quantities: 1
K8MGM Radiator hose, top
required quantities: 1
K9MGM Radiator hose
required quantities: 1
K9SPT Clip 12-22 mm
required quantities: 1
K10SPT Clip 30-45 mm
required quantities: 1
K10aSPT Clip 40-60 mm
required quantities: 5
K12MGM Radiator hose
required quantities: 1
R22MGM Pad, rubber
required quantities: 1
K23MGM Cowl, radiator
required quantities: 1
K28MGB-12 Hose
required quantities: 1
K30MGB-12 Cap, filler
required quantities: 1
K30MGM Tank, expansion
required quantities: 1
K31MGB-12 Bracket
required quantities: 1

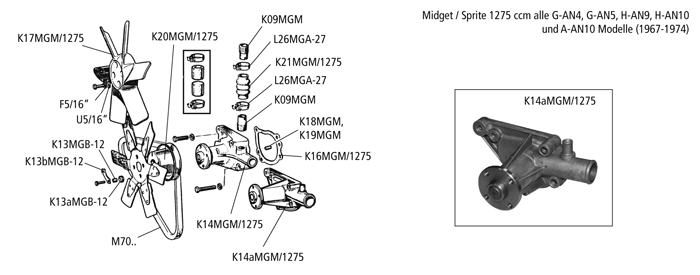

Water Pump & Fan
K09MGM Adaptor, by pass hose (for Water pump, cast iron body)
required quantities: 2/1
K13aMGB-12 Grommet all 12CC, to 12CE/Da/H898
required quantities: 4
K13bMGB-12 Lock tab all 12CC, to 12CE/Da/H898
required quantities: 2
K13MGB-12 Distance piece all 12CC, to 12CE/Da/H898
required quantities: 4
K14aMGM/1275 Water pump, alloy body all later 12CE & 12V
required quantities: 1
K14MGM/1275 Water pump, cast iron body 12CC, to 12CE/Da/H873
required quantities: 1
K16MGM/1275 Gasket, water pump
required quantities: 1
K17MGM/1275 Cooling fan, plastic
required quantities: 1
K18MGM Dowel, pump locating for cast iron water pump
required quantities: 2
K19MGM Dowel, pump locating for alloy water pump
required quantities: 2
K20MGM/1275 Pulley (water pump + cooling fan)
required quantities: 1
K21MGM/1275 By-Pass hose
required quantities: 1
L26MGA-27 Clamp, bypass hose
required quantities: 2
M70aMGM/1275 Fan belt 12V/588F/101 to 3192
required quantities: 1
M70bMGM/1275 Fan belt from 12V/588F/3193 12V/778F
required quantities: 1
M70MGM/1098 Fan belt all 12CC, 12CE, and 12V/586F
required quantities: 1
