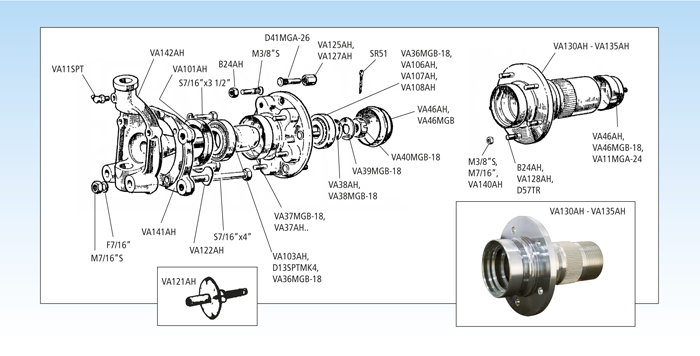

Front Suspension / Wheel hub bearing |
 |
| VA11MGA-24 |
grease cap (steel wheels)
Type: BN1-BJ8 required quantities: 2
|
| VA11SPT |
grease nipple
Type: BN1<221404-BJ8 required quantities: 2
|
| B24AH |
bolt brake disc
Type: BN7,BT7-BJ8<26704 required quantities: 10
|
| VA39MGB-18 |
bearing retaining washer
Type: BN1-BJ8 required quantities: 2
|
| VA40MGB-18 |
bearing retaining nut
Type: BN1>221404-BJ8 required quantities: 2
|
| D41MGA-26 |
wheel stud steel wheel OE: 1G7435
Type: BN4, BN6 required quantities: 10
|
| SR51 |
split pin
Type: BN1-BJ8 required quantities: 2
|
| VA101AH |
front hub seal
Type: BN1-BJ8 required quantities: 2
|
| VA122AH |
locktab
Type: BN2,BN4,BN6,BN7,BT7,BJ7,BJ8<26704 required quantities: 2
|
| VA125AH |
wheel stud steel wheel
Type: BN7, BT7, BJ7, BJ8 required quantities: 10
|
| VA127AH |
wheel nut steel wheel
Type: BN4-BJ8 required quantities: 10
|
| VA140AH/BN1 |
nut stud brake drum
Type: BN1<228046 required quantities: 8
|
| M7/16" |
nut stud brake drum
Type: BN1>228047 required quantities: 8
|
| VA141AH |
plate adaptor
Type: BN7, BT7, BJ7, BJ8 required quantities: 1
|
| VA142AH |
axle assembly, swivel
Type: BN2>231203,BN4,BN6,BN7,BJ7<21766 required quantities: 2
|
| |
Wheel hub bearing BN1 |
|
| VA103AH |
inner hub bearing
Type: BN1 required quantities: 2
|
| VA108AH |
outer hub bearing
Type: BN1 required quantities: 2
|
| VA37AH/BN1 |
distance piece, bearing front
Type: BN1 required quantities: 2
|
| |
Wheel hub bearing BN2, BN4, BN6 with wire wheels |
|
| D13SPTMK4 |
inner hub bearing
Type: BN2, BN4, BN6 required quantities: 2
|
| VA106AH |
outer hub bearing
Type: BN2, BN4, BN6 required quantities: 2
|
| VA37AH/BN7 |
distance piece, bearing front
Type: BN2, BN4, BN6 required quantities: 2
|
| |
Wheel hub bearing BN4, BN6 with steel wheels |
|
| VA103AH |
inner hub bearing
Type: BN4, BN6 required quantities: 2
|
| VA107AH |
outer hub bearing
Type: BN4, BN6 required quantities: 2
|
| VA37AH/BN7 |
distance piece, bearing front
Type: BN4, BN6 required quantities: 2
|
| |
Wheel hub bearing BN7, BT7, BJ7, BJ8<26704 |
|
| D13SPTMK4 |
inner hub bearing
Type: BN7,BT7,BJ7,BJ8<26704 required quantities: 2
|
| VA106AH |
outer hub bearing
Type: BN7,BT7,BJ7,BJ8<26704 required quantities: 2
|
| VA37AH/BN7 |
distance piece, bearing front
Type: BN7,BT7,BJ7,BJ8<26704 required quantities: 2
|
| |
Wheel hub BJ8>26705 |
|
| VA36MGB-18 |
set wheel hub bearing, inner and outer
Type: BJ8>26705 required quantities: 2
|
| VA37MGB-18 |
distance piece, bearing front
Type: BJ8>26705 required quantities: 2
|
| VA105AH |
outer hub bearing
Type: BJ8>26705 required quantities: 2
|
| |
Shims wheel hub bearing - BN1, BN2, BN4, BN6, BN7, BT7, BJ8<26704 |
|
| VA38AH/.003 |
shim 0.003“ (0,08 mm)
Type: BN1,BN2,BN4,BN6,BN7,BT7,BJ8<26704 required quantities: A/R
|
| VA38AH/.005 |
shim 0.005“ (0,13 mm)
Type: BN1,BN2,BN4,BN6,BN7,BT7,BJ8<26704 required quantities: A/R
|
| VA38AH/.010 |
shim 0.010“ (0,26 mm)
Type: BN1,BN2,BN4,BN6,BN7,BT7,BJ8<26704 required quantities: A/R
|
| VA38AH/.032 |
shim 0.032“ (0,84 mm)
Type: BN1,BN2,BN4,BN6,BN7,BT7,BJ8<26704 required quantities: A/R
|
| |
Shims wheel hub bearing - BJ8>26705 |
|
| VA38MGB/.003 |
shim 0.003“ (0,08mm)
Type: BJ8>26705 required quantities: A/R
|
| VA38MGB/.005 |
shim 0.005“ (0,13 mm)
Type: BJ8>26705 required quantities: A/R
|
| VA38MGB/.010 |
shim 0.010“ (0,26 mm)
Type: BJ8>26705 required quantities: A/R
|
| VA38MGB/.030 |
shim 0.030“ (0,76 mm)
Type: BJ8>26705 required quantities: A/R
|
| VA38MGB-18 |
shim bearing, set
Type: BJ8>26705 required quantities: 2
|
| |
Grease caps outer wheel bearing (wire wheels) |
| VA46AH |
for BN1,BN2,BN4,BN6,BN7,BJ7,BT7,BJ8<26704
required quantities: 2
|
| VA46MGB-18 |
for BJ8>26705
required quantities: 2
|
| VA46aAH |
for BN4,BN6
required quantities: 2
|
| VA11MGA-24 |
for BN7,BT7,BJ7,BJ8
required quantities: 2
|
| VA121AH |
extractor tool grease cap no. VA46AH/VA46MGB-18 for wire wheels
required quantities: 1
|
| |
Wheel hubs and wheel studs (wire wheels) - BN1<228046 |
| VA135AH/L |
front wire wheel hub LH
Type: BN1<228046 required quantities: 1
|
| VA135AH/R |
front wire wheel hub RH
Type: BN1<228046 required quantities: 1
|
| VA128AH/BN1 |
stud, hub no. VA135AH to drum
Type: BN1<228046 required quantities: 8
|
| VA140AH/BN1 |
nut to stud VA128AH/BN1
Type: BN1<228046 required quantities: 8
|
| |
Wheel hubs and wheel studs (wire wheels) - BN1>228047, BN2, BN4, BN6 |
| VA133AH/L |
front wire wheel hub LH - 12 tpi
Type: BN2, BN4, BN6 required quantities: 1
|
| VA133AH/R |
front wire wheel hub RH - 12 tpi
Type: BN2, BN4, BN6 required quantities: 1
|
| VA128AH/BN2 |
stud, hub no. VA133AH to drum
Type: BN2, BN4, BN6 required quantities: 8
|
| M7/16" |
nut 7/16“ to stud VA128AH
Type: BN2, BN4, BN6 required quantities: 8
|
| |
Wheel hubs and wheel studs (wire wheels) - BN7, BT7, BJ7, BJ8<26704 |
| VA131AH/L |
front wire wheel hub LH - 12 tpi
Type: BN7,BT7,BJ7,BJ8<26704 required quantities: 1
|
| VA131AH/R |
front wire wheel hub RH - 12 tpi
Type: BN7,BT7,BJ7,BJ8<26704 required quantities: 1
|
| M3/8"S |
nut nyloc 7/16“ to stud B24AH
Type: BN7,BT7,BJ7,BJ8<26704 required quantities: 10
|
| |
Wheel hubs and wheel studs (wire wheels) - BJ8>26705 |
| VA130AH/L |
front wire wheel hub LH - 8 tpi
Type: BJ8>26705 required quantities: 1
|
| VA130AH/R |
front wire wheel hub RH - 8 tpi
Type: BJ8>26705 required quantities: 1
|
| D57TR |
stud, hub no. VA130AH to disk OE: 107960 or 51K117
Type: BJ8>26705 required quantities: 10
|
| M3/8"s |
nut nyloc 3/8“ to stud D57TR
Type: BJ8>26705 required quantities: 10
|
