Čelní sklo BN1-BN2


Obj. číslo Popis Ilustrace
klikněte pro zvětšení

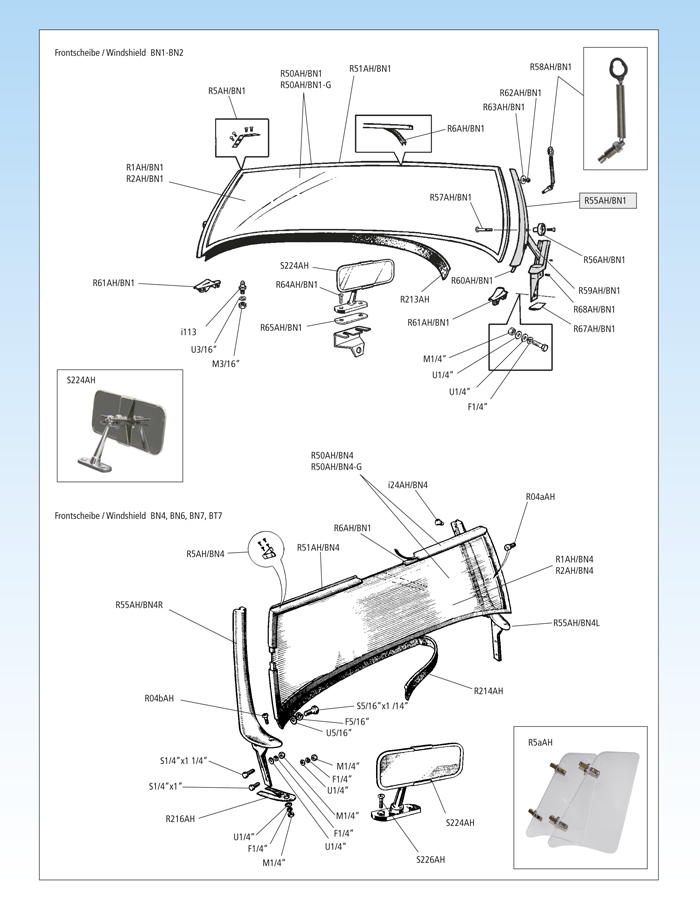

Windshield BN1-BN2		 FKG_6230110000.png
R1AH/BN1 glass, windshield, clear
Type: BN1-BN2 required quantities: 1
R2AH/BN1 glass, windshield, coloured (green)
Type: BN1-BN2 required quantities: 1
R5AH/BN1 bracket kit, windshield frame, with screws
Type: BN1-BN2 required quantities: 1
R6AH/BN1 glazing rubber
Type: BN1-BN2 required quantities: 1
R50AH/BN1 windshield assembly (frame and shield)
Type: BN1-BN2 required quantities: 1
R50AH/BN1-G windshield assemb. (frame and shield), coloured
Type: BN1-BN2 required quantities: 1
R51AH/BN1 frame, windshield
Type: BN1-BN2 required quantities: 1
R55AH/BN1 pair stanchon and foot, complete assembly
Type: BN1-BN2 required quantities: 1
R56AH/BN1 knurled knob
Type: BN1-BN2 required quantities: 2
R57AH/BN1 bolt, shouldered, with screw
Type: BN1-BN2 required quantities: 2
R58AH/BN1 security spring assembly
Type: BN1-BN2 required quantities: 2
R59AH/BN1 link
Type: BN1-BN2 required quantities: 2
R60AH/BN1 pin, screen pillow, bottom
Type: BN1-BN2 required quantities: 2
R61AH/BN1 foot, forward windshield position
Type: BN1-BN2 required quantities: 2
R62AH/BN1 knob, soft top clamp
Type: BN1-BN2 required quantities: 2
R63AH/BN1 washer
Type: BN1-BN2 required quantities: 2
R64AH/BN1 countersunk screw
Type: BN1-BN2 required quantities: 2
R65AH/BN1 tapped plate
Type: BN1-BN2 required quantities: 1
R66AH/BN1 center bracket, dash/driving mirror
Type: BN1-BN2 required quantities: 1
R67AH/BN1-1.0 packing plate 1mm
Type: BN1-BN2 required quantities: 2
R67AH/BN1-2.0 packing plate 2mm
Type: BN1-BN2 required quantities: 2
R67AH/BN1-3.0 packing plate 3mm
Type: BN1-BN2 required quantities: 2
R68AH/BN1 screw
Type: BN1-BN2 required quantities: 8
i113 fastener, Lift-the-Dot, in-dash
Type: BN1-BN2 required quantities: 2
R213AH weatherseal, bottom
Type: BN1-BN2 required quantities: 1
S224AH mirror, driving
Type: BN1-BN2 required quantities: 2
