Akcel. a sytič BN4,6,7 & BT7

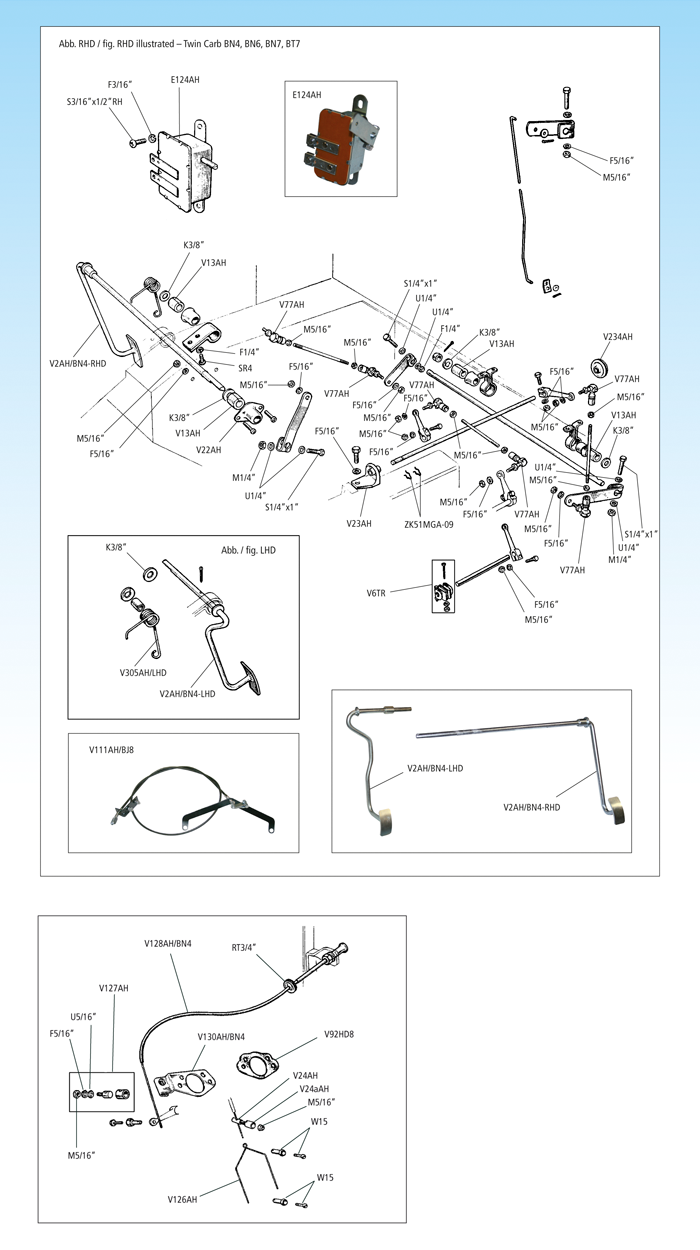

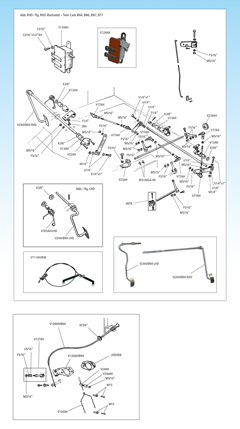

Akcelerátor a sytič Twin Carb BN4, BN6, BN7, BT7

Obj. číslo Popis Ilustrace
klikněte pro zvětšení

Accelerator Twin Carb BN4, BN6, BN7, BT7
V2AH/BN4-LHD accelerator pedal & shaft, LHD
Type: BN4,BN6,BN7, BT7 required quantities: 1
V2AH/BN4-RHD accelerator pedal & shaft, RHD
Type: BN4,BN6,BN7, BT7 required quantities: 1
SR4 screw
Type: BN7, BT7 required quantities: 2
V6TR coupling assembly
Type: BN4<48862 required quantities: 1
V13AH bush, felt
Type: BN4,BN6,BN7, BT7 required quantities: A/R
V22AH cup, for bush
Type: BN4,BN6,BN7, BT7 required quantities: 1
V23AH bracket, relay shaft, nylon
Type: BN4>48863,BN6,BN7,BT7 required quantities: 1
ZK51MGA-09 circlip, for relay shaft
Type: BN6,BN7, BT7 required quantities: 2
V62MGA-16 bolt
Type: BN4<48862 required quantities: 1
V77MGA-16 nut
Type: BN4<48862 required quantities: 1
V77AH ball joint, for rod
Type: BN4,BN6,BN7, BT7 required quantities: 6
E124AH throttle switch
Type: BN4,BN6,BN7, BT7 required quantities: 1
V234AH bearing, relay shaft, in bulkhead
Type: BN4,BN6,BN7, BT7 required quantities: 1
V305AH/LHD spring, pedal return
Type: BN4,BN6,BN7, BT7 required quantities: 1
K3/8" washer
Type: BN4,BN6,BN7, BT7 required quantities: A/R

Choke Cable Twin Carb BN4, BN6, BN7, BT7

W15 trunnion & screw
Type: BN4<48862 required quantities: 2
V24AH pin, abutment, for outer cable
Type: BN4<48862 required quantities: 1
V24aAH distance piece, for pin
Type: BN4<48862 required quantities: 1
V92HD8 gasket carb/air cleaner
Type: BN6,BN7,BT7<2193,BN7>5234,BT7>5310 required quantities: 1
V111AH/BJ8 throttle cable conversion
Type: BN4,BN6,BN7, BT7 required quantities: 1
V126AH stirrup, for connecting jet levers
Type: BN4<48862 required quantities: 1
V127AH trunnion assembly
Type: BN4>48863, BN6,BN7,BT7<2193 required quantities: 1
V128AH/BN4 choke cable
Type: BN4,BN6,BN7, BT7 required quantities: 1
V130AH/BN4 bracket, choke cable
Type: BN4<48862,BN6,BN7,BT7<2193,BN7>5234,BT7>5310 required quantities: 1
RT3/4" grommet, choke cable
Type: BN6, BN7&BT7<2193, BN7>5234, BT7>5310 required quantities: 1
