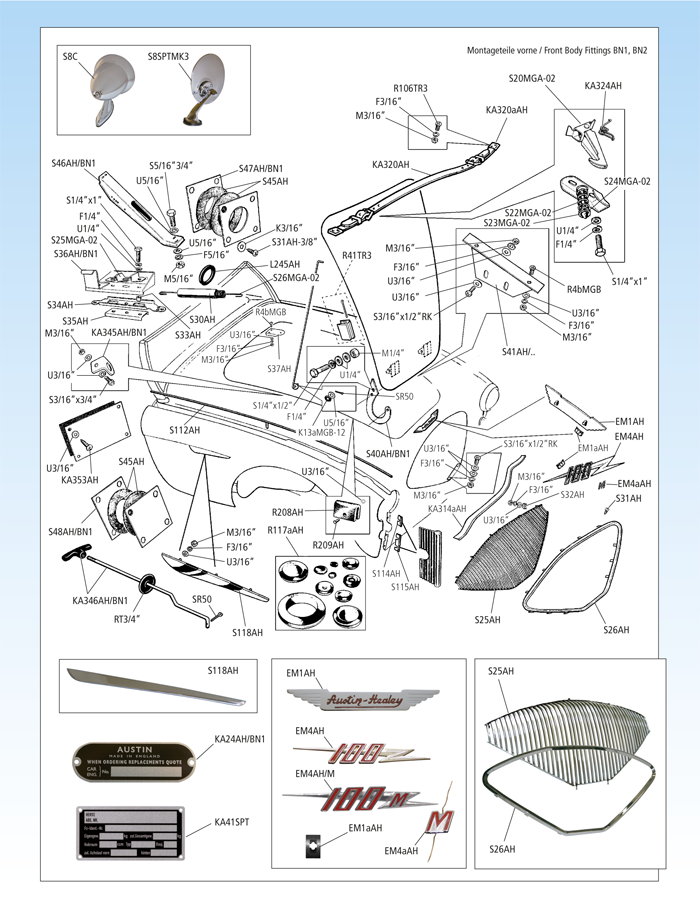

Front Body Fittings 100-4 |
 |
| EM1AH |
front badge
Type: BN1, BN2 required quantities: 1
|
| EM1AAH |
mounting clip
Type: BN1, BN2 required quantities: 2
|
| EM4AH |
front badge -“100“- radiator grille
Type: BN1, BN2 required quantities: 1
|
| EM4AH/M |
front badge -“100/M“- radiator grille
Type: BN1, BN2 “Le Mans“ required quantities: 1
|
| EM4aAH |
use EM4AH/M
Type: BN1, BN2 required quantities: 1
|
| R4BMGB |
countersunk screw 3/16“x5/8“UNF
Type: BN1, BN2 required quantities: 4
|
| S8C |
mirror, racing style
Type: BN1, BN2 required quantities: A/R
|
| S8SPTMK3L |
mirror, round, „Lucas style“ LH
Type: BN1, BN2 required quantities: 1
|
| S8SPTMK3R |
mirror, round, „Lucas style“ RH
Type: BN1, BN2 required quantities: 1
|
| K13AMGB-12 |
ferrule, rubber
Type: BN1, BN2 required quantities: 1
|
| KA24AH/BN1 |
plate, chassis ID
Type: BN1, BN2 required quantities: 1
|
| KA41SPT |
identification plate, blank (german)
Type: BN1, BN2 required quantities: 1
|
| S20MGA-02 |
hook assembly, hood
Type: BN1, BN2 required quantities: 1
|
| S22MGA-02 |
spring, striker pin
Type: BN1, BN2 required quantities: 1
|
| S23MGA-02 |
striker pin
Type: BN1, BN2 required quantities: 1
|
| S24MGA-02 |
cup
Type: BN1, BN2 required quantities: 1
|
| S25AH |
grille
Type: BN1, BN2 required quantities: 1
|
| S25MGA-02 |
plate, guide
Type: BN1, BN2 required quantities: 1
|
| S26AH |
frame, grille
Type: BN1, BN2 required quantities: 1
|
| S26MGA-02 |
spring, tension, hood catch
Type: BN1, BN2 required quantities: 1
|
| S3/16"X1/2"RK |
screw 3/16 x 1 /2“UNF
Type: BN1, BN2 required quantities: 4
|
| S30AH |
sleeve, spring
Type: BN1, BN2 required quantities: 1
|
| S31AH |
screw, plate NO6x1/4“
Type: BN1, BN2 required quantities: 12
|
| S31AH-3/8 |
screw, plate NO6x3/8“
Type: BN1, BN2 required quantities: 16
|
| S32AH |
U-clips
Type: BN1, BN2 required quantities: 5
|
| S33AH |
tube, distance
Type: BN1, BN2 required quantities: 2
|
| S34AH |
slider, hood catch
Type: BN1, BN2 required quantities: 1
|
| S35AH |
slider support assembly
Type: BN1, BN2 required quantities: 1
|
| S36AH/BN1 |
support, hood latch
Type: BN1, BN2 required quantities: 1
|
| S37AH |
retainer, tension spring
Type: BN1, BN2 required quantities: 1
|
| S40AH/BN1 |
arm, hood ringe
Type: BN1, BN2 required quantities: 2
|
| S41AH/100M |
bracket, shroud LH
Type: BN1, BN2 required quantities: 1
|
| S41AH/BN1L |
bracket, shroud LH
Type: BN1, BN2 required quantities: 1
|
| S41AH/BN1R |
bracket, shroud RH
Type: BN1, BN2 required quantities: 1
|
| R41TR3 |
clip, rubber, hood prop rod incl. split pin
Type: BN1, BN2 required quantities: 1
|
| S45AH |
felt, sealing and blanking plates
Type: BN1, BN2 required quantities: 4
|
| S46AH/BN1 |
bracket, steering column
Type: BN1, BN2 required quantities: 1
|
| S47AH/BN1 |
plate, steering column sealing, inner / stainless steel
Type: BN1, BN2 required quantities: 2
|
| S48AH/BN1 |
plate, steering column blanking, outer / stainless steel
Type: BN1, BN2 required quantities: 2
|
| SR50 |
split pin
Type: BN1, BN2 required quantities: 1
|
| R106TR3 |
screw, chrome
Type: BN1, BN2 required quantities: 4
|
| S112AH |
beading, front fender
Type: BN1, BN2 required quantities: 2
|
| S114AH |
beading, upper fender joint
Type: BN1, BN2 required quantities: 2
|
| S115AH |
beading, lower fender joint
Type: BN1, BN2 required quantities: 2
|
| R117AAH |
grommet and plug set, bulkhead
Type: BN1, BN2 required quantities: 1
|
| S118AH/L |
flash LH
Type: BN1, BN2 required quantities: 1
|
| S118AH/R |
flash RH
Type: BN1, BN2 required quantities: 1
|
| R208AH |
buffer, rubber
Type: BN1, BN2 required quantities: 6
|
| R209AH |
rivet, buffer to hood surround
Type: BN1, BN2 required quantities: 6
|
| L245AH |
grommet, bulkhead, steering column
Type: BN1, BN2 required quantities: 2
|
| KA314AAH |
piping front apon
Type: BN1, BN2 required quantities: 1
|
| KA320AAH |
fixing plate set, hood strap
Type: BN1, BN2 required quantities: 1
|
| KA320AH |
strap assembly, hood safety
Type: BN1, BN2 required quantities: 1
|
| KA324AH |
spring
Type: BN1, BN2 required quantities: 1
|
| KA344AH/BN1 |
rod, hood prop
Type: BN1, BN2 required quantities: 1
|
| KA345AH/BN1 |
bracket, pivot, hood prop rod
Type: BN1, BN2 required quantities: 1
|
| KA346AH/BN1 |
bracket incl. knob, hood lock support/rod
Type: BN1, BN2 required quantities: 1
|
| KA353AH |
screw
Type: BN1, BN2 required quantities: 2
|
| RT3/4" |
grommet Ø 19mm
Type: BN1, BN2 required quantities: 1
|
