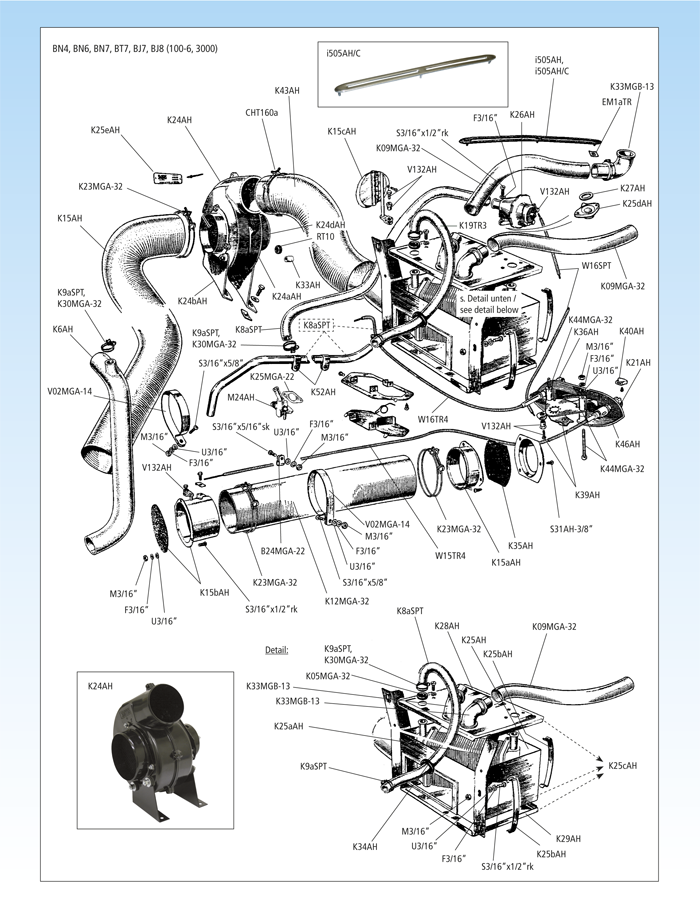

Heater Assembly BN4, BN6, BN7, BT7, BJ7, BJ8 (100-6, 3000) |
 |
| K15cAH |
seal, air inlet
Type: BN4-BJ8 required quantities: 1
|
| K25AH |
heater assembly
Type: BN4-BJ8 required quantities: 1
|
| K25aAH |
radiator
Type: BN4-BJ8 required quantities: 1
|
| K25bAH |
clip, spring
Type: BN4-BJ8 required quantities: 3
|
| K25cAH |
heater unit case, complete
Type: BN4-BJ8 required quantities: 1
|
| K28AH |
heater box, top
Type: BN4-BJ8 required quantities: 1
|
| K29AH |
heater box, bottom
Type: BN4-BJ8 required quantities: 1
|
| S31AH-3/8 |
screw
Type: BN4-BJ8 required quantities: 11
|
| |
Water Pipes and Control Valve |
|
| K05MGA-32 |
grommet, heater box
Type: BN4-BJ8 required quantities: 1
|
| K6AH |
radiator hose bottom
Type: BN4-BJ8 required quantities: 1
|
| K8aSPT |
hose
Type: BN4-BJ8 required quantities: 1+1
|
| K9aSPT |
clip 16-27mm
Type: BN4-BJ8 required quantities: 4
|
| K19TR3 |
heating hose
Type: BN4-BJ8 required quantities: 1
|
| M24AH |
heater control tap (on engine)
Type: BN4-BJ8 required quantities: 1
|
| K25MGA-32 |
gasket
Type: BN4-BJ8 required quantities: 1
|
| K25dAH |
adaptor, heater valve
Type: BN4-BJ8 required quantities: 1
|
| K26AH |
heater control valve
Type: BN4-BJ8 required quantities: 1
|
| K27AH |
O ring
Type: BN4-BJ8 required quantities: 1
|
| K30MGA-32 |
clip 9/16 - 3/4“, wire type
Type: BN4-BJ8 required quantities: 4
|
| K34AH |
grommet, bulkhead
Type: BN4-BJ8 required quantities: 2
|
| K52AH |
pipe, water return
Type: BN4-BJ8 required quantities: 1
|
| |
Cool Air to Heater |
|
| V02MGA-14 |
clamp
Type: BN4-BJ8 required quantities: 2
|
| RT10 |
grommet, blower mounting
Type: BN4-BJ8 required quantities: 4
|
| K15AH |
hose 81cm
Type: BN4-BJ8 required quantities: 1
|
| K23MGA-32 |
clip 4“
Type: BN4-BJ8 required quantities: 3+3
|
| K24AH |
blower assembly
Type: BN4-BJ8 required quantities: 1
|
| K24aAH |
casing
Type: BN4-BJ8 required quantities: 1
|
| K24bAH |
bracket, blower
Type: BN4-BJ8 required quantities: 2
|
| K24dAH |
motor
Type: BN4-BJ8 required quantities: 1
|
| K25eAH |
name plate, SMITHS
Type: BN4-BJ8 required quantities: 1
|
| K33AH |
spacer
Type: BN4-BJ8 required quantities: 4
|
| K43AH |
hose 3 1/4“, blower to heater
Type: BN4-BJ8 required quantities: 1
|
| CHT160a |
clip 3 1/4“, wire type
Type: BN4-BJ8 required quantities: 2
|
| |
Hot Air Outlets |
|
| EM1aTR |
nut, spire
Type: BN4-BJ8 required quantities: 6
|
| K09MGA-32 |
hose defroster
Type: BN4-BJ8 required quantities: 2
|
| K33MGB-13 |
elbow assembly, hot air
Type: BN4-BJ8 required quantities: 4
|
| i505AH |
mask, hot air outlet, defroster
Type: BN4-BJ8 required quantities: 2
|
| i505AH/C |
mask, hot air outlet, defroster, chrome
Type: BN4-BJ8 required quantities: 2
|
| |
Fresh Air System |
|
| K12MGA-32 |
hose 4“
Type: BN4-BJ8 required quantities: 1
|
| K15aAH |
flange, bulkhead, fresh air
Type: BN4-BJ8 required quantities: 1
|
| K15bAH |
intake assembly
Type: BN4-BJ8 required quantities: 1
|
| K35AH |
gauze
Type: BN4-BJ8 required quantities: 1
|
| |
Heater Controls |
|
| W15TR4 |
cable, fresh air control
Type: BN4-BJ8 required quantities: 1
|
| W16TR4 |
cable, heater air inlet control
Type: BN4-BJ8 required quantities: 1
|
| W16SPT |
cable, water valve control
Type: BN4-BJ8 required quantities: 1
|
| K21AH |
knob, fresh air control cable
Type: BN4-BJ8 required quantities: 1
|
| B24MGA-22 |
clip, fresh air control cable
Type: BN4-BJ8 required quantities: 1
|
| K36AH |
knob, heater air control cable
Type: BN4-BJ8 required quantities: 1
|
| K39AH |
control lever assembly
Type: BN4-BJ8 required quantities: 1
|
| K40AH |
knob, levre control
Type: BN4-BJ8 required quantities: 1
|
| K44MGA-32 |
mounting kit, control panel
Type: BN4-BJ8 required quantities: 2
|
| K46AH |
panel, heater control
Type: BN4-BJ8 required quantities: 1
|
| V132AH |
trunnion and screw, cables
Type: BN4-BJ8 required quantities: 4
|
