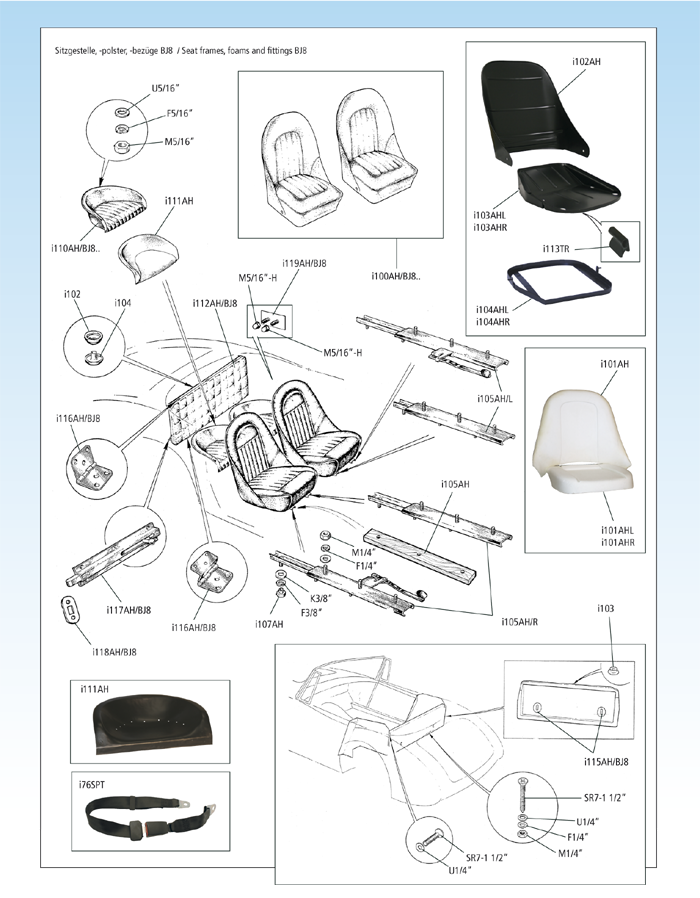

Seat frames, foams and fittings BJ8  |
 |
| i76SPT |
seat belt, static
Type: BJ8 required quantities: 2
|
| i101AH |
foam, seat back
Type: BJ8 required quantities: 2
|
| i101AH/L |
seat foam LH
Type: BJ8 required quantities: 1
|
| i101AH/R |
seat foam RH
Type: BJ8 required quantities: 1
|
| i102AH |
seat back, metal
Type: BJ8 required quantities: 2
|
| i103AHL |
seat base LH
Type: BJ8 required quantities: 1
|
| i103AHR |
seat base RH
Type: BJ8 required quantities: 1
|
| i104AHL |
frame, seat base LH
Type: BJ8 required quantities: 1
|
| i104AHR |
frame, seat base, RH
Type: BJ8 required quantities: 1
|
| i105AH |
packing piece, seat slide
Type: BJ8 required quantities: 4
|
| i105AH/L |
seat slide set (2) (one seat), LH
Type: BJ8 required quantities: 1
|
| i105AH/R |
seat slide set (2) (one seat), RH
Type: BJ8 required quantities: 1
|
| i107AH |
T nut
Type: BJ8 required quantities: 12
|
| i111AH |
seat pan
Type: BJ8 required quantities: 2
|
| i112AH/BJ8 |
back panel, untrimmed
Type: BJ8 required quantities: 1
|
| i115AH/BJ8 |
plate
Type: BJ8 required quantities: 2
|
| i116AH/BJ8 |
hinge set, rear seat
Type: BJ8 required quantities: 1
|
| i117AH/BJ8 |
slide bolt
Type: BJ8 required quantities: 2
|
| i118AH/BJ8 |
escutcheon, for bolt
Type: BJ8 required quantities: 2
|
| i119AH/BJ8 |
seat belt mounting, rear
Type: BJ8 required quantities: 2
|
| i102 |
washer, cup
Type: BJ8 required quantities: 2
|
| i103 |
snap stud
Type: BJ8 required quantities: 2
|
| i104 |
snap assembly, stud
Type: BJ8 required quantities: 2
|
| i113AH |
washer, cup
Type: BJ8 required quantities: 8
|
| M5/16“-H |
dome nut, chrome %/16“UNF
Type: BJ8 required quantities: 4
|
| SR7-1 1/2“ |
countersunk screw
Type: BJ8
|
| i100AH/BJ8 |
front seat upholstery (2) Vinyl black/white
Type: BJ8 required quantities: 1
|
| i100AH/BJ8-L |
front seat upholstery (2) „Leather“ black/white
Type: BJ8 required quantities: 1
|
| i100AH/BJ8-LF |
front seat upholstery (2) „Leather faced“ black/white
Type: BJ8 required quantities: 1
|
| i100AH/BJ8-C |
front seat upholstery (2) „Vinyl“ coloured
Type: BJ8 required quantities: 1
|
| i100AH/BJ8-LC |
front seat upholstery (2) „Leather“ coloured
Type: BJ8 required quantities: 1
|
| i100AH/BJ8-LFC |
front seat upholstery (2) „Leather faced“ coloured
Type: BJ8 required quantities: 1
|
| i110AH/BJ8 |
rear seat upholstery Vinyl, black
Type: BJ8 required quantities: 1
|
| i110AH/BJ8-L |
rear seat upholstery, black „Leather“
Type: BJ8 required quantities: 1
|
| i110AH/BJ8-LF |
rear seat upholstery , black „Leather faced“
Type: BJ8 required quantities: 1
|
| i110AH/BJ8-C |
rear seat upholstery „Vinyl“, coloured
Type: BJ8 required quantities: 1
|
| i110AH/BJ8-LC |
rear seat upholstery „Leather“, coloured
Type: BJ8 required quantities: 1
|
| i110AH/BJ8-LFC |
rear seat upholstery „Leather faced“, coloured
Type: BJ8 required quantities: 1
|
| i113TR |
clip, seat covering to seat frame
Type: BJ8 required quantities: A/R
|
| |

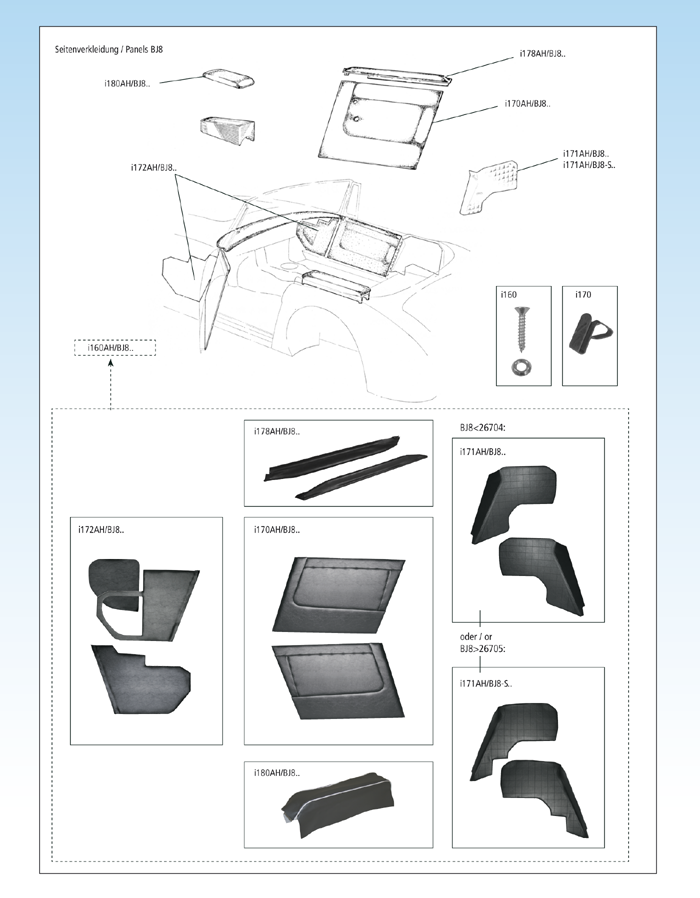

Panels BJ8 |
 |
| i172AH/BJ8 |
footwell panels black, pair „Vinyl“
Type: BJ8 required quantities: 1
|
| i172AH/BJ8-C |
footwell panels coloured, pair „Vinyl“
Type: BJ8 required quantities: 1
|
| i172AH/BJ8-L |
footwell panels black, pair „Leather“
Type: BJ8 required quantities: 1
|
| i172AH/BJ8-LC |
footwell panels coloured, pair „Leather“
Type: BJ8 required quantities: 1
|
| i170AH/BJ8 |
door panels black, pair „Vinyl“
Type: BJ8 required quantities: 1
|
| i170AH/BJ8-C |
door panels coloured, pair „Vinyl“
Type: BJ8 required quantities: 1
|
| i170AH/BJ8-L |
door panels black, pair „Leather“
Type: BJ8 required quantities: 1
|
| i170AH/BJ8-LC |
door panels coloured, pair „Leather“
Type: BJ8 required quantities: 1
|
| i171AH/BJ8 |
rear quarter panels black, pair „Vinyl“
Type: BJ8<26704 required quantities: 1
|
| i171AH/BJ8-C |
rear quarter panels coloured, pair „Vinyl“
Type: BJ8<26704 required quantities: 1
|
| i171AH/BJ8-L |
rear quarter panels black, pair „Leather“
Type: BJ8<26704 required quantities: 1
|
| i171AH/BJ8-LC |
rear quarter panels coloured, pair „Leather“
Type: BJ8<26704 required quantities: 1
|
| i171AH/BJ8-S |
rear quarter panels black, pair „Vinyl“
Type: BJ8>26705 required quantities: 1
|
| i171AH/BJ8-SC |
rear quarter panels coloured, pair „Vinyl“
Type: BJ8>26705 required quantities: 1
|
| i171AH/BJ8-SL |
rear quarter panels black, pair „Leather“
Type: BJ8>26705 required quantities: 1
|
| i171AH/BJ8-SCL |
rear quarter panels coloured, pair „Leather“
Type: BJ8>26705 required quantities: 1
|
| i180AH/BJ8 |
armrest black „Vinyl“
Type: BJ8 required quantities: 1
|
| i180AH/BJ8-C |
armrest coloured „Vinyl“
Type: BJ8 required quantities: 1
|
| i180AH/BJ8-L |
armrest black „Leather“
Type: BJ8 required quantities: 1
|
| i180AH/BJ8-LC |
armrest coloured „Leather“
Type: BJ8 required quantities: 1
|
| i701AH |
armrest, untrimmed
Type: BJ8 required quantities: 1
|
| i178AHBJ8 |
door capping black, pair
Type: BJ8 required quantities: 1
|
| i178AHBJ8-C |
door capping coloured, pair
Type: BJ8 required quantities: 1
|
| |
Interior trim sets |
|
| i160AH/BJ8 |
interior trim set, black „Vinyl“
Type: BJ8<26704 required quantities: 1
|
| i160AH/BJ8-C |
interior trim set, coloured „Vinyl“
Type: BJ8<26704 required quantities: 1
|
| i160AH/BJ8-L |
interior trim set, black „Leather“
Type: BJ8<26704 required quantities: 1
|
| i160AH/BJ8-LC |
interior trim set, coloured „Leather“
Type: BJ8<26704 required quantities: 1
|
| i160AH/BJ8-S |
interior trim set, black „Vinyl“
Type: BJ8>26705 required quantities: 1
|
| i160AH/BJ8-SC |
interior trim set, coloured „Vinyl“
Type: BJ8>26705 required quantities: 1
|
| i160AH/BJ8-SL |
interior trim set, black „Leather“
Type: BJ8>26705 required quantities: 1
|
| i160AH/BJ8-SCL |
interior trim set, coloured „Leather“
Type: BJ8>26705 required quantities: 1
|
| i160 |
screw and rosette
Type: BJ8 required quantities: 20
|
| i170 |
clip, door panel
Type: BJ8 required quantities: 20
|
