Chladící systém


Obj. číslo Popis Ilustrace
klikněte pro zvětšení

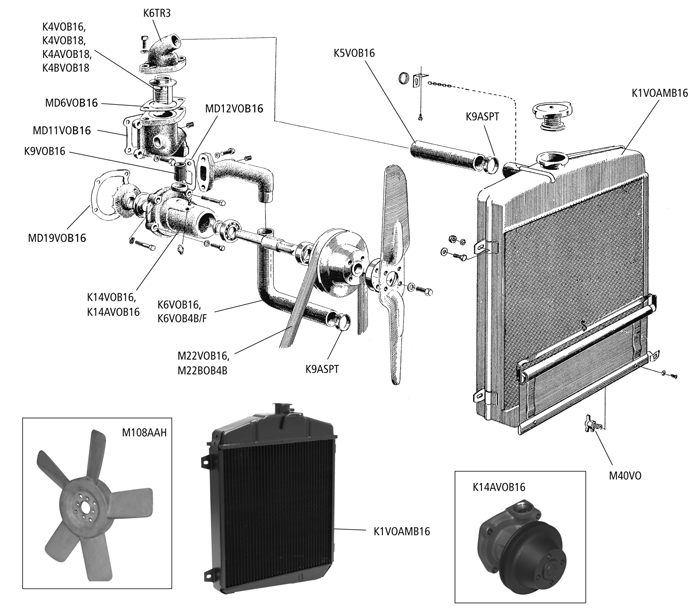

Cooling system PV444, PV544, P210		 FKG_3140110000.png
K1VOAMB16 Radiator, new B16
required quantities: 1
K4VOB16 thermostat 80 °C B4B/B16
required quantities: 1
K4VOB18 thermostat 82 °C
required quantities: 1
K4AVOB18 thermostat 88 °C
required quantities: 1
K4BVOB18 thermostat 77 °C
required quantities: 1
MD6VOB16 Gasket, thermostat
required quantities: 1
MD11VOB16 Gasket, thermostat housing
required quantities: 1
MD12VOB16 Gasket, water stud
required quantities: 1
MD19VOB16 Gasket, water pump B16
required quantities: 1
K5VOB16 Radiator hose top
required quantities: 1
K6VOB16 Radiator hose bottom (255mm)
required quantities: 1
K6VOBB4B/F Radiator hose bottom (350mm) - some very few B4B
required quantities: 1
K6TR3 Radiator cap B16
required quantities: 1
K9ASPT Hose clamp Ø16-27mm
required quantities: 4
K9VOB16 Connecting water pump/housing
required quantities: 1
K14AVOB16 Water pump B16A from Motor No. 69044 90235
required quantities: 1
K14VOB16 Water pump B16
required quantities: 1
M40VO Water plug
required quantities: 1
MD19VOB16 Gasket, water pump B16
required quantities: 1
M22VOB16 Fan belt B16
required quantities: 1
M22BOB4B Fan belt 12 mm, B4B
required quantities: 1
M108AAH Fan 5 blade plastic (replaces the original fan, which is no longer available)
required quantities: 1

May be also used on Volvo P445 with B4B engines up to year of construction 1956. In order to do so, please remove the v-belt pulley of the B4B engine and force it on the old pump as the v-belt pulley of the B4B is wider than the one of the B16 engine. Attention! Diameter of the pump shaft: 16 mm
