Karburátor Stromberg

Obj. číslo	Popis	Ilustrace klikněte pro zvětšení

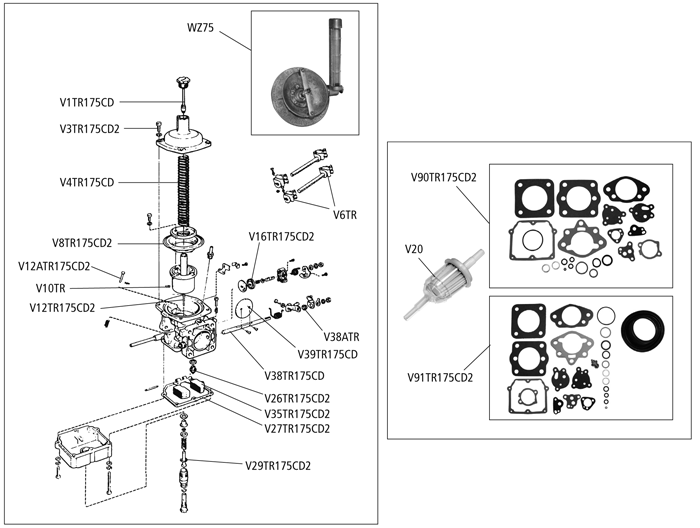

	Carburetter Stromberg
V0TR175CD2/S	Carburetter set, exchange (1 carburetter) required quantities: 1
V0TR175CD2	Carburetter set, exchange required quantities: 1
V1TR175CD	Damper required quantities: 1
V3TR175CD	Coupler required quantities: 3
V4TR175CD	Spring, throttle return required quantities: 1
E5SPT	Screw required quantities: 8
V6TR	Coupling assembly required quantities: 2
V8TR175CD2	Diaphragm required quantities: 1
V10TR	Screw, needle locking required quantities: 2
V12ATR175CD2	Needle adjusting screw required quantities: 2
V12/175CD4F	Needle, 4F required quantities: 0
V12/175CDB1AP	Needle, B1AP required quantities: 0
V16TR175CD2	Diaphragm, bypass valve required quantities: 1
V20	Fuel filter universal for 8mm and 6mm fuel hose required quantities: A/R
V26TR175CD	Jet, float needle required quantities: 1
V27TR175CD2	Gasket, float chamber required quantities: 1
V29TR175CD2	Jet 0.100" required quantities: 1
V35TR175CD2	Float required quantities: 1
V38ATR	Bush, throttle shaft required quantities: 4
V38TR175CD	Throttle shaft required quantities: 1
V39TR175CD	throttle disc required quantities: 1
M66BSPT	Fuel pump, electrical 12V required quantities: 1
V77A	Fuel line 1/4" required quantities: A/R
V77SPT	Fuel hose Ø 6 mm, per meter required quantities: A/R
V70HS	Link rod 1/4" required quantities: 2
V78A	Fuel line Ø 8 mm, per meter required quantities: A/R
V78SPT	Fuel hose Ø 8 mm, per meter required quantities: A/R
V82TR175CD2	Insulating block required quantities: 2
V83TRH6	Gasket required quantities: 2
V84ATR175CD2	Air filter 175CD2 required quantities: 2
V90TR175CD2	Carburetter gasket set (1 carburetter) required quantities: 2
V91TR175CD2	Carburetter rebuilt set (1 carburetter) required quantities: 2
V92TR175CD2	Gasket, air filter to carburetter required quantities: 2
V100VOAM	Fuel pump B18/20 OE: 1336184 required quantities: 1
V105VO	Bush, throttle shaft required quantities: 1
WZ75	Carburettor synchronizer required quantities: A/R
