Zadní osa - diferenciál


Obj. číslo Popis Ilustrace
klikněte pro zvětšení

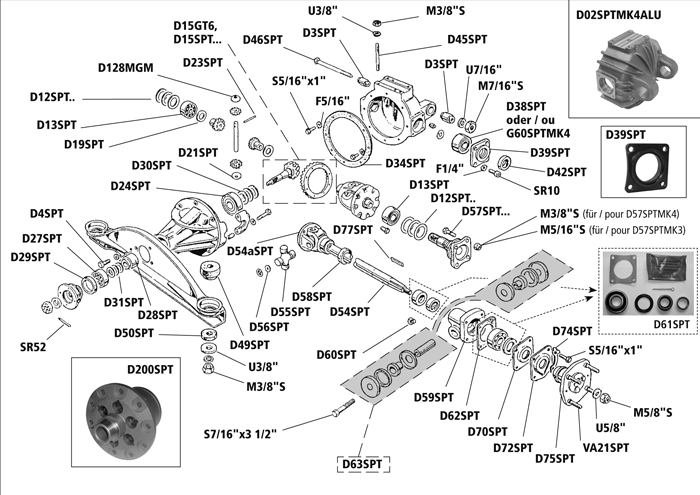

rear axle / differential
D01SPTMK3 exchange -differential 4.11 (Spitf. MK1-3, Herald, Vitesse 1600)
required quantities: 1
D01SPTMK4 exchange -diffrential 3.89 (Spitfire MK4,GT6 with Overdrive-Gearbox, Vitesse 2L)
required quantities: 1
D01SPT1500 exchange-differntial 3,63 (Spitfire 1500)
required quantities: 1
D01GT6 exchange-differential 3,27 (GT6 lll withaut Overdrive-Gearbox)
required quantities: 1
D02SPTMK4ALU cover rear aluminium
required quantities: 1
D3SPT rubber
required quantities: 2
D4SPT bolt mounting plate Differential front
required quantities: 4
SR10 screw 1/4x3/4" UNF
required quantities: 8
D12SPTMK4/.13 shim crownwheel 0.005" / 0,13mm SPT MK4, GT6, Vitesse 2L
required quantities: A/R
D12SPTMK4/.26 shim crownwheel 0.010" / 0,26mm SPT MK4, GT6, Vitesse 2L
required quantities: A/R
D13SPTMK3 bearing, rear pinion 4.11 (Timken-Nr. 15123 + 15245) (*)
required quantities: 2
D13SPTMK4 bearing, rear pinion 3.89, 3.63, 3.27 (Timken-Nr. LM67048 + 67010) (*)
required quantities: 2
D13SPT1500 baering, rear pinion 3.63 (Timken-Nr. L68149 + L68110) (*) (Spitfire 1500 ab FH106101/FM67065, davor = MK4)
required quantities: 2
D15SPTMK3 crown whell & pinion assy 4.11 (Spitfire MK1-3, Herald)
required quantities: 1
D15SPTMK4 crown whell & pinion assy 3.89 (Spitfire MK4, GT6, Vitesse)
required quantities: 1
D15SPT1500 crown whell & pinion assy 3.63 (Spitfire 1500)
required quantities: 1
D15GT6 crown whell & pinion assy 3.27 (GT6 ohne Overdrive)
required quantities: 1
D15SPTRACE4.1 crown whell & pinion assy competition 4.11 (Spitfire, GT6)
required quantities: 1


D15SPTRACE4.5 crown whell & pinion assy competition 4.55 (Spitfire, GT6)
required quantities: 1
D15SPTRACE4.8 crwon whell & pinion competition 4.85 (Spitfire, GT6)
required quantities: 1
D19SPTMK3 distance disk brass (Spitf. MK1-3, Herald, Vitesse 1600)
required quantities: 2
D19SPTMK4 distance disk brass (Spitf. MK4-1500, GT6, Vitesse 2L)
required quantities: 2
VA21SPT stud steel wheels
required quantities: 8
D21SPT/52 shim adjusting 0.052"/1.32mm
required quantities: A/R
D21SPT/56 shim adjusting 0.056"/1.433mm
required quantities: A/R
D21SPT/60 shim adjusting 0.060"/1.53mm
required quantities: A/R
D21SPTMK4/89 shim, adjusting 0.035"/ 0.89mm (Spitf. MK4, GT6, Vitesse 2L)
required quantities: A/R
D21SPTMK4/105 shim, adjusting 0.041"/ 1.05mm (Spitf. MK4, GT6, Vitesse 2L)
required quantities: A/R
D23SPT cross pin differential
required quantities: 1
D24SPTMK3 bearing, rear pinion 4.11
required quantities: 1
D24SPTMK4 bearing, rear pinion (Spitfire MK4-1500, GT6, Vitesse 2L)
required quantities: 1
D27SPTMK3 bearing pinion, flange end (Spitf. MK1-3, Herald, Vitesse 1600)
required quantities: 1
D27SPTMK4 bearing pinion, flange end (Spitf. MK4-1500, GT6, Vitesse 2L)
required quantities: 1
D28SPTMK4 solid bearing spacer
required quantities: 1
D28SPT1500 solid bearing spacer
required quantities: 1
D29SPTMK3 seal, pinion flange (Spitf. MK1-3, Herald, Vitesse 1600)
required quantities: 1
D29SPTMK4 seal, pinion flange (Spitf. MK4-1500, GT6, Vitesse 2L)
required quantities: 1
D31SPTMK4/.08 shim adjusting 0.003"/0.08mm
required quantities: A/R
D31SPTMK4/.10 shim adjusting 0.10mm
required quantities: A/R
D31SPTMK4/.13 shim adjusting 0.005"/0.13mm
required quantities: A/R
D31SPTMK4/.20 shim adjusting 0.010"/0.26mm
required quantities: A/R
D31SPTMK4/.30 shim adjusting 0.011"/0.30mm
required quantities: A/R
D31SPTMK4/.50 shim adjusting 0.020"/0.50mm
required quantities: A/R
D31SPTMK4/.76 shim adjusting 0.030"/0.76mm
required quantities: A/R
VA31SPT bush rubber rear radius arm (Spitfire, Herald, GT6, Vitesse)
required quantities: 4
D34SPT gasket sealing casings
required quantities: 1
D38SPTMK4 bearing outlet
required quantities: 2
D39SPT retainer, seal to bearing (OE Nr: 139530)
Type: Spitfire, GT6, Herald, Vitesse required quantities: 2
D42SPT seal, output shaft to differential casing
required quantities: 2
D45SPTMK3 stud rear spring (Spitfire MK1-3, Herald, GT6, Vitesse)
required quantities: 4
D45SPT stud rear spring (Spitfire MK4-1500, GT6 MK3 nicht Rotoflex)
required quantities: 4
D46SPT bolt, rear differential mounting (Spitfire, GT6)
required quantities: 1
D49SPT mounting rubber, front upper
required quantities: 2
D49H mounting rubber, front upper (Herald MK1)
required quantities: 2
D50SPT mounting rubber, front lower
required quantities: 2
SR52 split pin 3,2 mm
required quantities: 2
D54SPTMK3 driveshaft & yoke (Spitfire MK1-4, Herald, Vitesse, GT6 MK1)
required quantities: 2
D54aSPTMK3 flange, drive shaft, 5/16” Bolt
required quantities: 2
D54SPT1500 driveshaft & yoke (Spitfire MK4 ab FH50001, GT6 MK3)
required quantities: 2
D54aSPTMK4 flange, drive shaft, 3/8” Bolt
required quantities: 2
D55SPT Universal joint
required quantities: 2
D55aSPT Universal joint, regreasable
required quantities: 2
D56SPT adjusting shim 0,3 mm axial play
required quantities: 8
D57SPTMK3 Bolt, drive shaft 5/16” OE: 129361K
required quantities: 8
D57SPTMK4 bolt, brake disc OE:132023K or 144961A
required quantities: 8
D58SPT dust cover
required quantities: 2
D59SPT housing , wheel bearing
required quantities: 2
D59S housing , wheel bearing, aluminium
required quantities: 2
D60SPT grease nipple 3/8”
required quantities: A/R
G60SPTMK4 bearing rear (Spitfire MK4-1500, GT6 MK3)
required quantities: 2
D61SPT wheel bearing kit (D61/62/68/69/71SPT)
required quantities: 2
D63SPT bush kit
required quantities: 2
D70SPT mounting plate oil seal, second hand
required quantities: 2
D72SPT shield, retaining grease
required quantities: 2
D74SPT lock plate
required quantities: 2
D75SPT flange
required quantities: 2
D75aSPT flange, second hand
required quantities: 2
D77SPT key
required quantities: 1
D128MGM shim, adusting (Spitfire MK1-3, Herald, Vitesse 1600)
required quantities: A/R
D200SPT limited slip differential
required quantities: 1
D200aSPT limited slip differential
required quantities: 1
GE hypoid Gearbox-/ Differential oil SAE80W90
required quantities: A/R

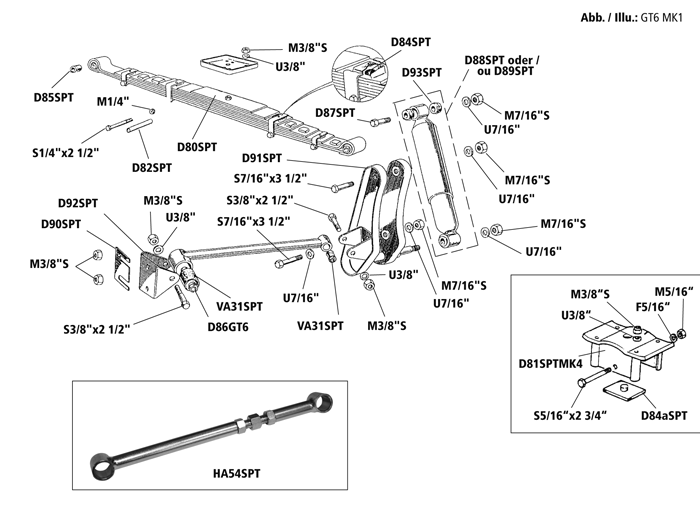

rear axle
HA54SPTMK3 radius arm adjuster (Spitfire MK1-4,MK4 < FH25000)
required quantities: 2
HA54SPT1500 radius arm adjuster (Spitfire MK4 > FH25001, Spitf. 1500, GT6 MK3 not Rotorflex)
required quantities: 2
D80SPTMK3 Plate spring (Spitfire MK1-3)
required quantities: 1
D80SPTMK4 Plate spring (Spitfire MK4/1500, GT6 MK3 -not rotoflex)
required quantities: 1
D80H Plate spring (Herald, Vitesse 1600/2L MK2)
required quantities: 1
D81SPTMK4 mounting box plate spring (Spitfire MK4/1500, GT6 MK3 not rotoflex)
required quantities: 1
D82SPT spacer plate spring
required quantities: 1
D84SPT Rubber for plate spring
required quantities: 4
D84aSPT Rubber for plate spring, mitte
required quantities: 1
D85SPT silent rubber, plate spring außen
required quantities: 2
D86GT6 Silentbush in radius arm (GT6 front - not Rotoflex)
required quantities: 2
D87SPT mountig srew for schock absorber OE: 118599K
required quantities: 2
D88SPT use D88SPT/P shock absorber MONROE reinforced
required quantities: 2
D88SPT/P shock absorber Premium/Komfort
required quantities: 2
D89SPT shock absorber KONI red, adjustabler, with Life-Time Garantie
required quantities: 2
D90SPT shim, pivot bracket to chassis
required quantities: A/R
D91SPTL vertical link, second hand, LH
required quantities: 1
D91SPTR vertical link, second hand, LH
required quantities: 1
D92SPTMK3L pivot bracket, LH (Spitfire MK1-4, GT6 MK1)
required quantities: 1
D92SPTMK3R pivot bracket, RH (Spitfire MK1-4, GT6 MK1)
required quantities: 1
D92SPT1500L pivot bracket, LH (Spitfire MK4 ab FH 50001, GT6 MK3)
required quantities: 1
D92SPT1500R pivot bracket, RH (Spitfire MK4 ab FH 50001, GT6 MK3)
required quantities: 1
D93SPT Bushing in shock absorber (2x necessary)
required quantities: 2

3 years guarantee on all mechanical rear axle parts. Please look at the remarks about our exchange rear axles
