Karburátor SU


Obj. číslo Popis Ilustrace
klikněte pro zvětšení

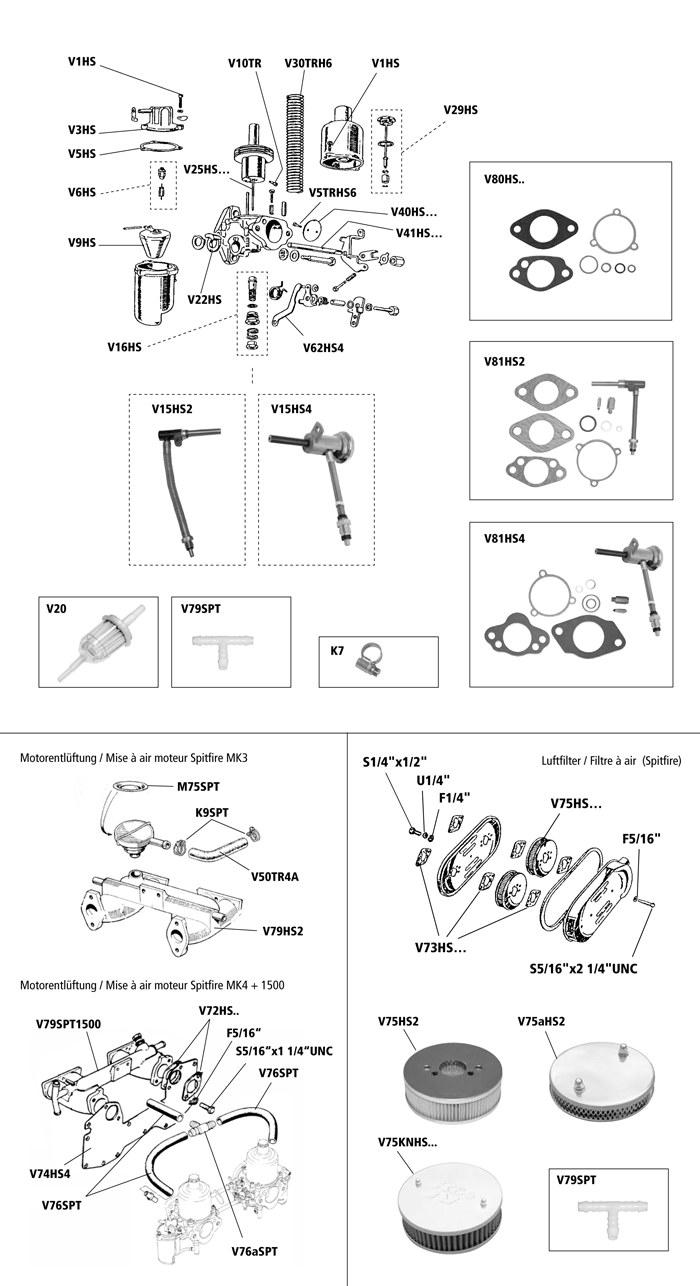

SU-carburettor
V0HS2 exchange carburetter assembly (both carbs) (Spitf. MK1-4) **) 80017
required quantities: 1
V0HS4 exchange carburetter assembly (both carbs)(Spitfire 1500) **) 80017
required quantities: 1
V1HS screw, chamber to body
required quantities: 6
V3HS float chamber
required quantities: 2
V5HS gasket, float chamber lid
required quantities: 2
V5TRHS6 screw, throttle disc
required quantities: 4
V6HS Jet, float needle
required quantities: 2
V9HS float
required quantities: 2
K7 Clip wire type 8-12 mm
required quantities: A/R
K9SPT Hose clamp Ø 12-20 mm
required quantities: A/R
V10TR screw, needle locking
required quantities: 2
V15HS2L jet bearing LH (Spitf. MK1-4/1300, Herald 1200-12/50, HS4 early models)
required quantities: 1
V15HS2R jet bearing LH (Spitf. MK1-4/1300, Herald 1200-12/50, HS4 early models)
required quantities: 1
V15HS4L jet bearing LH (Spitfire 1500 late, HS4 (WAX))
required quantities: 1
V15HS4R jet bearing RH (Spitfire 1500 late, HS4 (WAX))
required quantities: 1
V16HS Lift and spring assembly
required quantities: 2
V20 Fuel filter universal for 8mm and 6mm fuel hose
required quantities: 1
V22HSL float chamber gasket LH
required quantities: 1
V22HSR float chamber gasket RH
required quantities: 1
V25HS2AN Needle "AN" (Spitfire MK1-2, HS2)
required quantities: 2
V25HS2BO Needle "BO" (Spitfire MK3, HS2)
required quantities: 2
V25HS2AAN Needle "AAN" (Spitfire MK4/1300, HS2)
required quantities: 2
V25HS4ABT Needle "ABT" (Spitfire 1500, HS4)
required quantities: 2
V25HS4ADN Needle "ADN" (Spitfire 1500, HS4)
required quantities: 2
V29HS damper
required quantities: 2
V30TRH6 damper spring SU H6/ HS6 red
required quantities: 2
V38aTR bush, throttle shaft
required quantities: 4
V40HS2 Throttle disc (Spitfire MK1-4, HS2)
required quantities: 2
V40HS4 Throttle disc (Spitfire 1500, HS4)
required quantities: 2
V41HS2 throttle shaft (Spitfire MK1-4, HS2)
required quantities: 2
V41HS4 Throttle spindle
required quantities: 2
V41aHS2 bush throttle shaft (HS2)
required quantities: 4
V50TR4A hose, rocker cover to valve
required quantities: 1
V62LHS4 choke assembly LH (Spitfire 1500 early, HS4)
required quantities: 1
V62RHS4 choke assembly RH (Spitfire 1500 early, HS4)
required quantities: 1
V70HS ball joint 1/4”
required quantities: 2
V71HS carburetter spring throttle return
required quantities: 2
V80HS2 Carburettor gasket set - 1 carburettor (Spitfire MK1-4, HS2)
required quantities: 2
V80HS4 Carburettor gasket set - 1 carburettor (Spitfire 1500, HS4)
required quantities: 2
V81HS2L repair lit, for 1 carburetter (LH), (Spitfire MK1-4, HS2)
required quantities: 1
V81HS2R repair lit, for 1 carburetter (RH), (Spitfire MK1-4, HS2)
required quantities: 1
V81HS4L repair lit, 1 carburetter, incudes jet bearing V15HS4 (LH) (Spitf. 1500 late, HS4) 80012
required quantities: 1
V81HS4R repair lit, 1 carburetter, incudes jet bearing V15HS4 (RH) (Spitf. 1500 late, HS4) 80012
required quantities: 1
V81aHS4L repair lit, 1 carburetter, incudes jet bearing V15HS2 (LH) (Spitf. 1500 early, HS4) 80012
required quantities: 1
V81aHS4R repair lit, 1 carburetter, incudes jet bearing V15HS2 (RH) (Spitf. 1500 early, HS4) 80012
required quantities: 1
S5/16"x1/2"U Bolt 5/16"x1/2" UNC
required quantities: 4
SU-VÖ Oil, SU carburettors, 150 ml
required quantities: A/R
V72HS2 Gasket inlet manifold (Spitfire MK1-4, HS2)
required quantities: 4
V72aHS2 insulating block HS2-Vergaser (o. Abb.)
required quantities: 2
V72HS4 Gasket inlet manifold (Spitfire 1500, HS4)
required quantities: 4
V73HS2 Gasket air filter (Spitfire MK1-4, HS2)
required quantities: 6
V73HS4 Gasket air filter (Spitfire 1500, HS4)
required quantities: 6
V74HS4 Heatshield (Spitfire 1500, HS4)
required quantities: 1
V75HS2 air filter (Spitfire MK1-4, HS2)
required quantities: 2
V75HS4 air filter (Spitfire 1500, HS4)
required quantities: 2
V75aHS2 Chrome air filter (Spitfire MK1-4, HS2)
required quantities: 2
V75aHS4 Chrome air filter (Spitfire 1500, HS4)
required quantities: 2
V75KNHS2 K+N sport air filter (Spitfire MK1-4, HS2, 45 mm)
required quantities: 2
V75KNHS4 K+N sport air filter (Spitfire 1500, HS4, 45 mm )
required quantities: 2
M75SPT diaphragm breather valve
required quantities: 2
V76SPT crankcase vent hose, set (Spitfire MK4-1500)
required quantities: 1
V76aSPT Y-piece breather
required quantities: 1
V77SPT fuel hose Ø 6 mm, per meter
required quantities: A/R
V78SPT fuel hose Ø 8 mm, per meter
required quantities: A/R
V79SPT T-piece for fuel hose/8 mm
required quantities: 1
V79HS2 exchange inlet manifold (Spitfire MK1-4, HS2) **) 80017
required quantities: 1
V79SPT1500 Inlet manifold (Spitfire 1500)
required quantities: 1

(**) exchange parts must be delivered in comlete and clean condition
(*) carburettor repair kit (one carburettor) = Jet, needle valve and seat kit, gasket kit
